Place of Origin: | China |
نام تجاری: | Perkins EST Adapter |
گواهی: | CE |
Model Number: | Perkins EST |
Minimum Order Quantity: | 1set |
---|---|
قیمت: | Negotiable |
Packaging Details: | Packed in plastic box firstly, and then reinforced with carton case for outer packing |
Delivery Time: | 3 working days after received your payment |
Payment Terms: | T/T or western Union or Paypal |
Supply Ability: | 3,000pcs per month |
Product Name: | Perkins EST diagnostic Tools | Application: | Toyota trucks |
---|---|---|---|
Item Type: | Heavy Duty Code reader & scan tool | Diagnostic Type: | PC version |
Operating System: | Windows XP / Win 7 | PC port: | USB |
Support engine: | Perkins 2300 / 2800 | Warranty: | 1 year |
برجسته: | professional automotive diagnostic tools,truck diagnostic tools,truck diagnostic tools |

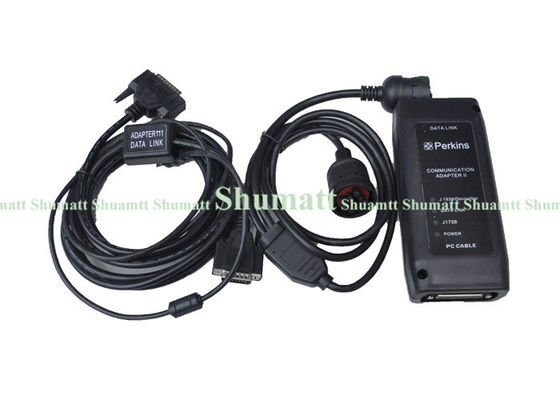

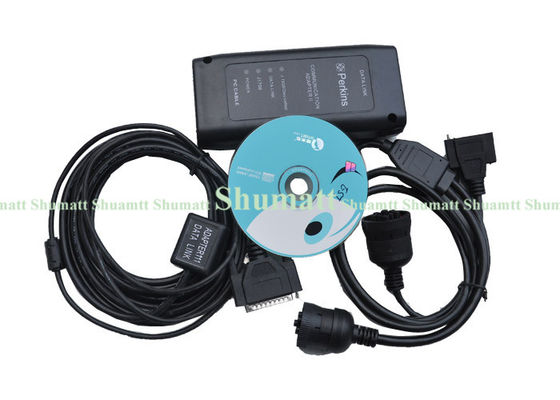

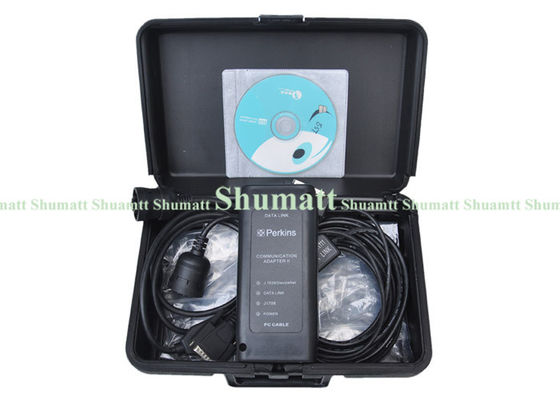

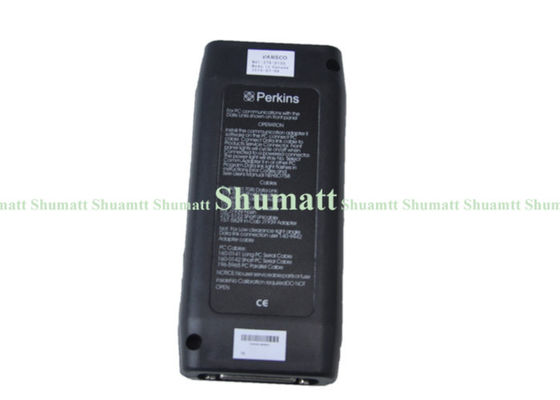

Perkins Est Diagnosis Adapter Professional Diagnostic Tools For 24v Trucks
Specifications:
1. EST is comprised of a hardware and software (The Integrated Parts and Service System or "TIPSS") interface kit, which a user can use to communicate with Perkins 2300/2800 electronic engines (FG Wilson 300 750 KVA range) and FG Wilson Power wizard control panels.
2. This communication is established via a J1939 data link. All in all, the EST interface kit provides the user with an effective tool in diagnosing engine problems and the ability of configuring system parameters.
Description:
Parameters of Perkins diagnosis machine
Type: | heavy duty diagnostic tool | Voltage: | standard |
Applicable Models: | Toyota | Power: | standard |
Model Number: | EST | Diagnostic models: | Auto 24v heavy duty diagnostic Tools |
Weight: | 2.5KG | Test speed: | Quick access to vehicle data |
Diagnostic type: | PC version | Support system: | windows xp &windows 7 |
Feature Products
EST is comprised of a hardware and software (The Integrated Parts and Service System or "TIPSS")
EST enables the user to:
Override Power wizard level three passwords
Configure and/or change system parameters
Display, graph and record logs of parameter status
Display the status of a group of parameters (temperatures, pressures, etc)
View and clear active and logged diagnostic codes
View and clear active and logged event codes
Display, view or change the current Configuration File or Base level Flash File
Upload, download and save configuration files
View a list of irregularities logged by the ECM (engine control module)
Perform diagnostic tests
Perform calibrations
Print reports and diagnostic results.
Why should an FG Wilson dealer invest in the Electronic Service Tool?
It provides the technician with an essential tool by facilitating the troubleshooting of electronic engines. As a matter of opinion, troubleshooting an electronic engine without EST is like troubleshooting an electrical panel without a millimeter Alex Caprices FGW Latin America & Caribbean Service Advisor
Essential in replacing an ECM on a Perkins 2300/2800 series engine. A blank ECM can only be configured using EST.
Essential in replacing or retrofitting an FG Wilson Power wizard control panel module - the new standard in FG Wilson control systems. A blank module can only be configured using EST (installing the base flash file into a blank Power wizard module).
Enables the dealer to upload, download and save customer configuration files.
Allows bypassing Power wizard level three passwords.
Enables dealers to update the software versions of customers Power wizard control panels, as required. New software releases can enhance the control panels functionality.
Enables dealers to install additional Power wizard language files, as required.
What special tools or equipment do I need?
You will need a laptop computer with either a USB or serial port and Windows 2000 or XP. Please keep in mind that EST is fairly demanding on the CPU; hence, the slower the processor, the slower the program will run.
