30W - 50W Isolation Constant Current LED Driver High PF 0.95 , 85V - 265V AC
جزئیات محصول:
Place of Origin: CHINA
نام تجاری: EMITTRON
گواهی: CE,ROHS
Model Number: SMDA-3050-PF
پرداخت:
Minimum Order Quantity: 100pcs/Carton
Packaging Details: 1250*240*240mm 8kg 25pcs/ctn
Delivery Time: 5-10 days
Payment Terms: T/T,Paypal,Western Union,L/C
Supply Ability: 100000PCS/Month
مخاطب
توضیحات محصول جزئیات
Features: high PF, high efficiency, High voltage start, Isolated power supply Application: LED Lighting
certification: CE, RoHS Input frequency: 47Hz - 63Hz
Input voltage: 85V - 265V AC Maximum current: 1.5A
Output power: 30W - 50W Output voltage: 20V - 45V DC
Power factor: 0.95 Product Name: Constant Current LED Driver
برجسته:

led constant current drivers,led constant current driver

,

led constant current driver

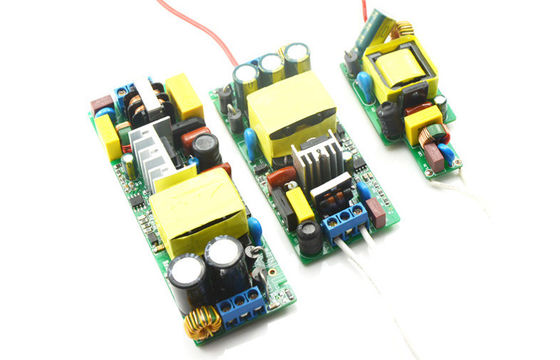

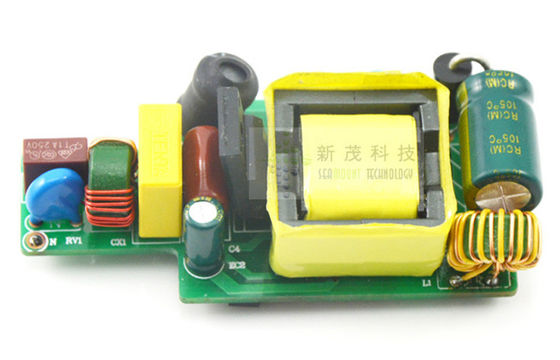

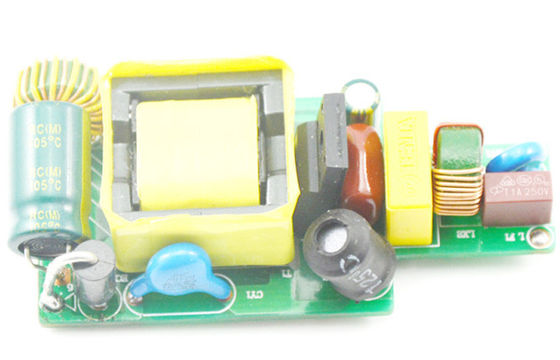

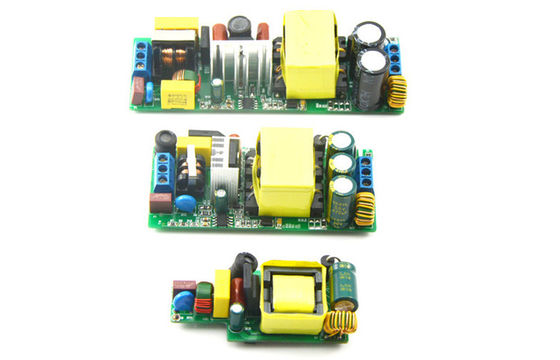

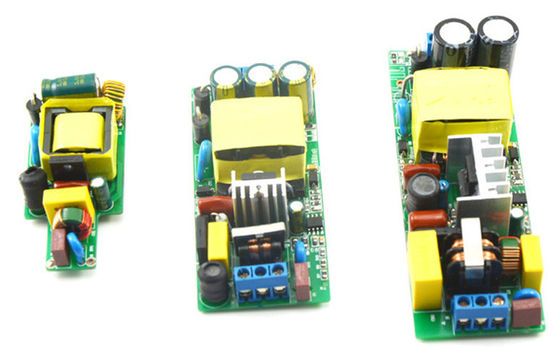

 30W - 50W Isolation Constant Current LED Driver High PF 0.95 , 85V - 265V AC

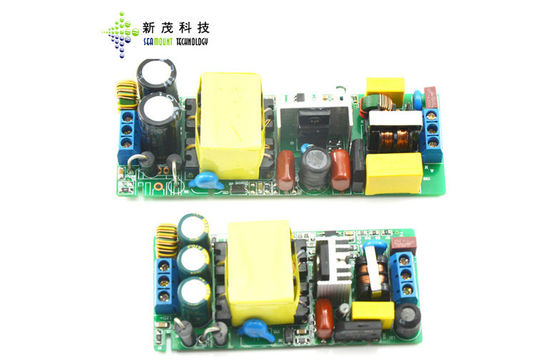

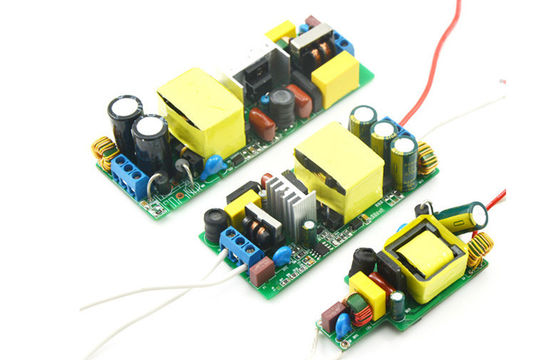

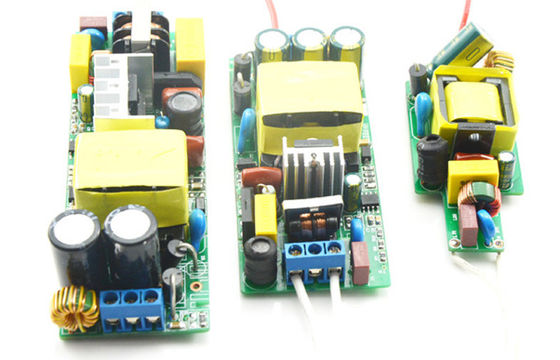

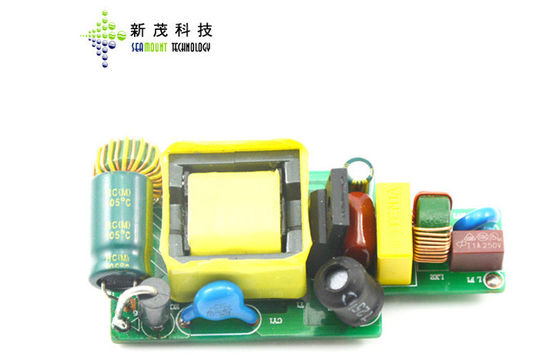

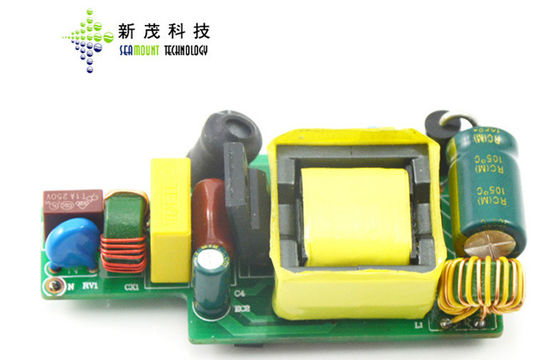

30-50W isolation type constant current LED driver



  • Part Number: SMDA-3050-PF
  • Brand Name:SEAMOUNT
  • Product description:30-50W isolation type constant current LED driver power supply
  • Output power: 30-50W
  • Input voltage: 85 ~ 265V AC
  • Input frequency: 47 Hz ~ 63 Hz
  • Power factor>0.95
  • Output voltage: 20 ~ 45 VDC
  • Maximum current: 1.5A
  • Maximum output power: 50 w
  • Conversion efficiency> 89%
  • Constant current precision:±3%
  • Ripple and noise (P - P) ≤5%
  • Temperature coefficient: ±0.2%/℃




Product features:



  • High voltage start, no delay, no flicker
  • Low ripple, start quickly, high PF, high efficiency
  • Over temperature protection, over-voltage protection, overload protection, short circuit protection
  • Isolated power supply, safe and reliable, two years warranty
  • CE, RoHS certification




Electrical properties:



Input voltage:

85 ~ 265V AC

Input frequency:

47 Hz ~ 63 Hz

Power factor

>0.95

Output voltage:

20 ~ 45 VDC

Maximum current:

1.5A

Maximum output power:

50 w

Conversion efficiency

> 89%

Constant current precision:

±3%

Ripple and noise (P - P)

≤5%

Temperature coefficient:

±0.2%/℃





Protection features:



  • Output no-load voltage≤60V
  • Short circuit protection
  • Over temperature protection
  • Over voltage protection
  • Overload protection




Electromagnetic interference:



  • Conducted interference degree: EN55015, CLASS B
  • Radiated interference degree: EN55015, CLASS B




Environmental conditions:



  • Working temperature: 10 ℃ ~ + 45 ℃ typical values (25 ℃)
  • Storage temperature: -20℃~+70℃ typical values (25 ℃)
  • Relative humidity: 5~95%
  • Atmospheric pressure: 70-106 KPa




Certification&life:

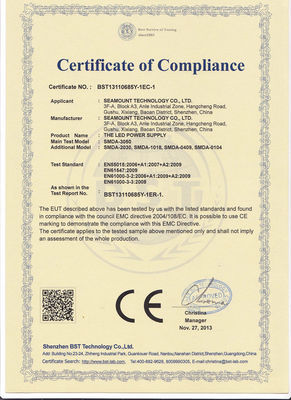

  • EMC:BST13110685Y-1EC-1

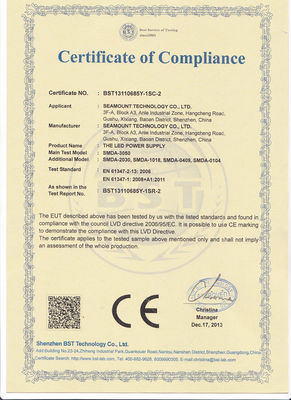

  • LVD:BST13110685Y-1SC-2

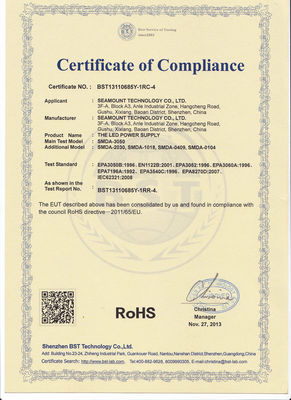

  • RoHS:BST13110685Y-1RC-4
  • Life: 50,000 hours long life design




Product packaging/size /weight/ quantity:



  • Driver size/weight: 109mm*39mm*23mm

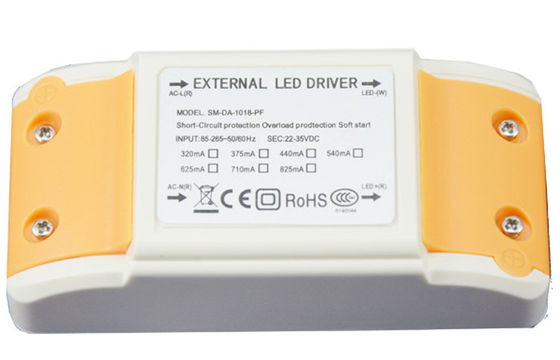

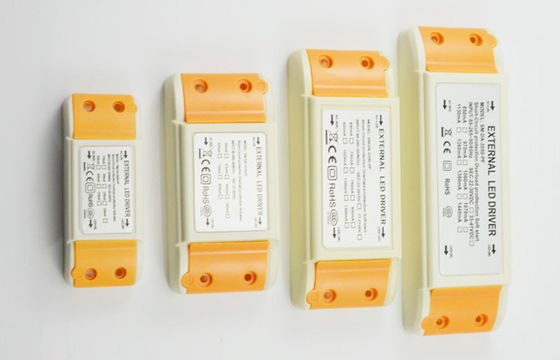

  • External driver size/weight: 140mm*45mm*28mm
  • Driver packing size/weight/quantity:
  • External driver packing size/weight/quantity:





Application:



  • Widely used in 30-50W LED Lighting.
