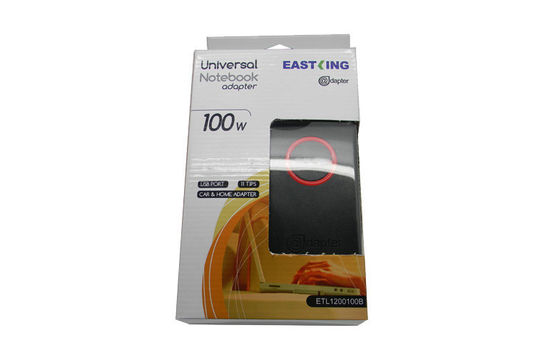

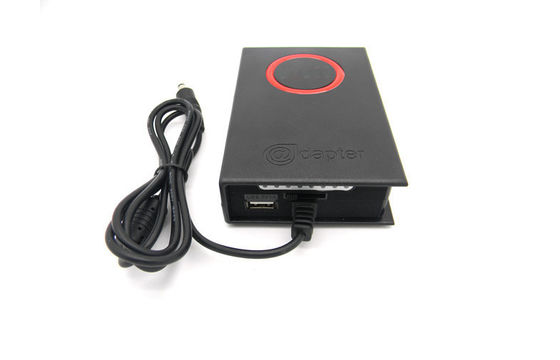

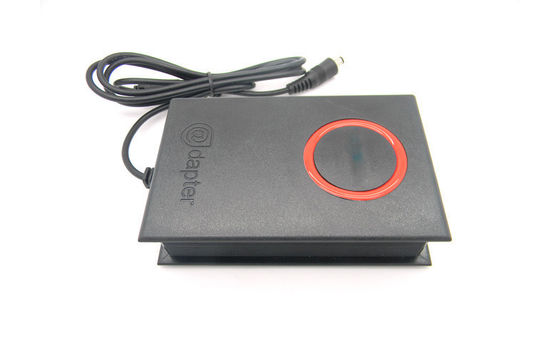

Automatic Universal Laptop Power Adapter , 100W Notebook Switching Power Supply

Automatic Universal Laptop Power Adapter , 100W Notebook Switching Power Supply

  • Automatic Universal Laptop Power Adapter , 100W Notebook Switching Power Supply
  • Automatic Universal Laptop Power Adapter , 100W Notebook Switching Power Supply
  • Automatic Universal Laptop Power Adapter , 100W Notebook Switching Power Supply
  • Automatic Universal Laptop Power Adapter , 100W Notebook Switching Power Supply
Automatic Universal Laptop Power Adapter , 100W Notebook Switching Power Supply
جزئیات محصول:
Place of Origin: Shenzhen,China
نام تجاری: RAYTOP
گواهی: CE, RoHS, FCC
Model Number: ETL1200100B
پرداخت:
Minimum Order Quantity: 2K
قیمت: Negotiable
Packaging Details: Color box or blister, 20 pieces per master carton.
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 50000 Pcs monthly.
مخاطب
توضیحات محصول جزئیات
AC Cable: 1.2M Application: Delta, HP, IBM, Gateway, Liteon
Approval: CE, RoHS, FCC, UL DC Cable: 1.2M
EMI Standards: FCC Part 15B Function: Automatic
Output Power: 100W Plug: US
Protection: Short Circuit, Over Voltage, Over Current Operating Temperature: 0~40℃
برجسته:

universal notebook power adapter,universal laptop power supply

,

universal laptop power supply



Automatic Universal Laptop Power Adapter , 100W Notebook Switching Power Supply





Quick Detail:

Place of Origin: Shenzhen, China

Brand Name: Raytop

Usage: Notebook/Netbook

AC Input: 100-240V, 50/60Hz, 1.8Amp.

Output: DC12/15/16/18/19/20/22/24V

USB Port: 5V,1.0A

Power Cord:

AC Cable: 2x0.75mm2, or 3x0.75mm2 length: 1.2M

DC Cable: 18AWG, Copper, length: 1.2M

Condition: All new products, 100% burn-in test.

Product Type: Universal AC Adapter

Power:100W

Color: Black.



Specifications:

9 Tip Compatibility List:

6.5x4.4mm

DELL, SONY, FUJITU, SAMSUNG, PANASONIC

6.3x3.0mm

NEC, AT&T,IBM,TOSHIBA,SAMSUNG

5.5x2.5mm

HP,NEC,IBM,DELL,LG,ACER,TOSHIBA,GATEWAY,FUJITU,SHARP,COMPAQ

5.5X2.1mm

IBM,DELL,ACER,SHARP,HITACHI

5.5x1.7mm

HP,ACER,FUJITU,GATEWAY

4.8x1.7mm

HP,LG,ASUS,GATEWAY,COMPAQ

5.5x3.0mm

LG,SAMSUNG

7.4x5.0mm

HP,DELL

7.9x5.5mm

DELL,IBM-LENOVO

4.0x1.7mm

NOKIA, HP MINI

2.5X0.7mm

ASUS, NETBOOKS

Datasheet:

Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

1.8A

Inrush Current

30A

Output

Rated Output Voltage

DC12-24V

Output Voltage

DC12/15/16/18/19/20/22/24V

Rated Output Current

4.0A

USB Port

5V,1.0A

Rated Power

100W

Ripple and Noise

100mV p-p

Standby Power Consumption

0.3W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 4 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC.

Warranty

2 Years

Contents

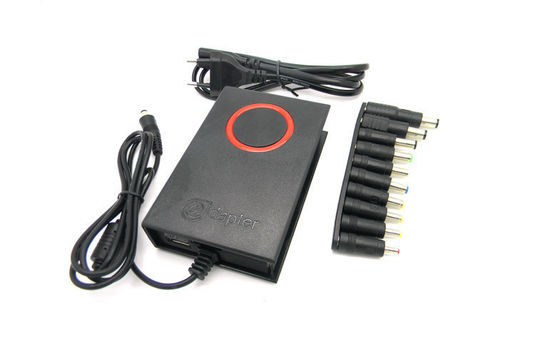

1Adapter + 1AC Cable+1DC Cable +11 Connectors







































































































Applications:

External power supply, used to charge most top brand laptops/notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. It can also charge personal devices like smart phones, tablet, iPhone 4g/4s, iPhone 5g/5s, iPad, iPod and so on simultaneously when using your laptops.



Competitive Advantage:

-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man.

-High performance-to-price ratio;

-Perfect after-sale service
