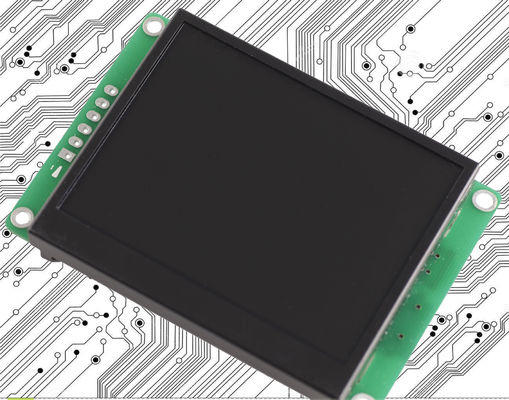

Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface

Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface

  • Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface
Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface
جزئیات محصول:
Place of Origin: CN
نام تجاری: stone
گواهی: CE Certificate ,FCC Certificate,RoHS Certificate ,ISO9001:2008
Model Number: STA151WT-01
پرداخت:
Minimum Order Quantity: 2kg
Packaging Details: box/carton
Delivery Time: 5-15days
Payment Terms: T/T, Western Union,Paypal
مخاطب
توضیحات محصول جزئیات
display scale: 4:3 Size (Inch): 15.1 inch
Resolution: 1024*768 VOLTAGE: DC5.0V ~ 20V
brightness: 500 cd/m² interface: RS232/RS485/TTL
برجسته:

industrial lcd display, rs232 lcd display

,

rs232 lcd display

Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface





Product Description
1. Controlled by Any MCU via simple "Command Sets"
2. Used as Touch-screeen controller & TFT-LCD display system
3. 3 easy software to help you run our product.

Working Principle
The TFT-LCD Module communicates with the main controller via the command, then the main controller would control the machine to work after receiving the commands.


Please note: The Main controller can be designed by engineer with Any MCU.

Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface 0

 Software Description


1. Design a group of Beautiful "Graphical User Interface" that you need.

2. Connect your equipment with our TFT-LCD Module by RS232, RS485 port or TTL Logic directly, plug

and play.

3. Write a simple program for the MCU to control the TFT-LCD Module via powerful "Command Sets"

(HEX Code).

That's all. Saving much development Time and Cost for Engineer.



For example: Image Command 0x70.

Send: “0xAA+0x70+ Pic_ID + 0xCC 0x33 0xC3 0x3C”



Introduction

Example

Note

AA

Frame head



Frame head of one Command

0x70

Command Code





Pic_ID

Sequence number of

 the current picture

0x00 0x01

Show Picture - 01

CC 33 C3 3C

Frame end



Frame end of one Command



We would offer a simple Toolbox to help you to work with TFT-LCD Module on PC.

1. Assistant function: show how to send the Command Set to control the TFT display.

2. Download function: Download the images and configuration files into TFT Module

3. Touch Control function: Define many buttons on the User Interface, then create a touch configuration

file.

4. Font software: Create the font configuration file.


Product Parameter



Model: STA151WT-01 (Advanced Type)



Physical Parameter

 Model

 STA151WT-01

 Size (Inch)

 15.1"

 Resolution

 1024×RGB×768

 Pixel Spacing

 0.1905 mm × 0.0635 mm(H×V)

 Color

 65536 colors (16 bit)

 Viewing Area

 304.1 mm × 228.1 mm

 Overall Dimension

 384.5 mm × 255.9 mm × 26 mm(N)/

 28.3 mm(T)

 Net Weight

 1255 g(N)/ 1635 g(T)

 TFT Panel

 A+ Level Industry Panel

 Touch Screen

 Industry Level 4 wire resistance

 Or without touch screen is optional.

Backlight Parameter

 Backlight Type

 LED

 Brightness

 500 cd/m2

 (Brightness can be adjustable in 100 levels.)

 Contrast

 500:1

 Backlight life

 50,000 hours

 Viewing Angle

 80°/ 80°/ 80°/ 80° (L/R/U/D)

 Working Temperature

 -20°C ~ +70°C

 Working Humidity

 55°C, 85%

 Storage Temperature

 -30°C ~ +80°C

 Screen Mode

 Digital

Performance Parameter

 CPU

 CortexM3 STM32F103

 LCD Controller

 CPLD EPM240

 Refresh Rate

 60Hz

 Picture Switching Speed

 80 ms/picture (12 pictures/s)

 Flash Memory

 Standard 256m, Extension 2GB

 Memory Amount for picture

 151 images

 Interface

 RS232/ RS485/ TTL UART Interface

 Pictures downloading

 MiniUSB2.0 (12Mbps) & SD card

 Voltage Range

 DC5.0V ~ 20V (typical value: 12V)

 Power

 12W

Test Report

 MTBF

 4,250,000H

 Working Temperature

 -20°C ~ +70°C

 Air Humidity

 60°C, 90%

 Continuous Vibration Testing

 10-55Hz, 1.5mm, 10G

 Impact Acceleration Testing

 6ms, 100G

 ESD Testing

 10KV

 Radiation Reliability Testing

 44W



Advantages

 With CPU & Driving Device

 Controlled by Any MCU

 Display Picture/ Text/ Curve via Commands

 65536 colour TFT display

 Touch Screen

 RS232/ RS485/ TTL UART Interface & USB port

 Wide voltage range

 Widely Used in many various Industrial Field

 Easy to Use! Powerful Function! Saving Cost and Time!

 Used as Touch-controller, TFT-LCD display system, etc.

Easy!!!   Powerful!!!   Saving!!!

The Intelligent TFT-LCD Module can be controlled by Any MCU through our Powerful & Easy Command

 Set (HEX Code), So

many of engineer in more than 50 countries enjoy our Product for new project.



Main Size of TFT LCD Module

 Size

 Resolution

 3.5"

 320*240

 4.3"

 480*272

 5"

 640*480; 480*272; 800*480

 5.6"

 640*480

 5.7"

 640*480

 7"

 800*480; 800*600; 1024*600

 8"

 800*600; 800*480; 1024*768

 8.4"

 800*600

 10.1"

 1024*600

 10.4"

 800*600

 12.1"

 800*600

 15.1"

 1024*768




Appliaction



Widely Used In Many Various Industrial Field in more than 50 Countries.

Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface 1
