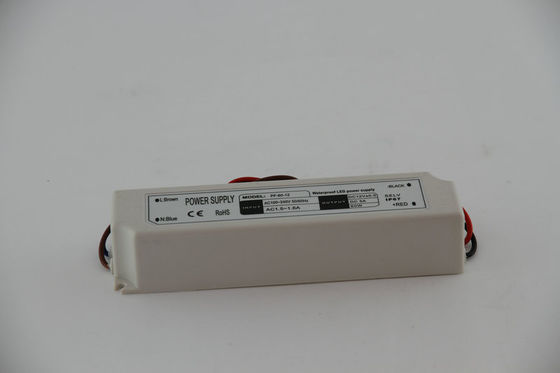

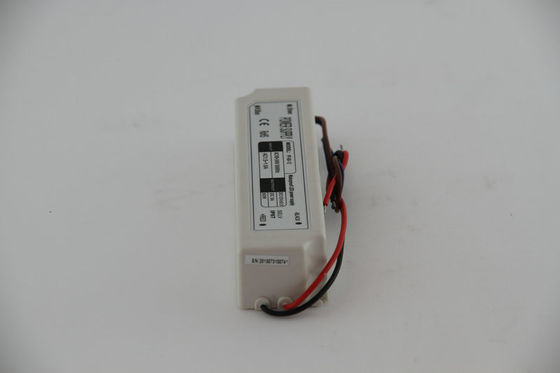

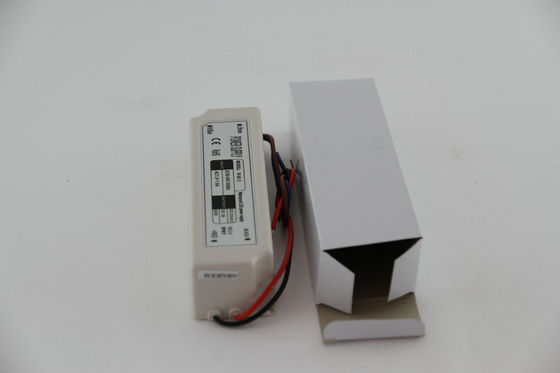

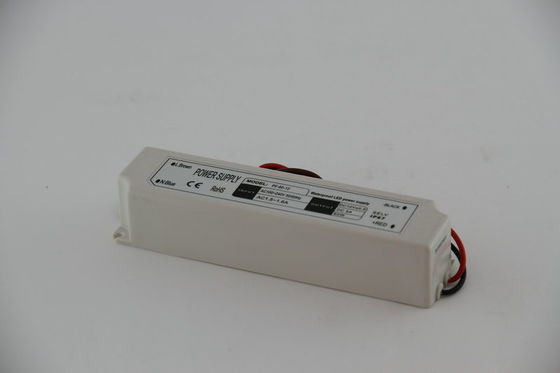

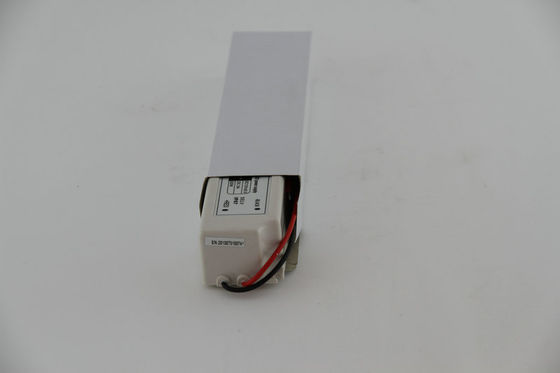

Waterproof IP67 60W Constant Voltage LED Driver 120V AC , Isolated Plastic Case

Waterproof IP67 60W Constant Voltage LED Driver 120V AC , Isolated Plastic Case

  • Waterproof IP67 60W Constant Voltage LED Driver 120V AC , Isolated Plastic Case
  • Waterproof IP67 60W Constant Voltage LED Driver 120V AC , Isolated Plastic Case
  • Waterproof IP67 60W Constant Voltage LED Driver 120V AC , Isolated Plastic Case
  • Waterproof IP67 60W Constant Voltage LED Driver 120V AC , Isolated Plastic Case
  • Waterproof IP67 60W Constant Voltage LED Driver 120V AC , Isolated Plastic Case
Waterproof IP67 60W Constant Voltage LED Driver 120V AC , Isolated Plastic Case
جزئیات محصول:
Place of Origin: China
نام تجاری: DongDaHua
گواهی: CE,RoHS
Model Number: PF-60-12
پرداخت:
Minimum Order Quantity: 10
قیمت: /
Packaging Details: as for your requirement
Delivery Time: as per your order quantity
Payment Terms: TT,paypal
Supply Ability: 4000pcs/Day
مخاطب
توضیحات محصول جزئیات
Product Name: Constant Voltage LED Driver DC output power: 60W
DC output voltage: 12V 24V Input voltage range: 110-240V AC
Waterproof grade: IP67 Input frequency range: 47Hz~63Hz
برجسته:

12 volt led driver, constant voltage led drivers

,

constant voltage led drivers

Overload Protection 60W Constant Voltage LED Driver IP67 High Reliability



Quick detail:

Power: 60W

Input: AC110-264V

Output: DC 12V 24V

Size:  160*41*32

Certificate: CE&ROHS

Warranty: 2 years



Description:

1. Protections :Short circuit/Overload/Over temperature

2. Cooling by free air convection

3. IP67 design for indoor or outdoor installations

4. 100% full load burn-in test

5. Suitable for LED lighting

6. Products through CE& ROHS certification

7. Two years warranty



Descriptions:



Parameter

Model: PF-60-12

DC output voltage

12V±5%

24V±5%

Rated output current

5A

2.5A

Output current range

0-5A

0-2.5A

Ripple and Noise

120mVp-p



DC output power

60W

60W

Efficiency

85%

85%

Input voltage range

110-240V AC

Short-circuit protection

Damage free short-circuit protection 3 times or more with automatic restoration

Overload protection

105-150% hiccup with automatic restoration

Temp.coefficient

±0.03%℃ ( 0-40℃ )

Voltage tolerance

Input-output range: 1.5KvAC

Working environmental temp.

-10℃~+40℃

Waterproof grade

IP67

Input frequency range

47Hz~63Hz

Storage temperature

-20℃~+85℃

Dimension

160*41*32 mm

weight

0.38 kg

Features:



* constant voltage design
* Universal AC input/Full range
* Withstand 300VAC surge input for 5 seconds
* Epoxy encapsulated with IP67 level
* Protections:Short circuit/Overload/Over voltage
* Cooling by free air convection
* Small and compact size
* Fully isolated plastic case
* Suitable for LED lighting and moving sign applications
* 100% full load burn-in test
* Low cost,high reliability
* 2 years warranty



Waterproof IP67 60W Constant Voltage LED Driver 120V AC , Isolated Plastic Case



Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

Quality assurance:

Waterproof IP67 60W Constant Voltage LED Driver 120V AC , Isolated Plastic Case 0




Delivery:


Waterproof IP67 60W Constant Voltage LED Driver 120V AC , Isolated Plastic Case 1
