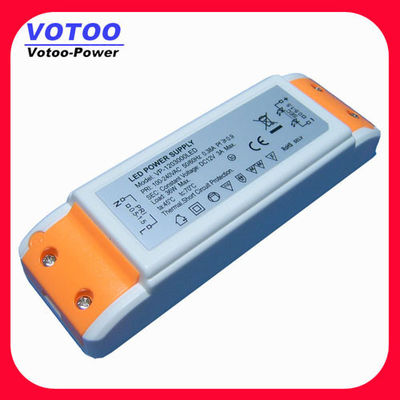

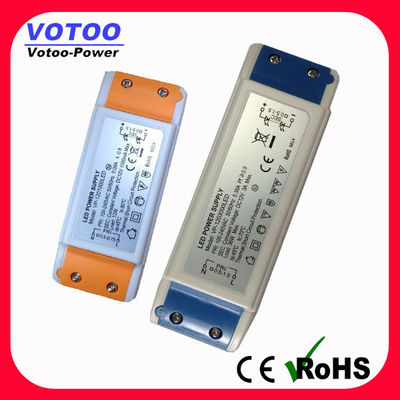

CE AC110-240V Constant Voltage LED Driver 12V 36W For LED Floor Lamp
Quick Detail:
-
led driver 24v 1.25a
-
Humidity: 5% to 95% Non-Condensing
-
Material: ABS+PC
-
Efficiency:85%Min
-
100% burn-in before shipping
-
Constant Voltage design
-
Certificate: CE & RoHS
-
Safety :SCP OCP OVP
-
Warranty: 1 year
-
Application: Spot light, ceiling light, down light, etc.
Features:
Input Voltage: AC110-240V
Output Voltage: DC12V
Output Current: 3000mA
Output Watt: 36W
Product Dimension: 145.0 x45.0 x 29.0mm
o Small volume, light weight, high efficiency.
o Cooling by free air convection.
o 100% Full load burn-in test.
o One year warranty.
o Ripple & Noise: 1% of Output Voltage
o Leakage Current: 0.25mA
o No load power Consumption
o Working Temperature:0-40°C Max
o Efficiency:85%Min
o High Efficiency
o Short Circuit Protection
o Over Voltage Protection
o Over Current Protection
o Green Circuit Design
o Accurate information and descriptions.
o All orders are shipped on time.
o All items are fully inspected prior to shipping to meet international standards by our QC staffs.
o All items are with CE RoHS approval to ensure the products quality.
o Accurate information and descriptions.
Weight: 140g
o Dimensions: 145.0 x45.0 x 29.0mm
Specification:
|
Electrical specifications
|
Output Voltage
|
12V
|
|
Output Current
|
3000mA
|
|
Rated Output Power
|
36W
|
|
Input Voltage
|
100-240V
|
|
Frequency Range
|
50~60HZ
|
|
Typical Efficiency
|
85% Min
|
|
Environmental specifications
|
Storage temperature
|
-40~60°c
|
|
Operating temperature
|
-25~40°c
|
|
Working environment
|
Indoor installations
|
|
Features
|
Overload Protection
|
automatic recovery
|
|
Over Current Protection
|
recovers automatically after fault condition is removed
|
|
Over Temperature Protection
|
recovers automatically after temperature goes down
|
|
Short Circuit Protection
|
Hiccup mode, recovers automatically after fault condition is removed
|
|
Others
|
Application
|
LED Lighting
|
|
LED Sign Applications
|
|
Standard
|
CE
|
|
RoHS
|
|
MTBF
|
50,000 HRS min
|
How to Install?
-
Connect power supply to the supplied unit.
-
Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
-
Do not install power supply in locations with high humidity, dust or strong direct sunlight.
-
The power supply should be installed in a location with good airflow.
-
Power supply can only be installed indoors.
Applications:
LED strip light 3528 5050, ceiling light, wall light, panel light, tube light, spotlight, plug-in light, LED tube etc.
Shipping terms
|
1.FCL - Full Container Loading
2.LCL - Less Container Loading
3.EXPRESS
4.Air Shipment
|
Payment terms
|
1.T/T
2.L/C
3.PayPal
4.West Union
|
