EN55011 Class B CCTV Power Supplies 400W 18 Channel , 50Hz / 60Hz

EN55011 Class B CCTV Power Supplies 400W 18 Channel , 50Hz / 60Hz

  • EN55011 Class B CCTV Power Supplies 400W 18 Channel , 50Hz / 60Hz
  • EN55011 Class B CCTV Power Supplies 400W 18 Channel , 50Hz / 60Hz
  • EN55011 Class B CCTV Power Supplies 400W 18 Channel , 50Hz / 60Hz
  • EN55011 Class B CCTV Power Supplies 400W 18 Channel , 50Hz / 60Hz
EN55011 Class B CCTV Power Supplies 400W 18 Channel , 50Hz / 60Hz
جزئیات محصول:
Place of Origin: Shenzhen,China
نام تجاری: RAYTOP
گواهی: CE, RoHS, FCC
Model Number: ETB2410-1210-18
پرداخت:
Minimum Order Quantity: 500 Pcs
قیمت: Negotiable
Packaging Details: Inside white box/color box, outside master carton
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 200,000 Pcs monthly.
مخاطب
توضیحات محصول جزئیات
Application: CCTV, Distribution Box Approval: CE, RoHS, UL
EMI: EN55011 Class B, EN55022 Class B Feature: High Voltage, 18 Channel, LED
Frequency: 50Hz / 60Hz Input: AC100-240V
Output: 12VDC Output Power: 400W
Product Name: CCTV Power Supplies Protection: Short Circuit, Over Voltage, Over Current
برجسته:

cctv power supply box,switch mode power supply

,

switch mode power supply



EN55011 Class B CCTV Power Supplies 400W 18 Channel , 50Hz / 60Hz





Quick Detail:



-Input: 110VAC or 220VAC, 1 in 18 Out Power Distribution Box (18 channels)

-Output: 12 Volt DC and 24V AC 400W

-12VDC and 24VAC in one box

-Supply Current: 13 Amp and 10 Amp

-Max. Amp: 1.85Amp/Channel

-18 individually PTC auto-reset fuses protected outputs with LED

-Over voltage, over current, short-circuit, and surge protections

-On/off safety power switch with LED indicator

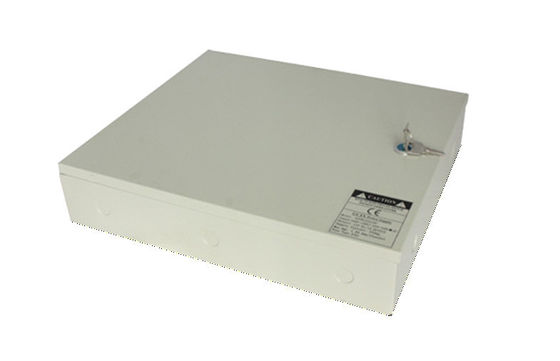

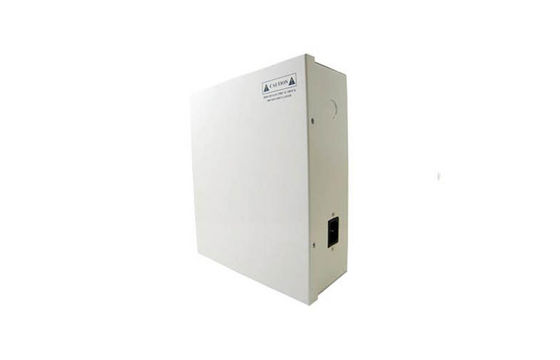

-Beige metal housing

-Dependable and long lasting

-Approvals: CE/RoHS

-Size: 380mm (L) x 330mm (W) x 85mm (D)





Description:



400W 12VDC and 24VAC 18 Channel CCTV Power Supply for CCTV Camera System.1 in 18 Out CCTV Power Supply(9 Channels of 12VDC and 9 Channels of 24VAC)

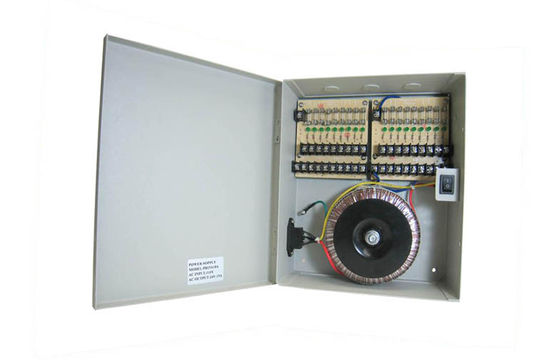

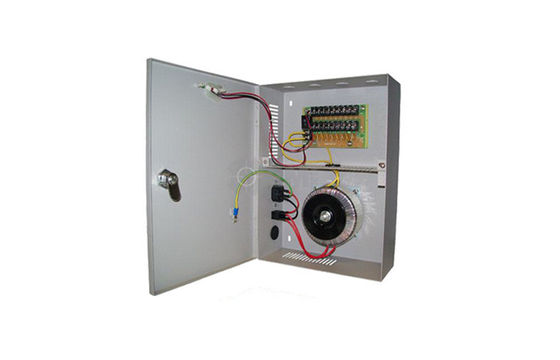

The AC/DC combo power distribution box powers up to9 of your 24 Volt AC devices and 9 of your 12 Volt DC devices, totaling up to 18 ports. This unit conveniently allows the connection of both AC and DC devices. Each of the 18 power outputs includes its own individual fuse and LED light for monitoring the power status, dependable, simple, and convenient.





Applications:



1) Suitable for industrial equipment, security monitoring.

2) Suitable for LED billboard, LED lighting.

3) Suitable for medical treatment, CCTV camera power supply.

4) Widely used in any other area.





Specifications:



Max output power

400W

Input

Input Voltage

AC100-240V

Input Voltage Frequency

50/60Hz

Input Current

Max.1.3A

Efficiency

>85%

Inrush Current

Cold Start Curren 40A/240Vac

Leakage Current

<3.5mA/240VAC

Output

Output Voltage

12VDC±5% & 24VAC±5%

Total Output Current

DC13A, 9 channels & AC10A, 9 channels

Output Ripple

Noise(Vp-p)

80mVp-p@25℃/

Rated input voltage & Rated output load

Fuse Type

Glass fuse

Fuse Rating

PTC 1.85A/60V

Start time, rise time, hold on

1000ms,30ms,50ms/240VAC.

Protection

Short Circuit Protection

When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically.

High Voltage Protection

When over voltage occurs, it will switch to self-protection status to

protect the load.

Over Current Protection

When over current occurs,

the corresponding

channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal.

Circumstances

Working Temperature

0℃-+50℃

Storage Temperature

-20℃-+80℃

RH

20%-90%

Heat Release

Natural heat dissipation

Dielectric strength

Input to output

1500Vac/60S  leakage current≤1.5mA

Input to FG

1500Vac/60S  leakage current≤2.0mA

FG to output

500Vac/60S   leakage current≤1.5mA

Insulating Strength

Input to output

≥20MΩ/500VDC@25℃

RG

≤0.011Ω@DC8V/25A/25℃

Safety EMC

Safety Standards

UI60950 EN60950

EMI

EN55011 class B

EN55022 class B

EMS Immunity

EN55024 EN61000-6-2

Harmonic Current

EN61000-3-2





Competitive Advantage:



-100~240VAC Worldwide Input Voltage range;

-Compact design, light weight and high efficiency;

-Short Circuit Protection, Over Current Protection, Over Load Protection;

-Customer design model;

-Factory direct price w/o middle man;

-0.3% backup of order quantity free of charge.
