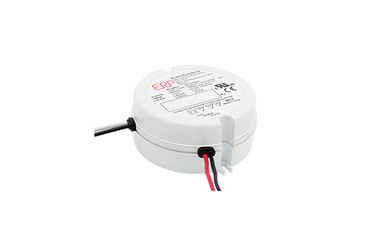

Round Shape Constant Current LED Drivers

Round Shape Constant Current LED Drivers

  • Round Shape Constant Current LED Drivers
Round Shape Constant Current LED Drivers
جزئیات محصول:
Place of Origin: Guangdong,China
نام تجاری: ERP
گواهی: CE, ROHS
Model Number: ELP009/012/018 Series
پرداخت:
Minimum Order Quantity: 100PCS
قیمت: Negotiable
Packaging Details: Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs per month
مخاطب
توضیحات محصول جزئیات
Power: 9W/12W/18W Nominal Input: 120 Vac or 230 Vac
Power Factor: ≥ 0.9 Output voltage: 12 V to 52 V
Output current: 200 mA to 1.0 A Compact size: 66 mm (2.6 in) diameter
برجسته:

led lighting accessories,led lighting parts

,

led lighting parts



Round Shape Constant-Current LED Drivers with Flicker-Free TRIAC Dimming



Features

  • 120 Vac or 230 Vac nominal input
  • Active power factor correction (PF) ≥ 0.9
    (PF ≥ 0.8 for 230 Vac models below 10 W)
  • High efficiency: 80~85%
  • Compatible with industry standard TRIAC and ELV dimmers
  • 10% to 100% dimmable output
  • Output current: 200 mA to 1.0 A (see List of Models for details) with ±5% accuracy of set point
  • Output voltage: 12 V to 52 V (see List of Models for details)
  • Short circuit, over-current, over-voltage, and over-temperature protection with auto-recovery
  • Conducted and radiated EMI: FCC part 15 class B and EN55015 class B compliant
  • Enables ENERGY STAR® luminaire compliance
  • Round plastic case: 66 mm (2.6 in) diameter
  • IP20-rated case with silicone-encapsulation
  • 90°C maximum case temperature
  • Lifetime: 50,000 hours at 70°C case temperature
  • Class II power supply
  • Worldwide safety approvals



Applications

  • Commercial lighting
  • Residential lighting
  • Architectural lighting
  • TRIAC retrofits





120 Vac Nominal Input Voltage

ERP Part Number
Nominal Input Voltage (Vac)
Iout Set Point +/-5% (mA)
Max Output Power (W)
Output Voltage Range (Vdc)
6 to 9 W
ELR009U-0200-42 120 200 8.4 32 - 42
ELR009U-0300-21 120 300 6.3 15 - 21
ELR009U-0300-27 120 300 8.1 20 - 27
ELR009U-0330-24 120 330 7.92 16 - 24
ELR009U-0350-21 120 350 7.35 15 - 21
ELR009U-0380-24 120 380 9.12 16 - 24
ELR009U-0500-18 120 500 9 12 - 18
10 to 12 W
ELR012U-0250-42 120 250 10.5 24 - 42
ELR012U-0285-36 120 285 10.26 22 - 36
ELR012U-0285-42 120 285 11.97 32 - 42
ELR012U-0300-34 120 300 10.2 25 - 34
ELR012U-0300-42 120 300 12.6 24 - 42
ELR012U-0350-32 120 350 11.2 18 - 32
ELR012U-0350-35 120 350 12.25 24 - 35
ELR012U-0440-24 120 440 10.56 16 - 24
ELR012U-0475-24 120 475 11.4 16 - 24
13 to 18 W
ELR018U-0350-42 120 350 14.7 32 - 42
ELR018U-0350-52 120 350 18.2 36 - 52
ELR018U-0380-42 120 380 15.96 32 - 42
ELR018U-0440-34 120 440 14.96 22 - 34
ELR018U-0500-36 120 500 18 25 - 36
ELR018U-0550-24 120 550 13.2 16 - 24
ELR018U-0700-24 120 700 16.8 16 - 24
ELR018U-1000-18 120 1000 18 12.6 - 18





230 Vac Nominal Input Voltage

ERP Part Number
Nominal Input Voltage (Vac)
Iout Set Point +/-5% (mA)
Max Output Power (W)
Output Voltage Range (Vdc)
6 to 9 W
ELR009E-0200-42 230 200 8.4 32 - 42
10 to 12 W
ELR012E-0440-24 230 440 10.56 16 - 24
13 to 18 W
ELR018E-0350-42 230 350 14.7 32 - 42
ELR018E-0350-52 230 350 18.2 36 - 52
ELR018E-0440-34 230 440 14.96 22 - 34
ELR018E-0500-36 230 500 18 25 - 36
ELR018E-0700-24 230 700 16.8 14 - 24
ELR018E-1000-18 230 1000 18 12.6 - 18
