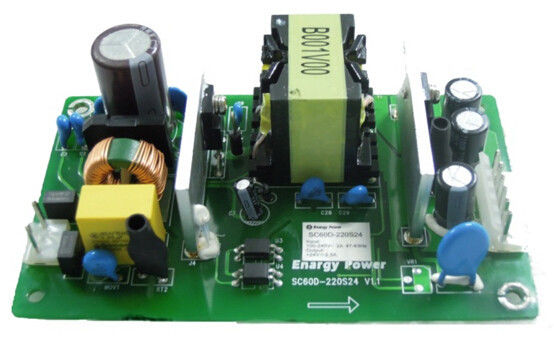

Low ripple & noise Medical Power Supply with Short circuit protection SC60D-220S24A

Low ripple & noise Medical Power Supply with Short circuit protection SC60D-220S24A

  • Low ripple & noise Medical Power Supply with Short circuit protection SC60D-220S24A
Low ripple & noise Medical Power Supply with Short circuit protection SC60D-220S24A
جزئیات محصول:
Place of Origin: China
نام تجاری: Enargy
Model Number: SC60D-220S24A
پرداخت:
Minimum Order Quantity: 1pcs
قیمت: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 15000Pcs/week
مخاطب
توضیحات محصول جزئیات
برجسته:

medical grade power supplies,ac to dc converter

,

ac to dc converter

Medical Power Supply 60W Output 24VDC/2.5A SC60D-220S24A





Key Features

AC input range: 90~264Vac

Single outputs: 24V/2.5A

High efficiency: 88%

Line regulation: ±2%

Load regulation:  ±2%

Low ripple&noise: ≤150mV

Frequency dithering fucntion

Short circuit protection

Output over current protection

Output over voltage protection

Over temperature protection

Standby dissipation 0.4W

EC60601-1 3rd Edition CE medical certification

Natural cool

RoHS compliant



Product Overview

This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.



Electric Characteristics

Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Rated input voltage

100



240

Vac



AC input voltage range

90



264

Vac



AC input frequency range

45

50/60

63

Hz



Max. input current





2

A

Min. input voltage, full load

Input inrush current





60

A

Max. input voltage,25℃, first start

Efficiency

87





%

220VAC input,full load

Turn-on delay time





1.5

S

220VAC input,full load

Turn-0ff  hold time

10





ms

110VAC input,full load

Dissipation





2

W

No load

Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output voltage range

24.00



24.6.00

Vdc



Output current range





2.5

A

220VAC input,6A for 1 second

Line Regulation





±2

%



Load Regulation





±2

%



Voltage stabilizing precision





±2





Ripple & noise





150

mV

Rated input, full load, 20 MHz bandwidth

Dynamic response

Deviation





±5

%

25% to 50% to 25% Iout max, 50% to 75% to 50% Iout max, 2.5A/us

Settling time





400

uS

To within 1% Vout nom.

Turn-on rise time





50

ms

Full load,10%~90% Vout

Output voltage overshoot





±5

%



Output Capacitance





2200

μF

Rated input voltage,load model:CR

Protection Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output over voltage protection

26



30

V

Lock-out,required to restart

Output over load protection

6.5



8

A

Hiccup

Short – Circuit Protection





10

Hiccup

Over-temperature protection



Lock-out,required to restart

General Characteristics

Parameter

Min

Typ

Max

Units

Notes

MTBF

250





KHrs

Rated input, full load,25℃

Weight





220

g



Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating temperature

-10



+70

Figure 1

Storage temperature

-25



+85



Relative humidity

20



90

%



Storage humidity

10



95

%



Altitude





3000

m



Cooling method

Natural cool



Safety Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation voltage

Input to output

4000





Vac

10mA/1min, No arcing and breakdown

Isolation resistance

10





500Vdc/1min, normal atmospheric pressure, 90% humidity



EMC Characteristics

Item

Standards

Conditions

Notes

CE

EN55011

FCC Docket 20780

IEC60601-1-2

Class B

Pass system test

RE

EN55011

FCC Docket 20780

IEC60601-1-2

Class B

Pass system test

Harmonic

EN61000-3-2

A type lamps requirements

Criterion B

Voltage fluctuations and flicker

EN61000-3-3

Class A equipments requirements

Criterion B

Surge

EN61000-4-5

Differential mode ±1KV,common mode±2KV

Criterion B

DIP

EN61000-4-11

EN55024

Voltage dip to 0%Ut,10ms

Criterion B, test at phase 0, 90, 180 and 270

Voltage dip to 40%Ut, 20ms

Voltage dip to 70%Ut,50ms

ESD

Air discharge

EN61000-4-2

±8KV

Criterion B

Contact discharge

EN61000-4-2

±4KV

Criterion B



Notes:

Low ripple & noise Medical Power Supply with Short circuit protection SC60D-220S24A 0

Figure 1: Output power vs. ambient air temperature



Mechanical Outline

Length×width×heigth:127.0×76×37.0(mm), 5×2.99×1.46(in),

   Low ripple & noise Medical Power Supply with Short circuit protection SC60D-220S24A 1

Connector designation:



1

2

3

4

5

6

J1

L

NC

N







J3

Vout+

Vout+

Vout+

Vout -

Vout -

Vout -
