Reliability Medical Power Supply Triple output 15V / 4A ac dc converter MD60-30S15

جزئیات محصول:

Place of Origin:	China
نام تجاری:	Enargy
Model Number:	MD60-30S15

پرداخت:

Minimum Order Quantity:	1pcs
قیمت:	Negotiation
Delivery Time:	1-8 Weeks
Payment Terms:	Negotiation
Supply Ability:	15000Pcs/week

مخاطب

توضیحات محصول جزئیات

برجسته:

medical grade power supplies,ac to dc converter

ac to dc converter

Medical Power Supply 60W Output 15V/4A MD60-30S15

Key Features

AC input range: 90~264Vac

Triple outputs: 15V/4A

High efficiency:85%

Line regulation: ≤±2%

Load regulation: ≤±2%

Low ripple&noise:≤150mV

short circuit protection

Output over current protection

Output over voltage protection

Natural cool

RoHS compliant

UL94V-0 flame-retarded rating

Product Overview

This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.

Electric Characteristics

Input Characteristics

Parameter		Min	Typ	Max	Units	Notes
Rated input voltage		100		240	Vac
AC input voltage range		90		264	Vac
Rated AC input frequency			50/60		Hz
AC input frequency range		47		63	Hz
Max. input current				2	A	Min. input voltage, full load
Input inrush current				60	A	230 Vac input voltage, 25℃, first start
Efficiency	AC input		85		%	Rated input voltage, rated load

Output Characteristics

Parameter	Min	Typ	Max	Units	Notes
Output voltage range	14.7	15	15.3	Vdc
Output current range	0		4	A
Voltage Regulation			±2	%
Load Regulation			±2	%
Ripple & noise			150	mVp-p	Rated input,full load, 20 MHz bandwidth
ON/OFF rise time			±5	%
Output voltage overshoot			±5	%
Output Capacitance		2200		μF
Temperature coefficient		±0.02		%/℃
Turn ON defer		3		S
Output risetime		20		mS
Turn OFF keep in time		10/20		mS

Protection Characteristics

Parameter	Min	Typ	Max	Units	Notes
Output over current protection	4.5		6.5	A	Hiccup
Output over voltage protection	16.5		19.5	Vdc
Short – Circuit Protection			10	mΩ	Hiccup

General Characteristics

Parameter	Min	Typ	Max	Units	Notes
MTBF	100			KHrs	Rated input, full load,25℃
Weight		200		g

Environmental Characteristics

Parameter	Min	Typ	Max	Units	Notes
Operating temperature	0		+55	℃
Storage temperature	-40		+85	℃
Relative humidity	20		90	%
Storage humidity	10		95	%
Altitude			3000	m
Cooling-down method					Natural cooling
Atmospheric pressure	70		106	Kpa

Safety Characteristics

Parameter		Min	Typ	Max	Units	Notes
Isolation voltage	Input to output	4000			Vac	5mA/1min, No arcing and breakdown
	Input to ground	1500			Vac
	Output to ground	500			Vdc
Isolation resistance	Input to output	100			MΩ
	Input to ground	100			MΩ
	Output to ground	100			MΩ
Leakage current				0.275	mA	264Vac,normal condition

EMC Characteristics

Item		Standards	Conditions	Notes
CE		EN55011	Class B	Pass system test
RE		EN55022	Class B	Pass system test
Harmonic		EN61000-3-2	C type lamps requirements	Criterion B
Voltage fluctuations and flicker		EN61000-3-3	Class A equipments requirements	Criterion B
Surge		EN61000-4-5	Differential mode ±2KV,common mode±4KV	Criterion B
CS		IEC61000-4-6	LEVEL 2: 3V/M	Criterion A
RS		IEC61000-4-3	LEVEL 2: 3V/M	Criterion A
EFT		IEC61000-4-4	LEVEL 3: 2V/M	Criterion B
ESD	Air discharge	EN61000-4-2	±8KV	Criterion B
ESD	Contact discharge	EN61000-4-2	±4KV	Criterion B

Notes:

Criterion A: Normal performance during and after test.

Criterion B: Low-voltage protection or reset is not allowed. Temporary output voltage fluctuation ceases after disturbances ceases, and from which the EUT recovers its normal performance automatically. During the system test, output voltage fluctuation or reset is not allowed too.

Criterion C: Temporary loss of output is allowed, but the hardware can’t be damaged. The EUT recovers its normal performance automatically or operator intervention.

Criterion R: Loss of output which is not recoverable is allowed. The primary protective component (fuse) can be damaged. The EUT recovers its normal performance after replace the damaged component.

Environmental Qualification

Parameter	Notes
Vibration	Frequency range: 5-20Hz,+3dB/otc; 20-80Hz,0.04g2/Hz; 80-500Hz, -3dB/ot c ; X.Y.Z axes, 30min/axis
Mechanical Shock	Half-sine wave, 300m/s2,11ms, ±X,±Y,±Z, 6tims/direction
Cold(in operation)	IEC60068-2-1 Ad
Damp heat	IEC60068-2-67 Cy
Temperature Cycling	-40°C to 100°C, ramp 15°C/min., 500 cycles
Power/Thermal Cycling	Vin = min to max, full load, 100 cycles
Design Marginality	Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load
Life Test	95% rated Vin and load, units at derating point, 1000 hours
Solder ability	IEC60068-2-20

Standards compliance

Standards	Notes
UL/cUL60950
EN60950
GB4943
IEC 695-2-2	Needle flame test, test on entire assembly, board&plastic components UL94V-0 compliant
IEC 61000-4-2

Mechanical Outline

Length×width×heigth:101.6×50.8×28 (mm),4×2×1.1(in)

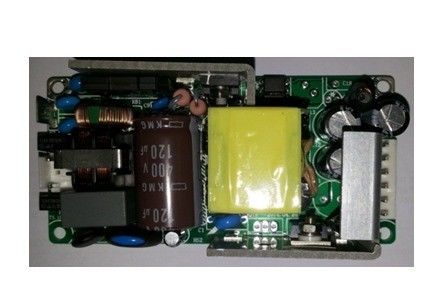

Reliability Medical Power Supply Triple output 15V / 4A ac dc converter MD60-30S15 0

Connector designations

Input connector

Pin code	Function
L	Live line
NC	Null
N	Neutral line

Output connector

Pin code	Function
VO+	Positive output voltage
VO+	Positive output voltage
VO-	Negative output voltage
VO-	Negative output voltage
S-	Negative remote sense
S+	Positive remote sense
