120Volt Universal Laptop Charger / AC To DC Power Adapter For Travel

120Volt Universal Laptop Charger / AC To DC Power Adapter For Travel

  • 120Volt Universal Laptop Charger / AC To DC Power Adapter For Travel
  • 120Volt Universal Laptop Charger / AC To DC Power Adapter For Travel
  • 120Volt Universal Laptop Charger / AC To DC Power Adapter For Travel
120Volt Universal Laptop Charger / AC To DC Power Adapter For Travel
جزئیات محصول:
Place of Origin: Shenzhen,China
نام تجاری: RAYTOP
گواهی: CE, RoHS, FCC
Model Number: ETL1200500-1
پرداخت:
Minimum Order Quantity: 2K
قیمت: Negotiable
Packaging Details: Color box or blister, 20 pieces per master carton.
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 50000 Pcs monthly.
مخاطب
توضیحات محصول جزئیات
برجسته:

universal notebook power adapter,universal laptop power supply

,

universal laptop power supply

120Volt Universal Laptop Charger / AC To DC Power Adapter For Travel



Quick Detail:

Place of Origin: Shenzhen, China

Brand Name: Raytop

Usage: Notebook/Netbook

AC Input: 100-240V, 50/60Hz, 1.3Amp.

Input: AC100-240V, 1.8A max.

Output: DC9.5/12/16/18/19/20V

Power Cord:

AC Cable: 2x0.75mm2, or 3x0.75mm2 length: 1.2M

DC Cable: 18AWG, Copper, length: 1.2M

AC Plug: EU, UK, US, SAA, CCC

Condition: All new products, 100% burn-in test.

Product Type: Universal AC Adapter

Power:45W

Color: Black.



Specifications:

Size of 8 Tips

A1 4.8x1.7mm 9.5V/3.5A
A2

4.8x1.7mm

12V/3.5A
A3 6.5x4.4mm 16V,2.5A
A4 4.0X1.7mm 19V/2.2A
A5 5.5x1.7mm 19V/2.2A
A6 5.5x3.0mm 19V/2.2A
A7 5.5x2.5mm 20V/2.2A
A8 2.5x0.7mm 19V/2.1A

Datasheet:

Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

1.3A

Inrush Current

30A

Output

Rated Output Voltage

DC 9.5~20V

Output Voltage

DC9.5/12/116/18/19/20V

Rated Output Current

2.2A

Rated Power

45W

Ripple and Noise

100mV p-p

Standby Power Consumption

0.3W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 4 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC.

Warranty

2 Years

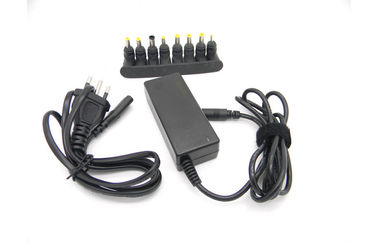

Contents 1Adapter + 1AC Cable+1DC Cable +8 Connectors







































































































Applications:

External power supply, used to charge most top brand laptops/notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. It can also charge personal devices like smart phones, tablet, iPhone 4g/4s, iPhone 5g/5s, iPad, iPod and so on simultaneously when using your laptops.



Competitive Advantage:

-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man.

-High performance-to-price ratio;

-Perfect after-sale service
