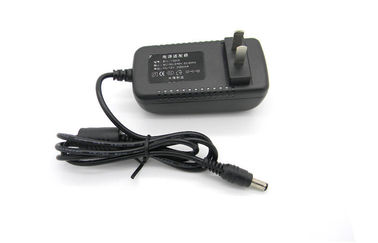

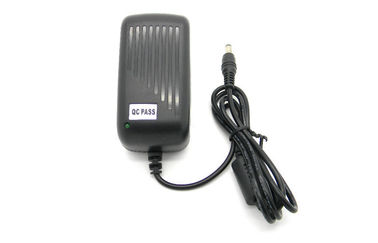

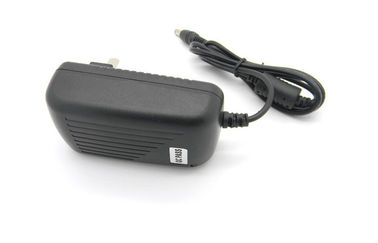

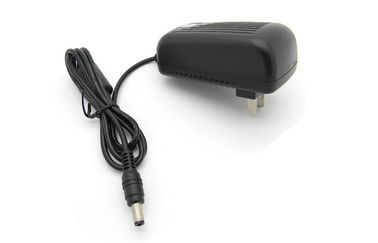

AC100-240V Wall Mount Power Adapter

AC100-240V Wall Mount Power Adapter

  • AC100-240V Wall Mount Power Adapter
  • AC100-240V Wall Mount Power Adapter
  • AC100-240V Wall Mount Power Adapter
  • AC100-240V Wall Mount Power Adapter
  • AC100-240V Wall Mount Power Adapter
AC100-240V Wall Mount Power Adapter
جزئیات محصول:
Place of Origin: Shenzhen,China
نام تجاری: RAYTOP
گواهی: CE, RoHS, FCC
Model Number: ET1200200
پرداخت:
Minimum Order Quantity: 2K
قیمت: Negotiable
Packaging Details: PE Bag, Master Carton, Customer package available.
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 200,000 Pcs monthly.
مخاطب
توضیحات محصول جزئیات
AC Cable: 1.2M Approval: CE, RoHS, FCC, UL, SAA
Cable Material: Copper DC Cable: 1.2M
EMI Standards: FCC Part 15B Feature: High Efficency
Input: AC100-240V Operating Temperature: 0~40℃
Output: 12V 2A Plug: EU, US, UK, SAA, CCC
Product Name: AC To DC Power Adapter Protection: Short Circuit, Over Voltage, Over Current
برجسته:

Wall Mount Power Supply,wall plug adapter

,

wall plug adapter



High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper





Quick Detail:



Switching mode power adapter, DC12V 2A, Wall mount in conformity with CE, RoHS, FCC certification.





Specs:



Input: AC100-240V, 1.2A max.

Frequency: 50/60Hz

Output: DC12V, 2A

DC Cable: 22AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC





Features:



-High efficiency:>82%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.





Approval: CE, RoHS, FCC

Warranty: 2 years





Description:



This is an universal AC/DC adapter come with single output tip 5.5x2.1x10mm, mainly for CCTV security camera application. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.





Note:



indoor use only





Applications:



used for CCTV security camera.





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

0.2A

Inrush Current

30A

Output

Rated Output Voltage

DC12V

Rated Output Current

2000mA

Rated Power

24W

Ripple and Noise

150mV p-p

Standby Power Consumption

0.5W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 4 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

2 Years





Competitive Advantage:



-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man.

-High performance-to-price ratio;

-Perfect after-sale service
