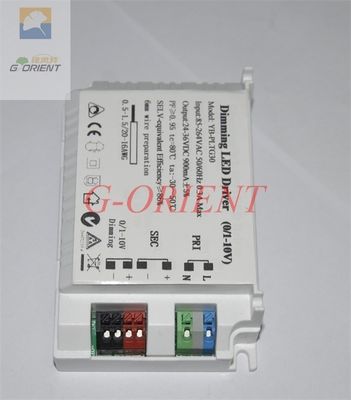

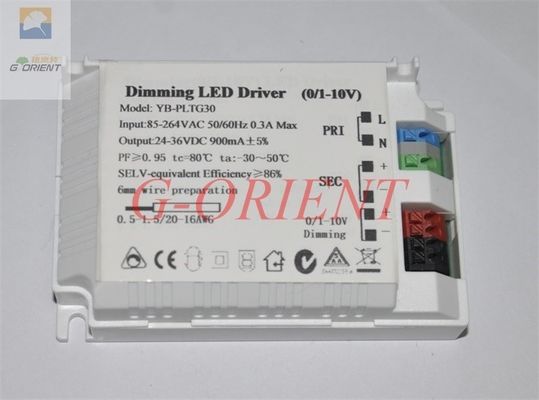

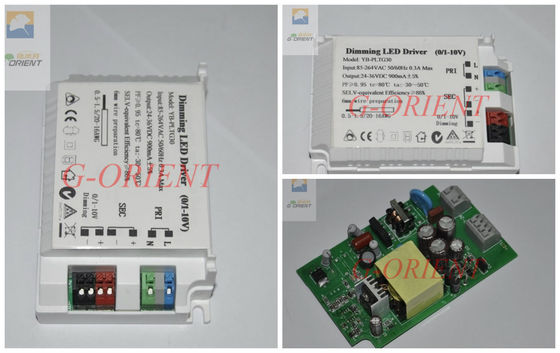

Universal 600ma 0-10V PWM Dimmable constant current led driver power supply
Features:
* 100% full load burn-in test
* Input Voltage: AC 85-264V
* Multiple Protections: Short circuit / Over load / Over voltage / Over temperature, Auto recovery
* Soft start with low ripple
* Leading or trailing edge dimming and universal dimming, 0/1-10V interface to be compatible with large-scale dimming system
* Output: Constant current
* Fit for class I protection lighting fixture
* Compliant with international standards, like safety, EMI, anti-interference, etc.,
* Compatible for most dimmers in the market, like Lutron, Philips, Sanken, etc.,
Applications:
* LED Panel, Down Light, Ceiling Light, Flood Light, etc.,
* Suitable for commecial and residential LED lamps
Specifications:
|
18-24W External constant current 0-10V LED dimmable Power Supply
|
|
OUTPUT
|
Voltage
|
24-42VDC
|
|
Current Range
|
500-600ma
|
|
Current Accuracy
|
5%
|
|
Rated Power Range
|
18-24W
|
|
Efficiency(Full Loaded)
|
≥0.85
|
|
Current Ripple
|
≤520mAp-p
|
|
INPUT
|
Voltage Range
|
100-120/200-240VAC
|
|
Frequency Range
|
47-62Hz
|
|
Power Factor
|
≥0.95
|
|
Inrush Current
|
10A MAX(230VAC)
|
|
Leakage Current
|
≤0.5mA
|
|
Protection
|
Over load/Over Voltage/Over Temperature/Short Circuit Protection
|
150% Rated output power, OTP≥120±5℃,
|
|
Environment
|
Working Temp.
|
-25 ~ +55℃
|
|
Working Humidity
|
20 ~ 90% RH, non-condensing
|
|
Storage Temp., Humidity
|
-40 ~ +50℃, 5 ~ 95% RH
|
|
Temp. Coefficient
|
+/-0.03%/℃ (0 ~ 50℃)
|
|
Feature
|
Dimension
|
103*67*31 (L*W*H)
|
|
Weight
|
39g
|
|
Others
|
Voltage Resistance
|
IP-OP: 3Kvac/5Ma/1 min
|
|
Conformance with Regulation
|
EN55015, EN610003-2Classic, EN610003-3
|
Competitive Advantages:
* PFC＞0.95
* High efficiency up to 85%
* Wide-range Dimming: 5-100%
* Flicker free, No Flash
* 3 years warranty
* CE / ROHS / FCC/SAA approval, Tuv, etc.,
* Customized is available
Company Advantage:
* Professional R&D team
* High quality products
* Short production lead time: 7-15 working days
* Standardized production process
* 10 years in LED lighting and power supply manufacture
The Dimmer Wiring Diagram
