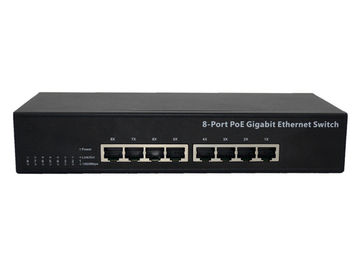

8 Port RJ45 Port Desktop PoE Switch IEEE 802.3x 10 / 100 / 1000M

8 Port RJ45 Port Desktop PoE Switch IEEE 802.3x 10 / 100 / 1000M

8 Port RJ45 Port Desktop PoE Switch IEEE 802.3x 10 / 100 / 1000M

جزئیات محصول:

Place of Origin: Shenzhen
نام تجاری: Fiberroad
گواهی: CE ROHS
Model Number: FR-POES-G8

پرداخت:

Minimum Order Quantity: 1pc
قیمت: Pls send request details
Packaging Details: Standard neutral or brand packing
Delivery Time: 2-3 workdays
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs/Month
اکنون تماس بگیرید
توضیحات محصول جزئیات
Name: POE Switch Output Type:: Single
Network Transfer Data Rate:: 10/100/1000Mbps Communication Mode:: Full-Duplex & Half-Duplex
Ports:: 8 Input Voltage:: 220V


8 Port RJ45 Port Desktop PoE Switch IEEE 802.3x 10 / 100 / 1000M


Supports PoE power up to 13W for each PoE port
Supports PoE power up to 120W for all PoE ports
Supports PoE IEEE 802.3af compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
1K entry MAC address table of the SL-SF1008GP with auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed
External power adapter supply

  • What This Product Does

    The  8-port 10/100/1000M Desktop PoE Switch provides the seamless network connection. It integrates 1000Mbps Fast Ethernet and 100Mbps Ethernet network capabilities.

    Overload Arrangement

    It has the priority* function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 120W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

    Port Priority Function

    *Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 13w (maximum power per port is 13W), the system power is 120w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 13w, and Port3 will use 10w, and no power will be supplied to Port 4.

    Easy To Use

    It is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the SL-1008GP 8-port 10/100/1000M Desktop PoE Switch is a great selection for expanding your home or office network.

  •

    HARDWARE FEATURES
    Interface 8 10/100/1000Mbps RJ45 Ports

    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    PoE Ports (RJ45) 4
    Backbound Bandwidth 16Gbps
    Mac Address Table 8K
    External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
    Dimensions (W X D X H)
    • 225mm*110mm*41mm
    SOFTWARE FEATURES
    Transmission Method Store-And-Forward
    Advanced Functions Compatible With IEEE 802.3af Compliant PDs
    Priority Function
    Mac Address Auto-Learning And Auto-Aging
    IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
    OTHERS
    Package Contents Cable/DSL Router, Quick installation Guide, CD-ROM, Power Adapter, RJ-15 Ethernet Cable,Warranty Card
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing



  • Supports PoE power up to 13W for each PoE port
    Supports PoE power up to 120W for all PoE ports
    Supports PoE IEEE 802.3af compliant PDs
    Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
    1K entry MAC address table of the SL-SF1008P with auto-learning and auto-aging
    LED indicators for monitoring power, link, activity and speed
    External power adapter supply
