OpenWRT M2M VPN Firewall Router For CCTV Security / ATM / PLC

OpenWRT M2M VPN Firewall Router For CCTV Security / ATM / PLC

  • OpenWRT M2M VPN Firewall Router For CCTV Security / ATM / PLC
  • OpenWRT M2M VPN Firewall Router For CCTV Security / ATM / PLC
OpenWRT M2M VPN Firewall Router For CCTV Security / ATM / PLC
جزئیات محصول:
Place of Origin: China
نام تجاری: E-Lins
گواهی: CE/ROHS/FCC/SGS
Model Number: H850w-1
پرداخت:
Minimum Order Quantity: 1pc
قیمت: negotiation
Packaging Details: Packed in carton firstly, and then reinforced with boxes
Delivery Time: Sample in 3 days (for usual version), Bulk order in 2-30 working days depends on material stock
Payment Terms: T/T or western Union
Supply Ability: 20,000pcs per month
مخاطب
توضیحات محصول جزئیات
Product Name: OpenWRT M2M HSDPA Router OS: OpenWRT
Antenna: External replaceable Supported Networks: HSDPA, UMTS, EDGE, GPRS
Case Material: Metal WLAN: IEEE 802.11b/g/n
Type: Industrial class SIM card slot: Yes
Wireless Type: Cellular Mobile RJ45: 1 WAN, 1 LAN
برجسته:

mobile broadband wireless router,cellular broadband router

,

cellular broadband router



OpenWRT M2M HSDPA Router For CCTV ATM POS PLC AMR Monitoring



E-Lins 3G hsdpa routers provide fast and reliable 3G hsdpa mobile broadband connectivity and the E-Lins H850 HSDPA industrial grade, embedded 3G router is ideal for a variety of wireless M2M remote monitoring and management applications including CCTV, Digital Signage and wind and solar energy management and monitoring.



Description Of H850w OpenWRT M2M HSDPA Router



1. Supported networks,

3G UMTS WCDMA (HSDPA);

2G GSM EDGE/GPRS;



2. Similar to H860 router, the H850 series Cellular Router is also an OpenWRT version router with smaller smart size, which is designed for establish a 2G/3G/4G cellular and Wi-Fi wireless network and share a cellular broad band Internet connection.



3. Hot Spot of H850 M2M HSDPA Router

1) OpenWRT version. Support firmware development by users;

2) One line WAN and one Cellular WAN. Built-in 3G HSDPA industrial cellular modules, insert SIM/UIM card to work directly;

3) Built-in SIM/UIM card slot;
4) HSDPA / 3G / 2G, fixed line broadband connections and WiFi Client failover;
5) Easy to management with GUI Web, Telnet SSH CLI
6) 1 LAN RJ45 port, 1 WAN RJ45 port, WiFi option;
7) VPN supported, DDNS, Dynamic Route, Firewall, NAT/NAPT, DMZ, Digital IO ports, GPS support (option)

8) Built-in watch dog, keep alive, etc.







Specifications for H850 3G M2M HSDPA Router



Wireless Cellular

Compatible Mobile Networks

3G UMTS WCDMA (HSDPA);

2G GSM EDGE/GPRS

Cellular Frequency

UMTS/HSDPA (WCDMA/FDD): 850/1900/2100 MHz, option for 850/900/1900/2100Mhz/1700Mhz/AWS;



Quad-band GSM/GPRS/EDGE 850/900/1800/1900Mhz;

Bandwidth

HSDPA: Downlink 7.2 Mbps, Uplink 384k bps;

WCDMA/UMTS: Downlink/Uplink 384 kbps;



EDGE: Downlink 384 kbps, Uplink 118 kbps;

GPRS: Downlink 108 kbps, Uplink 42.8 kbps;



Notes: the bandwidth is peak value. Real value depends on carrier network support.

Network and Band Lock Feature (Option)

Default is unlocked, can use this feature to lock

Main Features and Performance

USB Host

No

GPS (Option)

GPS feature option

VPN

IPSec, OpenVPN

OpenWRT

Yes

Route

Static Route;

Wi-Fi

802.11b/g, 802.11n, 802.11ac;

Can choose 54Mbps/150Mbps/300Mbps/450Mhz.



Frequency 2.4Ghz or 5.8Ghz or 2.4Ghz+5.8Ghz. Support Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users

Firmware update

Support flash new firmware image

Syslog

System log, Kernel log

NTP

Yes

Scheduled Tasks

Yes

Protocol



Protocol support

TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, WPS, DMZ, NAT, xDSL, NTP, QoS, SNMP, RIP

Security



Firewall

support 64/128 bits WEP, 802.1x, WPA, and WPA2

support WDS

support WPA1/2 – PSK

support WPA1/2 – 802.1x

support EAP – TLS, TTLS, LEAP, PEAP

TKIP, AES encryption

support access with user name & password.

support access control base WAN/LAN interface

support access control base source IP address

defense DOS attack, support SYN flooding, IP surfing, ping of Death, fragile, teardrop, land etc.

support PAP & CHAP

support IP filtering

support content filtering

support NAT/NAPT/Port forwarding/DMZ

Advanced Firewall Features

Network Address Translation (NAT)

Stateful Packet Inspection (SPI)

VPN Pass-through

Media Access Control

CSMA/CA with ACK

Certifications

REDIUS Client

Interface



LAN/WAN

1X 10/100M LAN port (RJ45 interface)

1X 10/100M WAN port (RJ45 interface)

Antenna

1 or 2 antenna for Wi-Fi (detachable, SMA interface);

1 or 2 antenna for Cellular (detachable, SMA interface);

1 antenna for GPS (detachable, SMA interface)

Led

PWR*1

SYS*1

Cell*1

WAN*1

LAN (10/100M)*1

WiFi*1

Button

Reset

Console

1 console port, Terminal block

Serial port

No

IO Port (option)

3

Management

Web/Telnet/CLI/SSH, support remote management

At command

Supported

UIM/SIM Card Slot

Support 1.8V/3V UIM/SIM cards, one sim card slot

DC Jack

2.1mm DC jack * 1

Power



Power supply

DC5V-50V , typical DC 9V1A or 12V1A, 12v CAR USE;

DC5V~40V is the default, DC5V~50V is the option

Current

Idle: about 120mA@12VDC

Communication: about 270mA@12VDC

Software



Device Management

WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chome, Opera, Sarafi, etc.)

Minimum System Requirements

Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser;

Network Interface Card

Physical



Operating Temperature

Storage Temperature: -40 ~ 85°C

Working Temperature: -30 ~ 75°C

Humidity

95% Maximum (Non-condensing)

Dimensions

PCBA: 90mm x 70mm x 23mm

With case: 100mm x 78mm x 26mm

Weight

375g (not including the antenna)
475g (including the antenna)
775g (including all accessories, without package)

Color

Metal Gray-Black, OEM is available

Others



Warranty

1 Year default. Option extends to 5 years maximum.

Package Contents

H850 Series Wireless 3G M2M HSDPA Router

Ethernet Cable

Power Adapter

Antenna

Others depends on option features







Applications

  • Vending machine
  • Telemetry, SCADA
  • Vehicle logistics and diagnostics controlling
  • Parking meter and Taxi Monitor
  • Telecom equipment supervision (Mobile base station, microwave or optical relay station)
  • Remote Data Monitor and Control
  • CCTV, security surveillance
  • Water, gas and oil flow metering and schedule
  • AMR (automatic meter reading)
  • Power station monitoring and control
  • Remote POS (point of sale) terminals, ATM,
  • Traffic signals monitor and control, Traffic info guidance
  • Oil field, weather forecast, environmental protection, street lamp monitoring and control
  • Early Warning of Mountain Torrent
  • Fleet management
  • Power distribution network supervision
  • Central heating system supervision
  • Weather station data transmission
  • Hydrologic data acquisition



Typical Application Diagram for H850 Industrial 3G Router



OpenWRT M2M VPN Firewall Router For CCTV Security / ATM / PLC 0

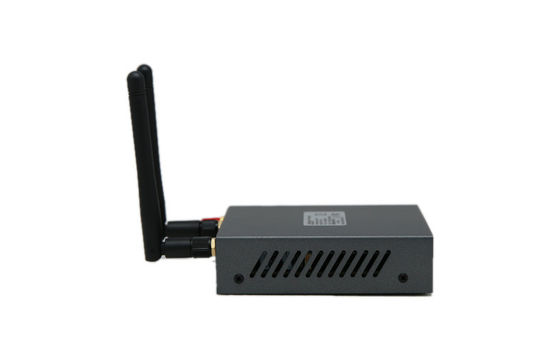

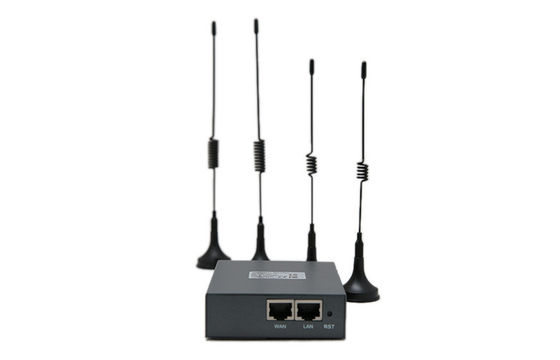

More Pictures for H850p Industrial M2M 3G HSDPA Router


OpenWRT M2M VPN Firewall Router For CCTV Security / ATM / PLC 1

OpenWRT M2M VPN Firewall Router For CCTV Security / ATM / PLC 2
