Place of Origin: | China |
نام تجاری: | Sumward |
گواهی: | CE,ROHS, FCC,C-tick,BV,GMC |
Model Number: | LCD HD Monitor S1 |
Minimum Order Quantity: | 2pcs |
---|---|
قیمت: | negotiation |
Packaging Details: | Inner 4CM PE foam,Middle export carton box,Outer export wooden box |
Delivery Time: | 7-25 days |
Supply Ability: | 3000PCS/month |
برجسته: | lcd cctv monitor,lcd computer monitor,lcd computer monitor |
---|

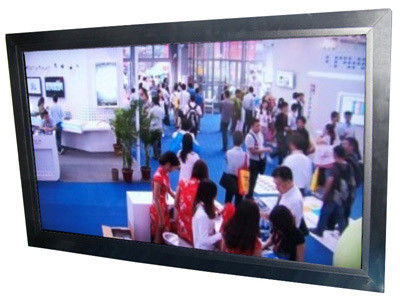

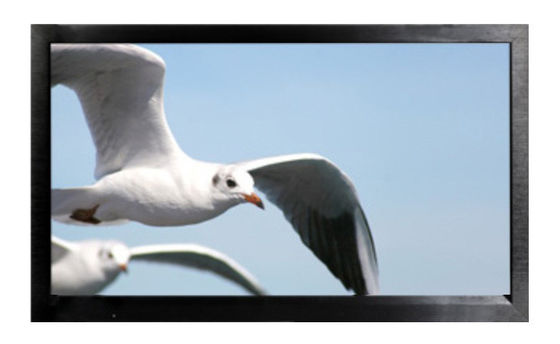

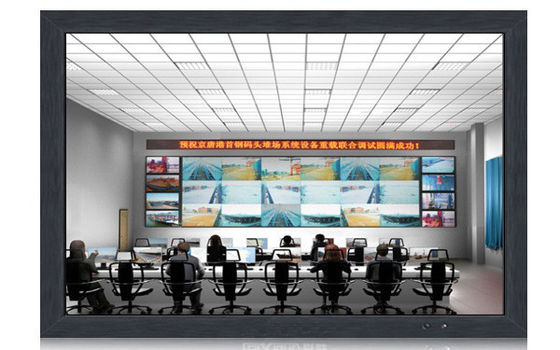

Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor
Features
Dual infrared touch screen frame
USB or VGA interface available
Spill proof and Anti Dust
True Flat designed to suit harsh environment
Best choice for space limited retail/hospitality settings
Easy for installation - One USB cable needed
Durable Die-casting Aluminum base design for touch version
LCD Specification
LCD Size-21.6" , 16:9 LCD-Full New LCD screen from Samsung/LG/AU/CHIMEI
Screen Resolution:1920*1080
Colour-16.7m
Brightness-450cd
Contrast-300.1
Response Time-16-25ms
Interface-VGA (optional AV/TV/HDMI)
Power Supply built-in-AC 100V-240V
Screen Parameter
Transmittance |
≥92%, 100% max (without Glass) |
Outline Dimension |
524(W±2.0)X343(D± 2.0)X8mm(H± 0.5) |
Detection Form |
Infrared rays interception detection form |
Active Area |
473mm(W)x296mm(D) |
Resolution |
1920(W)x1020(D) |
Output Format |
Coordinate Output |
Optical Element Pace |
5.97mm |
Minimum Touch body Diameter |
>5mm |
Response Speed |
16ms—25ms |
Touch Accuracy |
±1.5mm |
Touch Limitation |
No Limitation |
Electricity
Scan Frequency |
50Hz |
|
USB1.1 |
Connector type |
A type |
Transmission speed |
12Mbps |
|
Signal |
+5V, D-, D+, GND |
|
Connector |
USB A Port connector for cable |
|
Temperature Range |
Operating -40°C~70°C |
|
Storage -40°C ~80°C |
||
Humidity |
Operating 0%-85%, non condensing |
|
Storage 0%-95%, non condensing |
||
Power Supply |
DC 5V ± 5%, 270mA~290mA |
|
Communication Interface |
USB Port or RS232 (Plug & Play, No Drive) |
|
Communication Distance |
25Meter |
