Mobile Broadband Industrial 3G Router , CCTV / Digital Signage M2M 3G Router

Mobile Broadband Industrial 3G Router , CCTV / Digital Signage M2M 3G Router

  • Mobile Broadband Industrial 3G Router , CCTV / Digital Signage M2M 3G Router
Mobile Broadband Industrial 3G Router , CCTV / Digital Signage M2M 3G Router
جزئیات محصول:
Place of Origin: CHINA
نام تجاری: WLINK
گواهی: CE, ROHS
Model Number: WL-R200H3
پرداخت:
Minimum Order Quantity: For WLINK brand, MOQ 1 unit, For OEM MOQ 50 units
قیمت: negotiation
Packaging Details: One set to one box, 20 units boxes to one carton
Delivery Time: Stock for small quantity, 5-7 working days for bulk order
Payment Terms: TT, L/C, Paypal, Western Union or Cash in advance
Supply Ability: 5000 sets / Per month
مخاطب
توضیحات محصول جزئیات
Products Name: HSPA+ 21Mbps 3G Router Network: HSPA+ 3G
Wireless Standard: 802.11n Application: M2M field
Type: Industrial grade Interface: 2 * LAN (1 * LAN, 1 * WAN optional)
Frequency band: 850/900/1900/2100MHz
برجسته:

3G Mobile Wireless Router,Router 3G Industrial

,

Router 3G Industrial

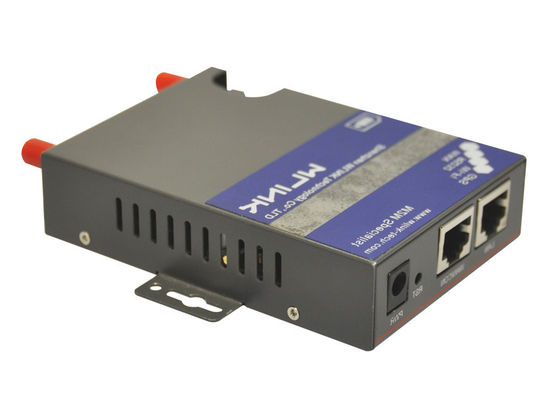

HSPA + 21Mbps Industrial 3G Router with 2xLAN , mobile broadband




Wlink R200H3 3G Router is an industrial grade, M2M 3G Router that provides 3G HSPA+ connectivity for high speed mobile broadband internet connectivity and is the ideal solution to provide high speed 3G connectivity for a wide range of M2M (Machine to Machine) applications such as CCTV, Digital Signage (Remote Media), Energy Monitoring (Solar and Wind) or any process controller or management system that communicates using IP.

The WLINK R200H3 3G router uses the Huawei Wireless embedded 3G HSPA+ modem which offers high speed 3G connectvity up to 100Mbps download speed and up to 50Mbps upload speed as well as being backwards compatible with widely available 3G services and provides HSPA+, UMTS and GPRS connectivity making this router one of the most flexible 3G routers available today.

The WL-R200H3 M2M 3G Routers includes keep alive functions like Ping Reboot and Cell ICMP check that enable the router to detect that it has been disconnected from the mobile network and to reboot itself thus re-instating the mobile network connection. These keep alive measures are essential when using a 3G router for M2M remote management and monitoring.




Basic Feature

  • Industrial robust design and compact metal housing
  • High data speed HSP+ 3G network, 2.5G backward compatible
  • LCP/ICMP/flow/heartbeat check, ensure network usability
  • Strong electromagnetic interference Resistance
  • Heat endurance and radiation ability
  • Built-in watch dog, Multi-link detection
  • Ultra security, VPN: PPTP, L2TP, GPE, IPSec VPN
  • 802.11b/g/n Wi-Fi support, 150Mbps data rate
  • High Reliability: Hardware l ink self-recovery
  • WAN port support PPPoE, static IP, DHCP client.
  • Failover or Backup between WAN and Cellular
  • Always online, reboot automatically if disconnected to ensure continual connection
  • Support APN and VPDN wireless private network access in
  • Web/CLI/SSH/Management platform support, easy configure
  • SNMP network management, NTP support
  • Local & remote management (configuration, status, upgrade firmware)
  • Supports DHCP Server
  • Supports DNS proxy and Dynamic DNS (DDNS)
  • Supports timing operation
  • Supports LED status indication
  • Shock and vibration resistant


   Advance Optional Feature

  • Optional Network Type includes 4G LTE, HSPA+/UMTS/WCDMA 3G and EVDO 3G.
  • Optional 150Mbps or 300Mbps 2.4G WiFi
  • Optional support to be controlled by SMS
  • GPS capability optional for fleet management or other tracking application
  • DTU serial communication function optional
  • M2M Management platform software option al available
  • OpenVPN Optional
  • OpenWRT Optional
  • PPTP Sever optional
  • Schedule reboot optional
  • Customized acceptable


Specification


Specification

OptionalSupport

Mobile Network

◎ FDD LTE 2600/2100/1800/900/800MHz
◎ HSPA+ 3G 800/850/900/1900/2100MHz
◎ EDGE/GPRS 850/900/1900/2100MHz

Ethernet Standard

◎ IEEE 802.3
◎ IEEE 802.3u

Interface

◎ 2×10/100Mb LAN interface
◎ 1xLAN, 1xWAN optional
◎ 1× RS-232 console port(optional)
◎ 2× SMA-K antenna interface
◎ 1× Standard SIM/R-UIM interface
◎ 1× Standard DC power interface

LED instruction

◎ SYSTEM
◎ Power
◎ WLAN
◎ WAN
◎ LAN (LAN1~LAN4)

Route Protocol

◎ Static route

◎ RIPv2/OSPF dynamic route

Power

Supply

◎ 7.5~32VDC

Device
management

◎ Local or remote web browser (IE v8 or above)
◎ CLI/Telnet command
◎ M2M management platform (optional)
◎ SSH configure (optional)

WiFi

(Optional)

◎ Standard: IEEE 802.11b/g/n
◎ WEP, WPA and WPA2 encryption
◎ Standard 150Mbps, 300Mbps optional
◎ AP, Client, station, bridge mode support

Firewall & Filter

◎ IP packet/Domain/MAC filter
◎ NAT
◎ DMZ

VPN

◎ IPSec
◎ PPTP/L2TP client
◎ GRE/IPIP

Power
Consumption

◎ Idle: 80mA@+12VDC
◎ Single Module Communications: 320mA@+12VDC

Other

◎ Dimension: 103mm x 73.5mm x 25.5mm (not including antenna)
◎ Weight: 300g
◎ Operation temperature: -30~+70℃
◎ Store temperature: -40~+85℃
◎ Related humidity: <95% (non-condensing)
◎ Guarantee: one year

Standard

EN 300 328 v 1.7.1 (2006-10)
EN 301 489-17
EN 301 489-1

EN 301 511
EN 301 908-1

EN 301 908-13

EN 60950-1,
EN 55024:2010              EN 61000-3-2
EN 61000-3-3:2008

EN 62311:2008
EN55022:2010/AC:2011

Approval

CE
RoHS
CCC





Applications:


Application

Energy

 Digital Oil Field, Coal Mine, Solar, Smart Grid,

Utilities

 Smart City, Traffic, Street lighting, Public Safety, 4G Public hotspot, Environment monitoring, Video Surveillance

Industrial

 Remote Telemetry, Tanking Monitoring, Automation, Remote PLC, Remote AMR, Remote Monitoring and control

Retail

 ATM, POS(Point-of-Sale), Vending Machine, Lottery Machine, Branch network, Digital Signage, Video Surveillance, failover between WAN&4G/3G

Transportation

 Bus WiFi, WiFi on Board, Vehicle video surveillance, Fleet tracking and management, Bus Advertising



Competitive Advantage:

  • WLINK Router are Industrial grade design which can endure high and low temperature and other extreme application environment
  • WLINK has ability to produce a quality product at a economic cost to meet the market and project requirement.
  • Strong R&D Team who have 10+ year experience in M2M cellular field
  • WLINK always provide the best pre-sale and after sale service to customerMobile Broadband Industrial 3G Router , CCTV / Digital Signage M2M 3G Router 0
