Place of Origin: | China Shandong |
نام تجاری: | China Coal |
گواهی: | ISO CE SGS TUV BV MA |
Model Number: | TUF 2000P |
Minimum Order Quantity: | 1 |
---|---|
قیمت: | negotiation |
Packaging Details: | Standard Export Packaging |
Delivery Time: | Shipped in three days after payment |
Payment Terms: | TT, Paypal, Western Union |
Supply Ability: | 5000 |
Model: | TUF 2000P | Accuracy: | ±1% |
---|---|---|---|
Repeat ability: | 0.2% | Linearity: | 0.5% |
Flow Range: | ±320m/s | Liquid Types: | Any single uniform liquid which can transmit ultrasonic |
Security: | Setup values Modification Lockout. Access code needs unlocking | Units: | English (U.S.) or metric |
Totalizer: | 7-digit totalizer for net, positive and negative flow respectively | Display: | 4×16 letters |
Communication: | RS-232 interface. 75-57600bps, compatible with Fuji ultrasonic flow meter and other UFM on enquiry | ||
برجسته: | detector device,detection instruments,detection instruments |

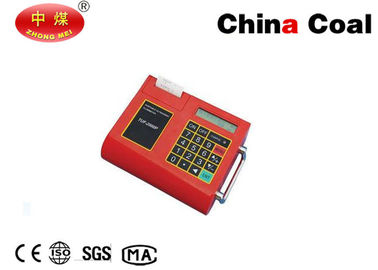

TUF 2000P portable ultrasonic flow meter

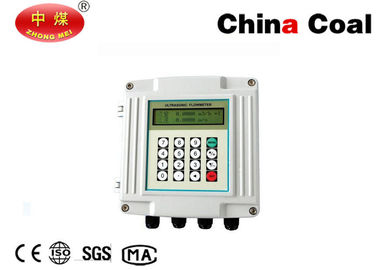

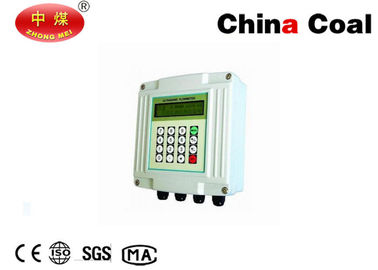

TUF series ultrasonic flow meter / TUF portable flow meter wall /installed ultrasonic flow meter /
Detailed Product Description
TUF-2000P Ultrasonic Flow Meter Introduction
TUF-2000P series portable Ultrasonic Flow meter
Medium: water,saline water, industrial waste water, acid/ alkaline solution, oils.
High Accuracy measuring
Accuracy: ±1%, linearity: 0.5%, repeatability: 0.2%
Non-intrusive measuring
Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
Wide measuring range
Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm
Light weight
Size: 225×180×67mm
Large capacity battery
Built-in rechargeable Ni-MH battery, provide over 12 hours of continuous operation
Large LCD display
Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.
Built-in data logger
Built-in 24K data logger, store over 2000 lines measuring data
TUF-2000P Ultrasonic Flow Meter Parameter
Linearity |
0.50% |
Repeatability |
0.20% |
Accuracy |
Better than ±1% for velocity above 0.2m/s |
Response Time |
0-999 second, user-configurable |
Flow Range |
±320m/s |
Measuring Pipe Size |
15mm-6000mm |
Units: |
English (U.S.) or metric |
Totalizer |
7-digit totalizer for net, positive and negative flow respectively |
Liquid Types: |
Any single uniform liquid which can transmit ultrasonic |
Security |
Setup values Modification Lockout. Access code needs unlocking |
Display |
Display 4×16 character |
Communication Interface |
RS-232 interface. 75-600bps, compatible with Fuji ultrasonic flow meter and other UFM on enquiry. |
Transducers |
Model M1 for standard, other 4 models for optional |
Transducer Cable |
Standard 5m x2 or can be extended to 10m x2 |
Power Supply |
3 AAA built-in Ni-MH batteries (for over 12 hours of operation). 100V-240VAC adapter |
Data Logger |
Built-in data logger can store over 2000 lines of data |
Manual Totalizer |
7 digit, calibrating by key |
Housing Material |
Flaming retarding ABS |
Size |
210×90×30mm |
Handset Weight |
500g(1.2 lbs) with batteries |
Feature Photo
