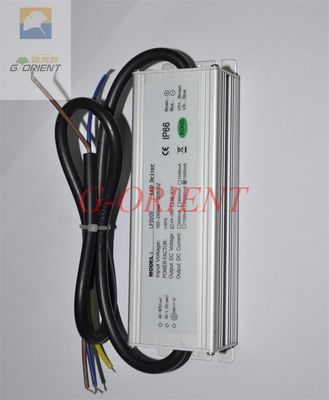

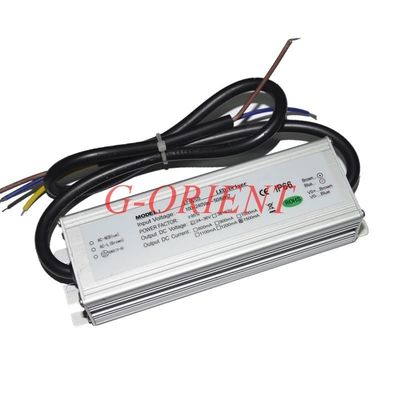

LED Tunnel light Waterproof Led Power Supply / constant current led driver

جزئیات محصول:

Place of Origin:	China
نام تجاری:	G-ORIENT
گواهی:	CE, ROHS, SAA, FCC, TUV, etc.,
Model Number:	GDW50-AE

پرداخت:

Minimum Order Quantity:	10pcs
قیمت:	Negotiable
Packaging Details:	40PCS/CTN, GW:8.5KGS, Carton Size: 31 x 19 x 17.5CM
Delivery Time:	7-15 work days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	60,000set/mon

مخاطب

توضیحات محصول جزئیات

Input Voltage:	85-277VAC	Output Voltage:	12-36VDC
Power Rated:	50W	Efficiency:	0.88 Max
Protecion Grade:	IP66	PFC:	>0.95
گواهی:	CE,ROHS,FCC,SAA,TUV, etc.,	Case:	Aluminum
برجسته:	outdoor led power supply,constant current led power supply , constant current led power supply

LED Tunnel light Waterproof Led Power Supply / constant current led driver

Features:

* Input Voltage: AC85-277V

* Output: Costant Current
* High efficiency, High reliability, Low cost
* Protections: Short circuit/Over load/Over voltage/High temperature
* Waterproof grade: IP66, water proof and dust proof
* Working Frequency: 65 KHz
* Suitable for LED lighting, Like LED Downlight, Flood Light, LED strip light, LED Wall Wash Light, etc.,
* Aluminum Case

Competitive Advantages:

* PFC＞0.95

* High efficiency up to 88%

* 3 years warranty

* CE / ROHS / FCC/SAA approval

* Customized is available

* IP66

Specification:

Model		GDW50-AE-12	GDW50-AE-24	GDW50-AE-36	------
output	DC voltage	12V	24V	36V	------
	Voltage tolerance	±1%	±1%	±1%	------
	Rated current	4.2A	2.1A	1.4A	------
	Current range	0~4.2A	0~2.1A	0~1.4A	------
	Rated power	50.4W	50.4W	50.4W	------
	Ripple&noise	100mvp-p	150mvp-p	180mvp-p	------
input	Voltage range	AC85-277V,235~373VDC
	Frequency	47~63HZ
	AC current	0.5A/230VAC
	Efficiency	84%	85%	88%	------
	Inrush current	Cold start current 35A/230VAC
	Leakage current	<1mA/240VAC
protection	Over load	Rated output power 115%~150%start over load protection
		Protection type: hiccup mode,auto-recovery after fault condition is removed
	Over voltage	15.6~17.8V	30.6~33.2V	42.6~44.2V	-------
		Protection type: hiccup mode,auto-recovery after fault condition is removed
	Over temperature	Shell temp≥85°C,start over temperature protection
		Protection mode: cutoff output,auto-recovery after temperature become normal
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
	Storage temp.humidity	-20°C~+85°C,10%~95%RH non condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60minutes,each axes
safety	Withstand voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC
Fits tandard	Safety standard	Fit UL1012,IP67 protect level
	EMC standard	Fit EN55022,CLASSA
Others	Dimension	1394229mm (LWH)
	Weight/packing	0.21kg/30pcs/10..5kg

Application:
* Widely used in LED Lighting, LED Street light, LED flood Light, LED Tunnel light, Wall Wahs LED light, etc.,
* IP66 waterproof and dustproof, can operate in hard conditions and enviroment
