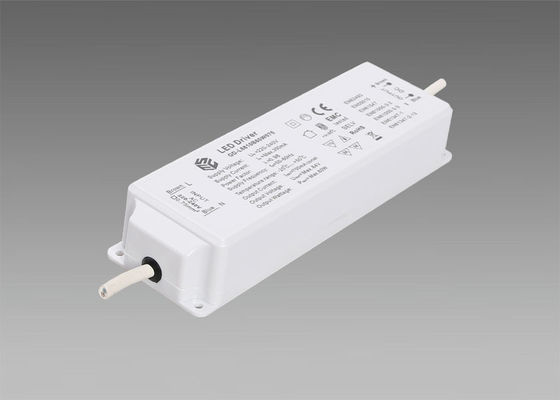

IP44 Constant Current LED Driver 60W - 110W Overheating Protection SEC-N-QD100

IP44 Constant Current LED Driver 60W - 110W Overheating Protection SEC-N-QD100

IP44 Constant Current LED Driver 60W - 110W Overheating Protection SEC-N-QD100

جزئیات محصول:

Place of Origin: China
نام تجاری: GPT
گواهی: CE RoHS
Model Number: SEC-N-QD100

پرداخت:

Minimum Order Quantity: 500pcs
Packaging Details: Standard exporting packing
Delivery Time: 30-35 Days
Supply Ability: 10,000pcs per month
اکنون تماس بگیرید
توضیحات محصول جزئیات
Model: SEC-N-QD100 IP: IP44
PF: 0.98 Input: 220-240V 50-60Hz
Max Output: 60w-110w CC/CV: Constant current

IP44 Constant Current LED Driver 60W - 110W Overheating Protection









Product Features:



Waterproof LED driver, IP44

Constant current driver

Overload & Short circuiting protection

Overheating protection

Simple installation

SELV equivalent & protection class Ⅱ

3 years warranty

IP44 Constant Current LED Driver 60W - 110W Overheating Protection SEC-N-QD100





Specification:



Max Watt

CC/CV

Size

Input voltage

Output Current

PF

Ta

Tc

IP rate

60

CC

208X63x38

220-240 50/60Hz

700mA

0.95

45

85

44

60

CC

208X63x38

220-240 50/60Hz

1.5A

0.95

45

85

44

80

CC

208X63x38

220-240 50/60Hz

1A

0.95

45

85

44

110

CC

208X63x38

220-240 50/60Hz

1.5A

0.95

45

85

44




Size: L208*W63*H38mm

IP44 Constant Current LED Driver 60W - 110W Overheating Protection SEC-N-QD100IP44 Constant Current LED Driver 60W - 110W Overheating Protection SEC-N-QD100





Standards:



EN 61347-1

EN 61347-2-13

EN 55015

EN 62493

EN 61000-3-2

EN 61000-3-3

EN 61547



Competitive Advantage:



High PF can reach to 0.98

IP44 can reach to IP67

Over-load protection, short-circuit protection, overheat protection

3 years warranty
