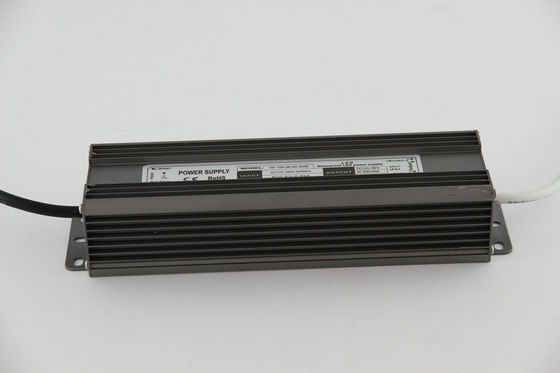

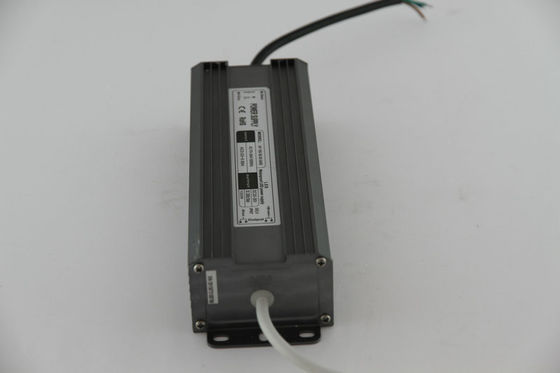

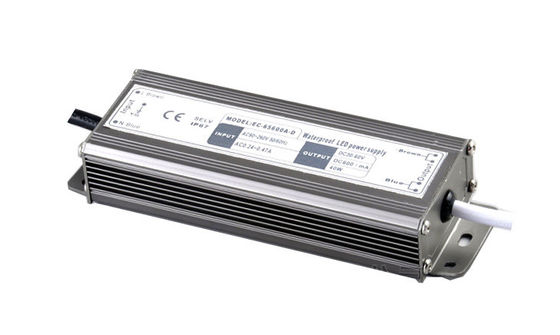

100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver

100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver

    • 100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver
    • 100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver
    • 100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver
    • 100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver
    • 100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver
  • 100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver

    جزئیات محصول:

    Place of Origin: China
    نام تجاری: DongDaHua
    گواهی: CE RoHS
    Model Number: HF-100-36-20-3A00

    پرداخت:

    Minimum Order Quantity: 10
    قیمت: /

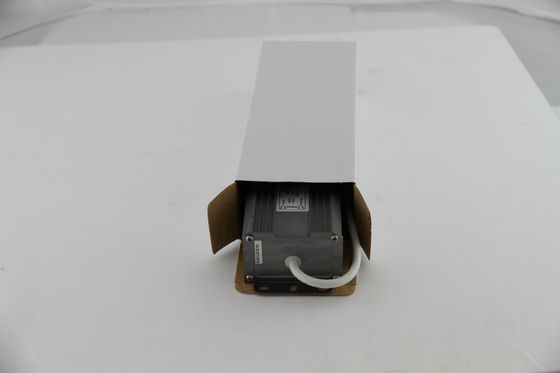

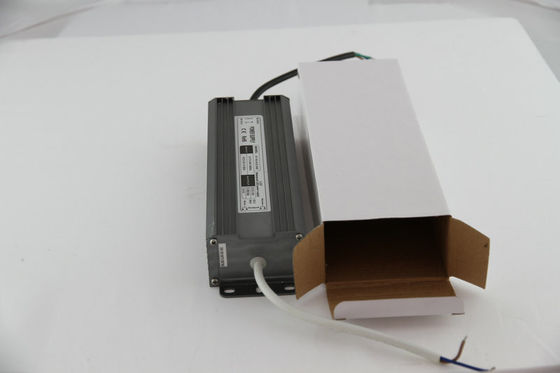

    Packaging Details: as per your request
    Delivery Time: 3-7 days on averange
    Payment Terms: TT;Paypal
    Supply Ability: 3000pcs/Day
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    Product Name: Constant Current LED Driver Input Frequency Range: 47~60Hz
    Output Dc Voltage: 20~36V Output Rated Current: 3200mA
    Output Rated Power: 100W Protections: Short circuit/OLP/OVP

    100W 3200mA Constant Current LED Driver  with CE RohS


    Features:

    Universal AC input/Full range
    Protections: Short circuit/OLP/OVP
    Meet EMC standards
    100% full load burn-in test
    High efficiency,long life and high reliability
    IP67 design for indoor and outdoor


    100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver

    Specifications:


    ModelHF-100-36-20-3A00
    OutputDc Voltage20~36V±5%
    Rated Current3200mA
    Rated Power100W
    Ripple&Noise(Max)200mV
    Current Tolerance±20mA
    Setup,Rise Time100ms/220VAC
    Hold Up Time(Typ.)
    InputVoltage Range170~250VAC
    Frequency Range47~60Hz
    Power Factor(Typ)PF>0.6/220VAC
    Efficiency(Typ)83%
    Ac Current(Typ) 0.63A/235V
    Inrush Current(Typ)Cold-start current 3.2A/235V
    ProtectionShort CircuitProtection type:recovers automatically after fault conditions is removed
    OverlaodOverload protection@145~160%above peak rating
    Over Temperatureprotection typer:shut down o/p voltage.re-power on to recover
    EnvironmentWorking Temp-30~ +60℃(Refer to output load derating curve)
    Working Humidity20~90%RH no-condensing (Waterproof)
    Storage Temp Humidity-40~ +80℃,10~90%RH
    Safety&EMCSafety StandardsCE Mark(LVD),IP67
    Withstand VoltageI/P-O/P:1.5KVAC   IP-GND:1.5KVAC
    Emc Test StandardsEN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005
    EN 61347-1:2008 EN 61347-2-13:2006
    NOTE1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25℃ of ambient temperature.
    2.Ripple&noise are measured at 20MHz of bandwidth by using a12''twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
    3.Tolerance:includes set up tolerance,line regulation and load regulation.



    Application:
    It’s suitable for an extremely wide range of applications, including:
    LED, CCTV camera;
    Communications and security products;
    LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
