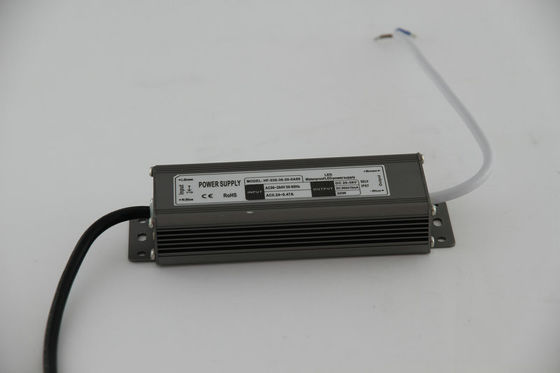

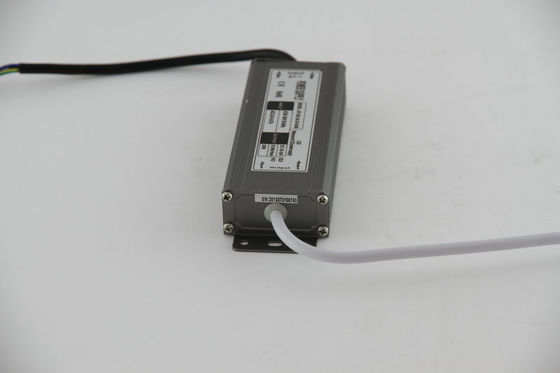

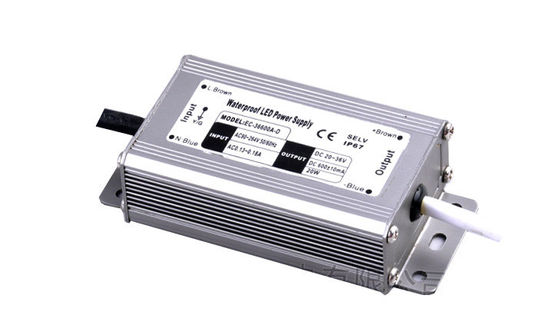

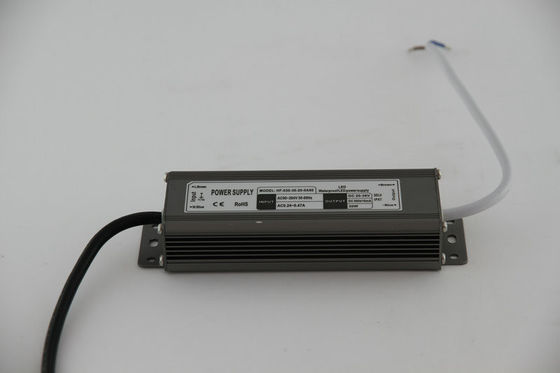

IP67 900mA Single Output Constant Current LED Driver 30W , 20V DC Waterproof LED Driver

IP67 900mA Single Output Constant Current LED Driver 30W , 20V DC Waterproof LED Driver

  • IP67 900mA Single Output Constant Current LED Driver 30W , 20V DC Waterproof LED Driver
  • IP67 900mA Single Output Constant Current LED Driver 30W , 20V DC Waterproof LED Driver
  • IP67 900mA Single Output Constant Current LED Driver 30W , 20V DC Waterproof LED Driver
  • IP67 900mA Single Output Constant Current LED Driver 30W , 20V DC Waterproof LED Driver
  • IP67 900mA Single Output Constant Current LED Driver 30W , 20V DC Waterproof LED Driver
  • IP67 900mA Single Output Constant Current LED Driver 30W , 20V DC Waterproof LED Driver
IP67 900mA Single Output Constant Current LED Driver 30W , 20V DC Waterproof LED Driver
جزئیات محصول:
Place of Origin: China
نام تجاری: DongDaHua
گواهی: CE RoHS
Model Number: HF-030-36-20-0A90
پرداخت:
Minimum Order Quantity: 10
قیمت: /
Packaging Details: as per your request
Delivery Time: 3-7 days on averange
Payment Terms: TT;Paypal
Supply Ability: 3000pcs/Day
مخاطب
توضیحات محصول جزئیات
Product Name: Constant Current LED Driver Output Dc Voltage: 20~36V
Output Rated Current: 900mA Output Rated Power: 30W
Input Voltage Range: 110~250VAC Input Frequency Range: 47~60Hz
برجسته:

constant current Source led driver, constant current led drivers

,

constant current led drivers

IP67 Overload Constant Current LED Driver 30W 900mA


Quick detail:

Power: 30W

Input: AC110-264V

Output: DC 12V 24V

Size:  152*50*25

Certificate: CE&ROHS

Warranty: 2 years



Description:

1. Protections :Short circuit/Overload/Over temperature

2. Cooling by free air convection

3. IP67 design for indoor or outdoor installations

4. 100% full load burn-in test

5. Suitable for LED lighting

6. Products through CE& ROHS certification

7. Two years warranty





Specifications:


Model HF-030-36-20-0A90
Output Dc Voltage 20~36V±5%
Rated Current 900mA
Rated Power 30W
Ripple&Noise(Max) 180mV
Voltage Tolerance ±10mA
Setup,Rise Time 100ms/220VAC
Hold Up Time(Typ.) 80ms/220VAC
Input Voltage Range 110~250VAC
Frequency Range 47~60Hz
Power Factor(Typ) PF>0.5/220VAC
Efficiency(Typ) 83%
Ac Current(Typ)  0.3A/235V
Inrush Current(Typ) Cold-start current 0.9A/235V
Protection Short Circuit Protection type:recovers automatically after fault conditions is removed
Overlaod Overload protection@145~160%above peak rating
Over Temperature protection typer:shut down o/p voltage.re-power on to recover
Environment Working Temp -30~ +60℃(Refer to output load derating curve)
Working Humidity 20~90%RH no-condensing (Waterproof)
Storage Temp Humidity -40~ +80℃,10~90%RH
Safety&Emc Safety Standards CE Mark(LVD),IP67
Withstand Voltage I/P-O/P:1.5KVAC   IP-GND:1.5KVAC
Emc Test Standards EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005
EN 61347-1:2008 EN 61347-2-13:2006
NOTE 1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a12''twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.


Features:

Universal AC input/Full range
Protections: Short circuit/OLP/OVP
Meet EMC standards
100% full load burn-in test
High efficiency,long life and high reliability
IP67 design for indoor and outdoor


IP67 900mA Single Output Constant Current LED Driver 30W , 20V DC Waterproof LED Driver



Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

Quality assurance:

IP67 900mA Single Output Constant Current LED Driver 30W , 20V DC Waterproof LED Driver 0

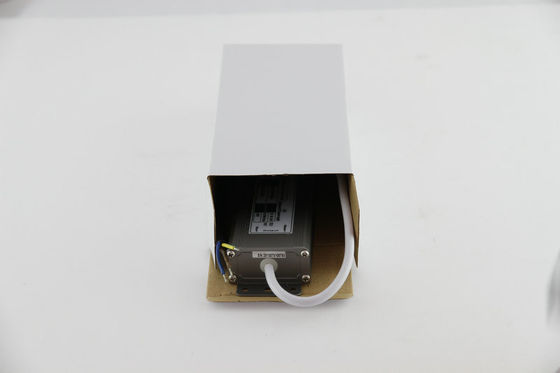

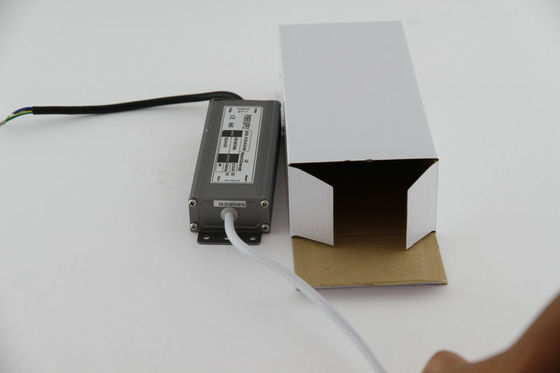

Delivery:


IP67 900mA Single Output Constant Current LED Driver 30W , 20V DC Waterproof LED Driver 1
