Multimode Power Over Ethernet PSE Media Converter Over-current protection

Multimode Power Over Ethernet PSE Media Converter Over-current protection

  • Multimode Power Over Ethernet PSE Media Converter Over-current protection
  • Multimode Power Over Ethernet PSE Media Converter Over-current protection
  • Multimode Power Over Ethernet PSE Media Converter Over-current protection
Multimode Power Over Ethernet PSE Media Converter Over-current protection
جزئیات محصول:
Place of Origin: ShenZhen China
نام تجاری: Fiberroad
گواهی: CE SGS ISO9000 FCC
Model Number: FR-POE332-XX-XXXX
پرداخت:
Minimum Order Quantity: 1pcs
قیمت: Pls send request details
Packaging Details: Standard neutral or brand packing
Delivery Time: 2-3 workdays
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs/Month
مخاطب
توضیحات محصول جزئیات
Input voltage: 100 VAC to 240 VAC Input frequency: 47 Hz to 63 Hz
For IEEE802.3af standard: 1/2 (V+),3/6 (V-) Operating temperature: 0℃ to 50℃
Case Material: Iron Case Color: Black
برجسته:

poe power over ethernet, power over ethernet switch

,

power over ethernet switch

Multimode Power Over Ethernet PSE Media Converter Over-current protection

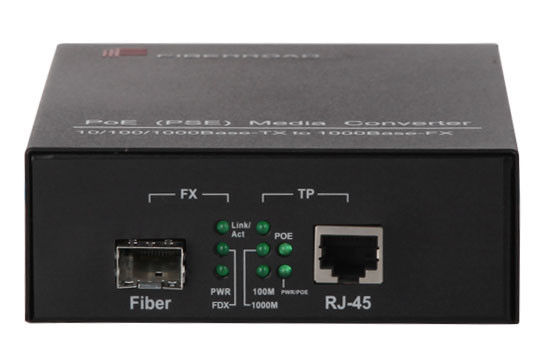

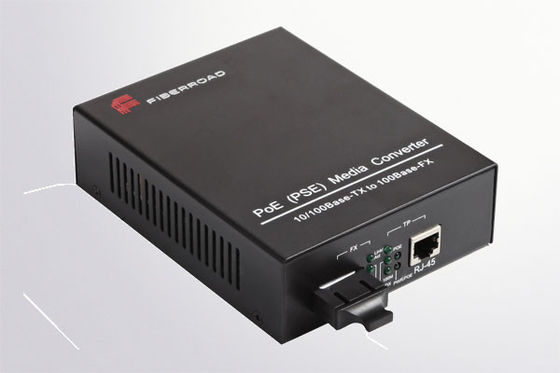

FR-POE332 series is a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Complied with IEEE802.3at or IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feets).

The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection, LFP function, etc. The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.



Key Features



  • 10/100/1000Base-TX UTP to 1000Base-FX fiber media convertion
  • IEEE802.3at / IEEE802.3af PoE PSE compatible
  • Built-in AC/DC power supply
  • Over-current protection
  • choice of SC, LC, BiDi or other connectors for multimode and singlemode

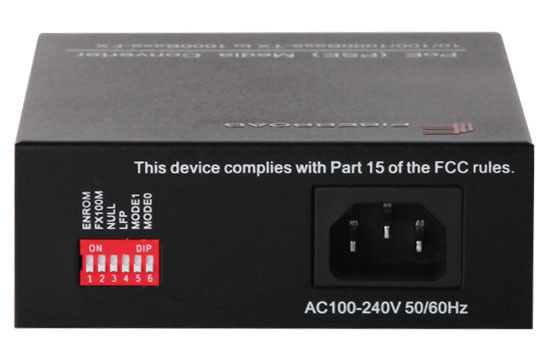

  • DIP switch to set different configurations
  • LFP (Link Fault Pass-through) support

Specification



Data Rates

10/100/1000Mbps(IEEE802.3U IEEE802.3z 1000Base-Tx)

1000Mbps (1000Base-FX) or 100Mbps (100Base-FX)

Input Power Requirements

Input voltage

100 VAC to 240 VAC

Input frequency

47 Hz to 63 Hz

Power over Ethernet Output

Pin Assignment and Polarity



For IEEE802.3af standard

1/2 (V+),3/6 (V-)

For IEEE802.3at standard (30watts maximum)

1/2 (V+),3/6 (V-)

For IEEE802.3at standard (50watts maximum)

1/2/4/5 (V+),3/6/7/8 (V-)

Output Power

please refer to ordering information

Efficiency

75% min

Short circuit protection

auto recovery

Over current protection

auto recovery

Environmental Conditions

Operating temperature

0℃ to 50℃

Cooling

free air convection

Storage temperature

-20℃ to +85℃

Operating Humidity

90% max, non-condensing

Mechanical Specifications

Case Material

Iron

Case Color

Black

Net Weight

560g approx. / unit

Dimensions

110(W) x 40(H) x 140(L) (mm)

Do not include transceiver length

Connectors

AC Inlet

IEC-J-4

LAN

Shielded RJ-45

Fiber

see ordering information





Ordering information



P/N

Description

-

X

X

-

X

X

X

X

FR-POE332-XX-XXXX

10/100/1000M POE (PSE) Media Converter



T:

IEEE802.3at

F:

IEEE802.3af

N:

Non-standard

1:15.4W

2: 25W

3: 30W

5: 50W



S: Duplex Single-mode

M: Duplex Multi-mode

B: Simplex Single-mode

SFP: SFP Slot

3: TX 1310nm

4: TX 1490nm

5: TX 1550nm

8: TX 850nm

S: SC

F: FC

T: ST

L: LC

05: 550M

2: 2KM

20: 20KM

40: 40KM
