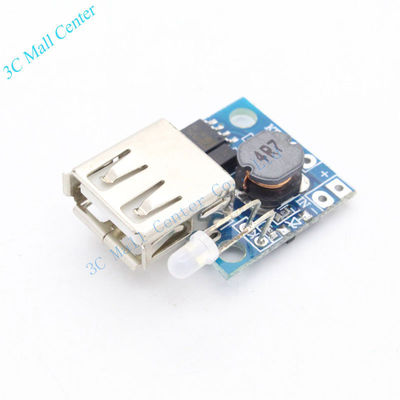

DC-DC 2.6V-5.5V to 5V Step Up Step-up Boost Module Ajustable Power Converter

DC-DC 2.6V-5.5V to 5V Step Up Step-up Boost Module Ajustable Power Converter

DC-DC 2.6V-5.5V to 5V Step Up Step-up Boost Module Ajustable Power Converter

جزئیات محصول:

Place of Origin: guangdong
نام تجاری: DEWANG
گواهی: CE
Model Number: Z0260

پرداخت:

Minimum Order Quantity: 50 pcs
قیمت: $1.92
Packaging Details: 1 x DC-DC Boost Module
Supply Ability: 3,0000 pcs per month
اکنون تماس بگیرید
توضیحات محصول جزئیات

DC-DC 2.6V5.5V to 5V Boost Module Ajustable Power Converter

Description:

Input voltage :2.6-5 .5 V

Output voltage: 5V

Input current :0-3A

Output current :0-2A

Operating temperature: -40 to +85 degrees

Working frequency: 1.2MHz

Conversion efficiency: up to 93% (the efficiency of the input and output voltage, current, differential pressure related)

Over current protection: Yes

Over temperature protection: Yes (over temperature shutdown automatically output)

Input reverse polarity protection: No (if required in the input string into the diode)

Battery indicator lights up red: 3.6V

Identify resistance: Tablet PC, ipad, iphone

Installation: 2pcs of 3mm screws

Connection mode: welded, V-IN input, USB output,

Module size: 20 x 20 x 6.8mm

Applications:
This module can be applied in a single lithium battery or 5V-12V output charging for general digital products, such as mobile phones, Ipad, MP3, PSP. Itself with the charging circuit and the battery indicator circuit, only used to connect the battery can become a high-current output mobile power. Can also set the output voltage of 5-12V supply

Package Included:

1 x DC-DC Boost Module



DC-DC 2.6V-5.5V to 5V Step Up Step-up Boost Module Ajustable Power Converter
