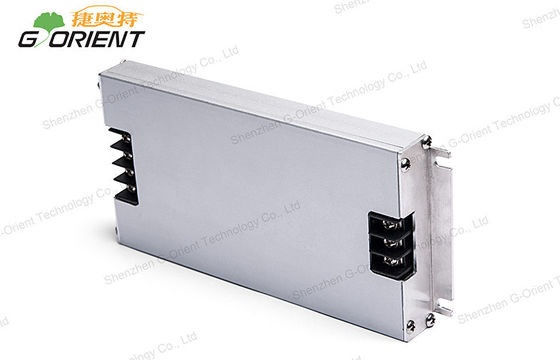

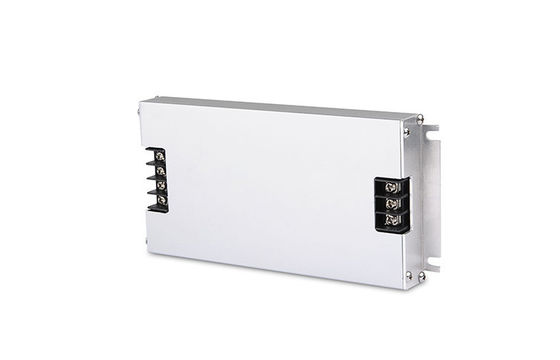

Automobile Car LED Power Supply 180W 4.5V / 40A DC DC Converters

جزئیات محصول:

Place of Origin:	China
نام تجاری:	G-ORIENT
گواهی:	ISO9001 / CE / ROHS / FCC
Model Number:	NHD200-4.5E

پرداخت:

Minimum Order Quantity:	10pcs
قیمت:	negotiable
Packaging Details:	20pcs/12Kgs / CARTONS
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, Paypal, L/C, Western Union
Supply Ability:	50,000pcs per month

مخاطب

توضیحات محصول جزئیات

Operating temperature:	-40℃ ~ +70℃	Output:	4.5V DC / 40A
Output power:	180W	Input:	9-36V DC
High efficiency:	94%	Application:	Car led display, Taxi LED sign
Case material:	Metal, aluminium	Warranty:	2 Years
برجسته:	small power supply,screen power supply , screen power supply

Automobile Car LED Power Supply 180W 4.5V / 40A DC DC Converters

Applications:

This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.

Features:

* Through the EMC certification

* High efficiency 94% & small size

* To prevent car screen flower screen, the splash screen and two horizontal line design

* Low output ripple and noise

* 2 years warranty

* Input reverse connect protection

* Aluminum metal shell,natural cooling

Specifications:

Switching power supply		NHD-200-4.5E
OUTPUT	DC Voltage	4.5V
	Current Range	0~40A
	Rated Current	40A
	Rated Power	180W
	Ripple & Noise(max.)	<100mVp-p
	Voltage set point accuracy	+/- 3.0%Vo max
	Over-current protection	>120%io,hiccup
	Line Regulation	0.2%Vo max
	Load Regulation	0.2%Vo max
	Short-circuit protection	Hiccup
	Hold up time	>8mS
	Overshoot and undershoot	< +/- 5.0%
INPUT	Voltage Range	DC9-36V
	Frequency Range	BW=20MHz
	Efficiency(Typ.)	94%
	DC Current	<25A
	Inrush Current(Typ.)	100A at DC Cold start
	Leakage Current	Input-Output< 0.2mA ; Input-PG:<0.3mA
Environment	MIBF	>2 million hrs
	Temp.Coefficient	< 0.02%/℃
	Storage Temperature range	-55 ~ +115℃
	Operaing board Temperature range	-25 ~ +65℃
Safety	Safety standards	CE
Safety	Withstand Voltage	DC40V
Others	Dimension	1688018mm (LWH)
Others	Packing	0.6kg; 20pcs/12Kgs
