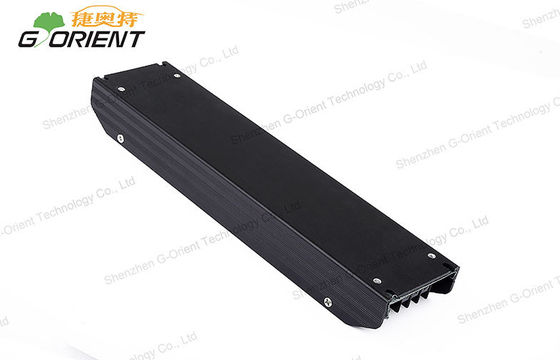

Ultra - thin Advisement player 180W AC DC Converter With over-current

Ultra - thin Advisement player 180W AC DC Converter With over-current

  • Ultra - thin Advisement player 180W AC DC Converter With over-current
Ultra - thin Advisement player 180W AC DC Converter With over-current
جزئیات محصول:
Place of Origin: China
نام تجاری: G-ORIENT
گواهی: ISO9001 / CE / ROHS / FCC
Model Number: NHP200-4.5-A
پرداخت:
Minimum Order Quantity: 10pcs
قیمت: negotiable
Packaging Details: 20pcs/16Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
مخاطب
توضیحات محصول جزئیات
Size: 212*58*29mm Application: LED TV
Output power: 180W Output: 4.5V DC / 40A
Input: 100-240V AC High efficiency: 90%
Power factor: >0.95 Case material: Metal, aluminium
برجسته:

ac to dc power converter,ac to dc converter

,

ac to dc converter



Ultra - thin Advisement player 180W AC DC Converter With over-current





Applications:

* Electrical equipment, Instrumentation;

* Digital and electronic products;

* Advisement player

* LED display,LCD TV, LED TV

* Display screen,LED video wall

* Communications and security products.





Features:

* Synchronous rectification,high power factor>0.95

* High efficiency up to 90%

* Low output ripple and noise,high reliability

* With over-current/over-voltage/short-circuit/over-power protection

* Ultra-low start up temperature -40℃

* 2 years warranty





Specifications:

Switching power supply

 NHP200-4.5-A

 OUTPUT

DC Voltage

 4.5V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 180W

Ripple & Noise(max.)

 <200mVp-p

Regulation

 ≦+/-3%

Leakage current

 ≦3.5mA

 INPUT

Voltage Range

 100-240V AC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 90%

 Environment

Storage Temperature

 -40 ~ +85℃

Operaing Temperature

 -40 ~ +80℃

Relative Humidity

 10%-95%

Cooling

 Natural convection

 Safety

Safety standards

 CE

 Withstand Voltage

Input-output withstand vol.

 3000Vac/10mA/1min

Input-FG withstand vol.

 1500Vac/10mA/1min

Output-FG withstand vol.

 500Vac/10mA/1min

 Others

Dimension

 212*58*29mm (L*W*H)

Packing









Competitive Advantage:

* Ultra-thin 29mm

* High efficiency up to 90%

* Low output ripple and noise

* Output over-current,short-circuit,over-load,over-voltage protection

* Synchronous rectification+PFC

* Ultra-low start up temperature-40℃

* CE / ROHS / FCC approval




Company Advantage:

* Short lead time

* Professional R&D team

* Cheap wholesale price

* High quality products
