Metal 168W Ultra - thin 30mm AC DC Converter Single Output 90KHz

Metal 168W Ultra - thin 30mm AC DC Converter Single Output 90KHz

    • Metal 168W Ultra - thin 30mm AC DC Converter Single Output 90KHz
    • Metal 168W Ultra - thin 30mm AC DC Converter Single Output 90KHz
  • Metal 168W Ultra - thin 30mm AC DC Converter Single Output 90KHz

    جزئیات محصول:

    Place of Origin: China
    نام تجاری: G-ORIENT
    گواهی: ISO9001 / CE / ROHS / FCC
    Model Number: NHI200-4.2-A

    پرداخت:

    Minimum Order Quantity: 10pcs
    قیمت: negotiable
    Packaging Details: 20pcs/16Kgs / CARTONS
    Delivery Time: 10 working days after received your payment
    Payment Terms: T/T, Paypal, L/C, Western Union
    Supply Ability: 50,000pcs per month
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    Output: 4.2V DC / 40A High efficiency: 83%
    Output power: 168W Input: 200-240V AC
    Size: 190*85*30mm Operating temperature: -40℃ ~ +60℃
    Case material: Metal, aluminium Output Type: Single

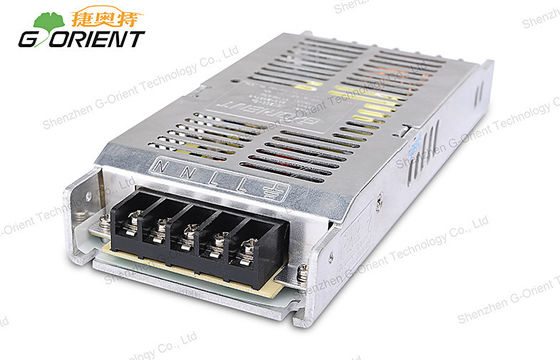

    Metal 168W Ultra - thin 30mm AC DC Converter Single Output 90KHz





    Company Advantage:

    * High quality products

    * Short lead time

    * Professional R&D team

    * Standardized production process





    Features:

    * High efficiency up to 85%

    * Ultra thin 30mm

    * Protections:Short circuit / Overload / Over voltage / Over temperature

    * Built-in constant current limiting circuit

    * 100% full load burn-in test

    * Fixed switching frequency at 90KHz

    * Low cost,high reliability

    * 2 years warranty





    Specifications:

    Switching power supply

     NHI200-4.2-A

     OUTPUT

    DC Voltage

     4.2V

    Current Range

     0~40A

    Rated Current

     40A

    Rated Power

     168W

    Ripple & Noise(max.)

     <250mVp-p

    Voltage ADJ.Range

     3.78~4.62V

    Voltage Tolerance

     +/- 2.0%

    Line Regulation

     +/- 0.5%

    Load Regulation

     +/- 1.0%

    Setup,Rise Time

     1000ms,50ms/230VAC

    Hold up time

     20ms/230VAC

     INPUT

    Voltage Range

     200-240VAC

    Frequency Range

     47-63Hz

    Efficiency(Typ.)

     83-88%

    AC Current

     2.5A/230VAC

    Inrush Current(max.)

     55A/230VAC

    Leakage Current

     < 3.5mA /240VAC

     Protection

    Over Load

     105 ~ 150% rated output power

     Protection type: Constant current limiting,recovers   automatically after fault condition is removed

    Over Voltage

     4.83 ~ 5.88V

     Protection type: Shut down O/P voltage,re-power on to recover

    Over Temperature

     100℃ +/- 5℃

     Protection type: Shut down O/P voltage,recovers automatically after temperature goes down

     Environment

    Working Temp.

     -40 ~ +60℃ (Refer to output load derating curve)

    Working Humidity

     20 ~ 90% RH, non-condensing

    Storage Temp., Humidity

     -40 ~ +85℃, 10 ~ 95% RH

    Temp.Coefficient

     +/-0.03%/℃ (0 ~ 50℃)

    Vibration

     10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes

     Safety

    Safety standards

     UL60950-1 approved

    Withstand Voltage

     I/P-O/P:3KVAC  I/P-FG:1.5KVAC   O/P-FG:0.5KVAC

    Isolation Resistance

     I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH

     Others

    MTBF

     271.9K hrs min. MIL-HDBK-217F(25℃)

    Dimension

     190*85*30mm (L*W*H)

    Packing

     0.8kg; 20pcs/16Kgs

     Note

    1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.

    2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.

    3. Tolerance: includes set up tolerance,line regulation and load regulation.

    4. Please connect positive pole of input voltage with mark”L” of terminal block,connect negative pole of input voltage with mark”N” of terminal block,using DC voltage for input voltage







    Competitive Advantage:

    * Ultra-thin 30mm

    * Ultra-low start up temp.(- 40℃)

    * synchonous rectification

    * High efficiency up to 85%

    * Small size,ultra-light and easy to install

    * CE / ROHS / FCC approval

    * Protections:Short circuit / Overload / Over voltage / Over temperature





    Applications:

    * urban landscape lighting

    * LED Lighting

    * Military project

    * Communication security equipment

    * Indoor and outdoor advertising screens

    * New energy and other Various industries
