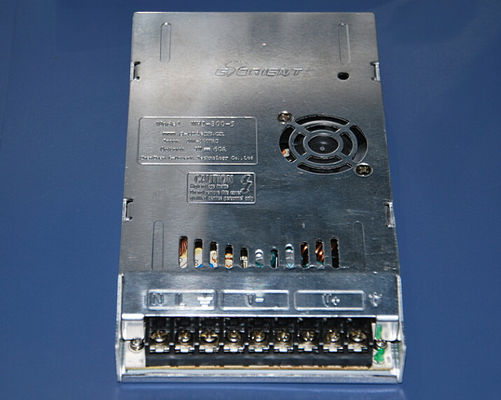

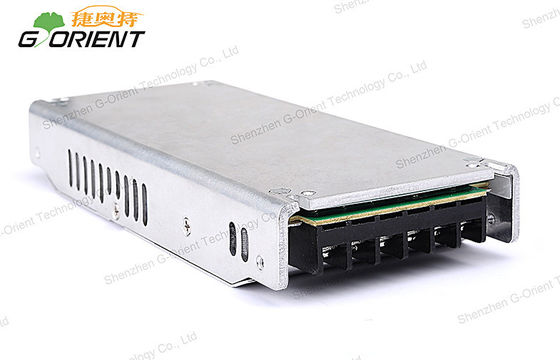

Indoor Constant Voltage 270W AC DC Converter / 60a Power Supply

Indoor Constant Voltage 270W AC DC Converter / 60a Power Supply

  • Indoor  Constant Voltage 270W AC DC Converter / 60a Power Supply
  • Indoor  Constant Voltage 270W AC DC Converter / 60a Power Supply
Indoor  Constant Voltage 270W AC DC Converter / 60a Power Supply
جزئیات محصول:
Place of Origin: China
نام تجاری: G-ORIENT
گواهی: ISO9001 / CE / ROHS / FCC
Model Number: NHI300-4.5-A
پرداخت:
Minimum Order Quantity: 10pcs
قیمت: negotiable
Packaging Details: 20pcs/20Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
مخاطب
توضیحات محصول جزئیات
Size: 196*110*30mm Output power: 270W
High efficiency: 83% Input: 200-240V AC
Operating temperature: -40℃ ~ +60℃ Output: 4.5V DC / 60A
Application: Indoor Standard: CE / ROHS / FCC
برجسته:

ac to dc power converter,ac to dc converter

,

ac to dc converter





Indoor  Constant Voltage 270W AC DC Converter / 60a Power Supply​





Features:

* Protections:Short circuit / Overload / Over voltage / Over temperature

* Cooling by free air convection

* Withstand 300vac surge input for 5 second

* Built-in constant current limiting circuit

* 100% full load burn-in test

* Fixed switching frequency at 90KHz

* Low cost,high reliability

* 2 years warranty





Specifications:

Switching power supply

 NHI300-4.5-A

 OUTPUT

DC Voltage

 4.5V

Current Range

 0~60A

Rated Current

 60A

Rated Power

 270W

Ripple & Noise(max.)

 <200mVp-p

Voltage ADJ.Range

 4.05~5.0V

Voltage Tolerance

 +/- 3.0%

Line Regulation

 +/- 0.5%

Load Regulation

 +/- 2.0%

Setup,Rise Time

 1000ms,50ms/230VAC

Hold up time

 20ms/230VA

 INPUT

Voltage Range

 200-240VAC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 81-85%

AC Current

 4A/230VAC

Inrush Current(max.)

 60A/230VAC

Leakage Current

 < 3.5mA /240VAC

 Protection

Over Load

 105 ~ 135% rated output power

 Protection type: Constant current limiting,recovers   automatically after fault condition is removed

Over Voltage

 5.75 ~ 7.5V

 Protection type: Shut down O/P voltage,re-power on to recover

Over Temperature

 90℃ +/- 5℃

 Protection type: Shut down O/P voltage,recovers automatically after temperature goes down

Function

Fan on/off control(Typ.)

RTH2≧50℃ Fan on,≦45℃ Fan off

 Environment

Working Temp.

 -20 ~ +60℃

Working Humidity

 20 ~ 90% RH, non-condensing

Storage Temp., Humidity

 -20 ~ +85℃, 10 ~ 95% RH

Temp.Coefficient

 +/-0.03%/℃ (0 ~ 50℃)

Vibration

 10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes

 Safety

Safety standards

 UL60950-1 approved

Withstand Voltage

 I/P-O/P:3KVAC  I/P-FG:1.5KVAC   O/P-FG:0.5KVAC

Isolation Resistance

 I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH

 Others

MTBF

 234.3K hrs min. MIL-HDBK-217F(25℃)

Dimension

 196*110*30mm (L*W*H)

Packing

 1.0kg; 20pcs/20Kgs

 Note

1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.

3. Tolerance: includes set up tolerance,line regulation and load regulation.

4. Please connect positive pole of input voltage with mark”L” of terminal block,connect negative pole of input voltage with mark”N” of terminal block,using DC voltage for input voltage







Competitive Advantage:

* Ultra-thin 30mm

* Ultra-low start up temp.(- 30℃)

* synchonous rectification

* High efficiency up to 85%

* Protections:Short circuit / Overload / Over voltage / Over temperature

* Small size,ultra-light and easy to install

* CE / ROHS / FCC approval





Company Advantage:

* High quality products

* Short lead time

* Professional R&D team

* Standardized production process





Applications:

* urban landscape lighting

* LED Lighting

* Stage

* Military project

* Communication security equipment

* indoor and outdoor advertising screens

* New energy and other Various industries
