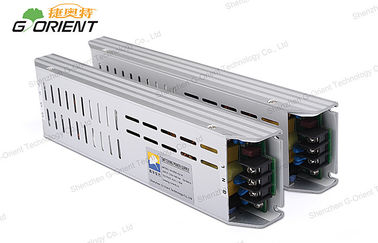

Single Output Switching Power Supply DC4.2V / 40A Isolated Power Supply

Single Output Switching Power Supply DC4.2V / 40A Isolated Power Supply

Single Output Switching Power Supply DC4.2V / 40A Isolated Power Supply

جزئیات محصول:

Place of Origin: China
نام تجاری: G-ORIENT
گواهی: ISO9001 / CE / ROHS / FCC
Model Number: NHP200-4.2-A

پرداخت:

Minimum Order Quantity: 10pcs
قیمت: negotiable
Packaging Details: 20pcs/16Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
اکنون تماس بگیرید
توضیحات محصول جزئیات
Standard: CE / ROHS / FCC Output: 4.2V DC / 40A
Output power: 168W Size: 212*58*29mm
Input: 100-240V AC Application: LED TV





Single Output Switching Power Supply DC4.2V / 40A Isolated Power Supply​





Applications:
* Electrical equipment, Instrumentation;
* Digital and electronic products;
* Advisement player
* LED display,LCD TV, LED TV
* Display screen,LED video wall
* Communications and security products.





Features:
* Synchronous rectification,high power factor>0.95
* High efficiency up to 90%
* Low output ripple and noise,high reliability
* With over-current/over-voltage/short-circuit/over-power protection
* Ultra-low start up temperature -40℃
* 2 years warranty





Specifications:

Switching power supply

 NHP200-4.2-A

 OUTPUT

DC Voltage

 4.2V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 168W

Ripple & Noise(max.)

 <250mVp-p

Regulation

 ≦+/-3%

Leakage current

 ≦3.5mA

 INPUT

Voltage Range

 100-240V AC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 90%

 Environment

Storage Temperature

 -40 ~ +85℃

Operaing Temperature

 -40 ~ +80℃

Relative Humidity

 10%-95%

Cooling

 Natural convection

 Safety

Safety standards

 CE

 Withstand Voltage

Input-output withstand vol.

 3000Vac/10mA/1min

Input-FG withstand vol.

 1500Vac/10mA/1min

Output-FG withstand vol.

 500Vac/10mA/1min

 Others

Dimension

 212*58*29mm (L*W*H)

Packing









Competitive Advantage:
* Ultra-thin 30mm
* Ultra-low start up temp.(- 30℃)
* synchonous rectification
* High efficiency up to 85%
* CE / ROHS / FCC approval
* Small size,ultra-light and easy to install
* Protections:Short circuit / Overload / Over voltage / Over temperature


Company Advantage:
* High quality products
* Short lead time
* Professional R&D team
* Standardized production process
