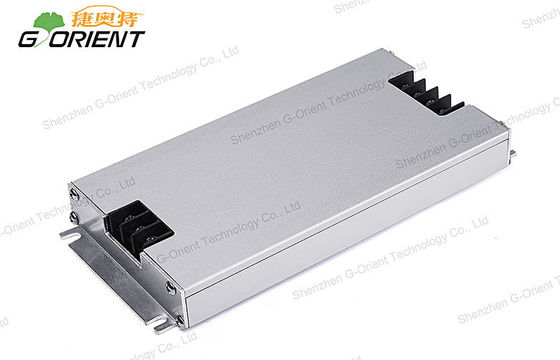

126W 4.2V 30A Switch Power Supply with Aluminum metal shell 2 Years Warranty

126W 4.2V 30A Switch Power Supply with Aluminum metal shell 2 Years Warranty

126W 4.2V 30A Switch Power Supply with Aluminum metal shell 2 Years Warranty

جزئیات محصول:

Place of Origin: China
نام تجاری: G-ORIENT
گواهی: ISO9001 / CE / ROHS / FCC
Model Number: NID150-4.2-A

پرداخت:

Minimum Order Quantity: 10pcs
قیمت: negotiable
Packaging Details: 20pcs/12Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
اکنون تماس بگیرید
توضیحات محصول جزئیات
Size: 152*100*18mm Input: 36-72vdc
Output: 4.2V DC / 30A Output power: 126W
High efficiency: 91% Application: On-board screen, Taxi LED sign





126W 4.2V 30A Switch Power Supply with Aluminum metal shell 2 Years Warranty





Features:

* Input reverse connect protection

* High efficiency 91% & small size

* Low output ripple and noise

* Aluminum metal shell,natural cooling

* Through the EMC certification

* 2 years warranty

* To prevent car screen flower screen, the splash screen and two horizontal line design





Specifications:

Switching power supply

 NID150-4.2-A

 OUTPUT

DC Voltage

 4.2V

Current Range

 0~30A

Rated Current

 30A

Rated Power

 126W

Ripple & Noise(max.)

 <100mVp-p

Voltage set point accuracy

 +/- 3.0%Vo max

Over-current protection

 >120%io,hiccup

Line Regulation

 0.2%Vo max

Load Regulation

 0.2%Vo max

Short-circuit protection

 Hiccup

Hold up time

 >8mS

Overshoot and undershoot

 < +/- 5.0%

 INPUT

Voltage Range

 DC36-72V

Frequency Range

 BW=20MHz

Efficiency(Typ.)

 91%

DC Current

 <2.9A

Inrush Current(Typ.)

 100A at DC Cold start

Leakage Current

 Input-Output< 0.2mA ; Input-PG:<0.3mA

 Environment

MIBF

 >2 million hrs

Temp.Coefficient

 < 0.02%/℃

Storage Temperature range

 -55 ~ +115℃

Operaing board Temperature range

 -30 ~ +75℃

 Safety

Safety standards

 CE

Withstand Voltage

 DC40V

 Others

Dimension

 152*80*18mm (L*W*H)

Packing

 0.6kg; 20pcs/12Kgs





Applications:

This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.





Competitive Advantage:

* Isolated power supply

* Ultra-thin 18mm

* High efficiency up to 91%

* Low output ripple and noise

* Output over-current,short-circuit,over-load,over-voltage protection

* CE / ROHS / FCC approval
