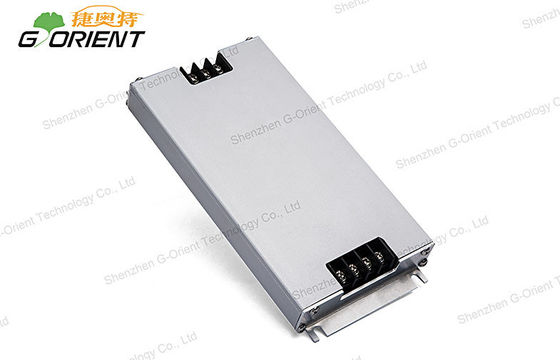

150W 5V / 30A Switch Power Supply for Vehicle / Bus LED Display Board

جزئیات محصول:

Place of Origin:	China
نام تجاری:	G-ORIENT
گواهی:	ISO9001 / CE / ROHS / FCC
Model Number:	NID150-5-A

پرداخت:

Minimum Order Quantity:	10pcs
قیمت:	negotiable
Packaging Details:	20pcs/16Kgs / CARTONS
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, Paypal, L/C, Western Union
Supply Ability:	50,000pcs per month

مخاطب

توضیحات محصول جزئیات

Product Name:	Switch Power Supply	Output power:	150W
Output:	5V DC / 30A	Input:	36-72V DC
Case material:	Metal, aluminium	Size:	1528018mm
IP Grade:	IP20	Application:	On-board screen, Taxi LED sign
برجسته:	switching power supply,single output switching power supply , single output switching power supply

150W 5V / 30A Switch Power Supply for Vehicle / Bus / Car LED Display Board

Applications:

This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use

Competitive Advantage:

* Low output ripple and noise

* Output over-current,short-circuit,over-load,over-voltage protection

* The two level output over voltage protection

* CE / ROHS / FCC approval

Company Advantage:

* High quality products

* Short lead time

* Professional R&D team

* Standardized production process

* Competitive price

* Technical support

* OEM / ODM available

Features:

* To prevent car screen flower screen, the splash screen and two horizontal line design

* Input reverse connect protection

* High efficiency 91% & small size

* Low output ripple and noise

* Aluminum metal shell,natural cooling

* Through the EMC certification

* 2 years warranty

* CE RoHS FCC approved

Specifications:

Switching power supply		NID-150-5-A
OUTPUT	DC Voltage	5V
	Current Range	0~30A
	Rated Current	30A
	Rated Power	150W
	Ripple & Noise(max.)	<100mVp-p
	Voltage set point accuracy	+/- 3.0%Vo max
	Over-current protection	>120%io,hiccup
	Line Regulation	0.2%Vo max
	Load Regulation	0.2%Vo max
	Short-circuit protection	Hiccup
	Hold up time	>8mS
	Overshoot and undershoot	< +/- 5.0%
INPUT	Voltage Range	DC36-72V
	Frequency Range	BW=20MHz
	Efficiency(Typ.)	91%
	DC Current	<2.9A
	Inrush Current(Typ.)	100A at DC Cold start
	Leakage Current	Input-Output< 0.2mA ; Input-PG:<0.3mA
Environment	MIBF	>2 million hrs
	Temp.Coefficient	< 0.02%/℃
	Storage Temperature range	-55 ~ +115℃
	Operaing board Temperature range	-30 ~ +75℃
Safety	Safety standards	CE
Safety	Withstand Voltage	DC40V
Others	Dimension	1528018mm (LWH)
Others	Packing	0.6kg; 20pcs/12Kgs
