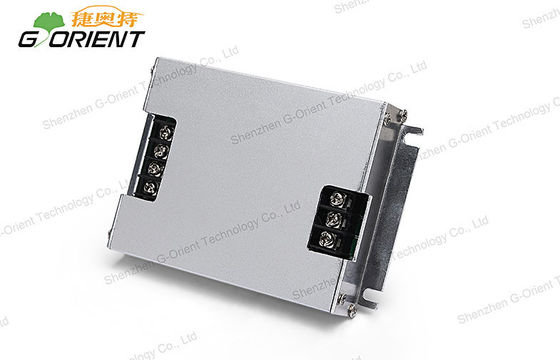

DC to DC Switch Power Supply 20A 90Watts for Automobile LED Electronic Signs

DC to DC Switch Power Supply 20A 90Watts for Automobile LED Electronic Signs

DC to DC Switch Power Supply 20A 90Watts for Automobile LED Electronic Signs

جزئیات محصول:

Place of Origin: China
نام تجاری: G-ORIENT
گواهی: ISO9001 / CE / ROHS / FCC
Model Number: NHD100-4.5-A

پرداخت:

Minimum Order Quantity: 10pcs
قیمت: negotiable
Packaging Details: 30pcs/15Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
اکنون تماس بگیرید
توضیحات محصول جزئیات
Size: 120*80*18mm Input: 9-36V DC
Output: 4.5V DC / 20A Output power: 90W
Standard: CE / ROHS / FCC Ripple & Noise: ≤100mVp-p





DC to DC Switch Power Supply 20A 90Watts for Automobile LED Electronic Signs





Features:

* To prevent car screen flower screen, the splash screen and two horizontal line design

* Input reverse connect protection

* High efficiency 94% & small size

* Low output ripple and noise

* Aluminum metal shell,natural cooling

* Through the EMC certification

* 2 years warranty





Applications:

This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.





Specifications:

Switching power supply

 NHD-100-4.5-E

 OUTPUT

DC Voltage

 4.5V

Current Range

 0~20A

Rated Current

 20A

Rated Power

 90W

Ripple & Noise(max.)

 <100mVp-p

Voltage set point accuracy

 +/- 3.0%Vo max

Over-current protection

 >120%io,hiccup

Line Regulation

 0.2%Vo max

Load Regulation

 0.2%Vo max

Short-circuit protection

 Hiccup

Hold up time

 >8mS

Overshoot and undershoot

 < +/- 5.0%

 INPUT

Voltage Range

 DC9-36V

Frequency Range

 BW=20MHz

Efficiency(Typ.)

 94%

DC Current

 <2.9A

Inrush Current(Typ.)

 100A at DC Cold start

Leakage Current

 Input-Output< 0.2mA ; Input-PG:<0.3mA

 Environment

MIBF

 >2 million hrs

Temp.Coefficient

 < 0.02%/℃

Storage Temperature range

 -55 ~ +115℃

Operaing board Temperature range

 -30 ~ +75℃

 Safety

Safety standards

 CE

Withstand Voltage

 DC40V

 Others

Dimension

 120*80*18mm (L*W*H)

Packing

 0.45kg; 30pcs/15Kgs







Competitive Advantage:

* Ultra-thin 18mm

* High efficiency up to 94%

* Low output ripple and noise

* Output over-current,short-circuit,over-load,over-voltage protection

* The two level output over voltage protection

* CE / ROHS / FCC approval





Company Advantage:

* High quality products

* Short lead time

* Professional R&D team

* Standardized production process
