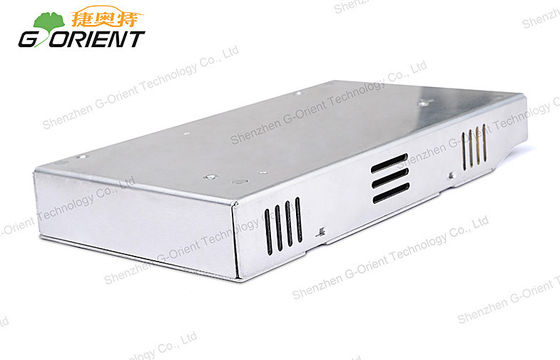

Thickness 30mm Single Output Regulated Power Supply 200Watts for LED Display

Thickness 30mm Single Output Regulated Power Supply 200Watts for LED Display

    • Thickness 30mm Single Output Regulated Power Supply 200Watts for LED Display
    • Thickness 30mm Single Output Regulated Power Supply 200Watts for LED Display
  • Thickness 30mm Single Output Regulated Power Supply 200Watts for LED Display

    جزئیات محصول:

    Place of Origin: China
    نام تجاری: G-ORIENT
    گواهی: ISO9001 / CE / ROHS / FCC
    Model Number: NHI200-5-A

    پرداخت:

    Minimum Order Quantity: 10pcs
    قیمت: negotiable
    Packaging Details: 20pcs/16Kgs / CARTONS,Carton Size:33*20*18cm
    Delivery Time: 10 - 15 working days after received your payment
    Payment Terms: T/T, Paypal, Western Union, L/C
    Supply Ability: 50,000pcs per month
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    Size: 190*85*30mm High efficienc: 85%
    Output Type: Single IP Grade: IP20
    Output Power: 200W Input: 200-240V AC
    Output: 5V/40A Case material: Metal, aluminium





    Thickness 30mm Single Output Regulated Power Supply 200Watts for LED Display​





    Applications:

    * urban landscape lighting

    * LED Lighting

    * Stage

    * Military project

    * Communication security equipment

    * indoor and outdoor advertising screens

    * New energy and other Various industries





    Features:

    * Fixed switching frequency at 90KHz

    * Low cost,high reliability

    * Protections:Short circuit / Overload / Over voltage / Over temperature

    * Cooling by free air convection

    * Withstand 300vac surge input for 5 second

    * 2 years warranty

    * Built-in constant current limiting circuit

    * 100% full load burn-in test





    Specifications:

    Switching power supply

     NHI200-5-A

     OUTPUT

    DC Voltage

     5V

    Current Range

     0~40A

    Rated Current

     40A

    Rated Power

     200W

    Ripple & Noise(max.)

     <250mVp-p

    Voltage ADJ.Range

     4.5~5.6V

    Voltage Tolerance

     +/- 2.0%

    Line Regulation

     +/- 0.5%

    Load Regulation

     +/- 1.0%

    Setup,Rise Time

     1000ms,50ms/230VAC

    Hold up time

     20ms/230VAC

     INPUT

    Voltage Range

     200-240VAC

    Frequency Range

     47-63Hz

    Efficiency(Typ.)

     83-88%

    AC Current

     2.5A/230VAC

    Inrush Current(max.)

     55A/230VAC

    Leakage Current

     < 3.5mA /240VAC

     Protection

    Over Load

     105 ~ 150% rated output power

     Protection type: Constant current limiting,recovers   automatically after fault condition is removed

    Over Voltage

     5.75~ 7.0V

     Protection type: Shut down O/P voltage,re-power on to recover

    Over Temperature

     100℃ +/- 5℃

     Protection type: Shut down O/P voltage,recovers automatically after temperature goes down

     Environment

    Working Temp.

     -20 ~ +50℃ (Refer to output load derating curve)

    Working Humidity

     20 ~ 90% RH, non-condensing

    Storage Temp., Humidity

     -20 ~ +85℃, 10 ~ 95% RH

    Temp.Coefficient

     +/-0.03%/℃ (0 ~ 50℃)

    Vibration

     10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes

     Safety

    Safety standards

     UL60950-1 approved

    Withstand Voltage

     I/P-O/P:3KVAC  I/P-FG:1.5KVAC   O/P-FG:0.5KVAC

    Isolation Resistance

     I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH

     Others

    MTBF

     271.9K hrs min. MIL-HDBK-217F(25℃)

    Dimension

     190*85*30mm (L*W*H)

    Packing

     0.8kg; 20pcs/16Kgs

     Note

    1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.

    2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.

    3. Tolerance: includes set up tolerance,line regulation and load regulation.

    4. Please connect positive pole of input voltage with mark”L” of terminal block,connect negative pole of input voltage with mark”N” of terminal block,using DC voltage for input voltage







    Competitive Advantage:

    * CE / ROHS / FCC approval* synchonous rectification

    * High efficiency up to 85%

    * Protections:Short circuit / Overload / Over voltage / Over temperature

    * Ultra-thin 30mm

    * Ultra-low start up temp.(- 40℃)

    * Small size,ultra-light and easy to install





    Company Advantage:

    * High quality products

    * Short lead time

    * Professional R&D team

    * Standardized production process
