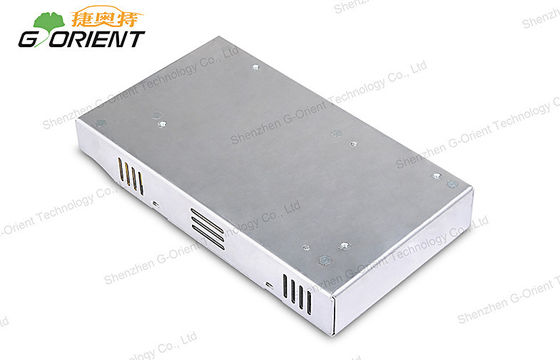

DC5V Single Output Switching 60A Power Supply With 2 Year Guarantee

جزئیات محصول:

Place of Origin:	China
نام تجاری:	G-ORIENT
گواهی:	ISO9001 / CE / ROHS / FCC
Model Number:	NHI300-5-A

پرداخت:

Minimum Order Quantity:	10pcs
قیمت:	negotiable
Packaging Details:	20pcs/20Kgs / CARTONS,Carton Size:312124cm
Delivery Time:	10 - 15 working days after received your payment
Payment Terms:	T/T, Paypal, Western Union, L/C
Supply Ability:	50,000pcs per month

مخاطب

توضیحات محصول جزئیات

Output power:	300W	Output:	5V DC / 60A
Operating temperature:	-40℃ ~ +60℃	Output Type:	Single
Input:	200-240V AC	Size:	19611030mm
High efficiency:	85%	Standard:	CE / ROHS / FCC
برجسته:	led light power supply,led power supplies , led power supplies

DC5V Single Output Switching 60A Power Supply With 2 Year Guarantee

Features:
* AC input range selectable by switch
* Withstand 300vac surge input for 5 second
* Built-in constant current limiting circuit
* 100% full load burn-in test

* Protections:Short circuit / Overload / Over voltage / Over temperature
* Cooling by free air convection
* Fixed switching frequency at 90KHz

Company Advantage:

* Short lead time
* Professional R&D team
* High quality products
* Standardized production process

Specifications:

Switching power supply		NHI300-5-A
OUTPUT	DC Voltage	5V
	Current Range	0~60A
	Rated Current	60A
	Rated Power	300W
	Ripple & Noise(max.)	<250mVp-p
	Voltage ADJ.Range	4.5~5.6V
	Voltage Tolerance	+/- 2.0%
	Line Regulation	+/- 0.5%
	Load Regulation	+/- 1.0%
	Setup,Rise Time	1000ms,50ms/230VAC
	Hold up time	20ms/230VAC
INPUT	Voltage Range	200-240VAC
	Frequency Range	47-63Hz
	Efficiency(Typ.)	83-88%
	AC Current	4A/230VAC
	Inrush Current(max.)	60A/230VAC
	Leakage Current	< 3.5mA /240VAC
Protection	Over Load	105 ~ 150% rated output power
	Over Load	Protection type: Constant current limiting,recovers automatically after fault condition is removed
	Over Voltage	5.75~ 7.0V
	Over Voltage	Protection type: Shut down O/P voltage,re-power on to recover
	Over Temperature	90℃ +/- 5℃
	Over Temperature	Protection type: Shut down O/P voltage,recovers automatically after temperature goes down
Function	Fan on/off control(Typ.)	RTH2≧50℃ Fan on,≦45℃ Fan off
Environment	Working Temp.	-20 ~ +60℃ (Refer to output load derating curve)
	Working Humidity	20 ~ 90% RH, non-condensing
	Storage Temp., Humidity	-20 ~ +85℃, 10 ~ 95% RH
	Temp.Coefficient	+/-0.03%/℃ (0 ~ 50℃)
	Vibration	10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes

Competitive Advantage:

* Small size,ultra-light and easy to install
* CE / ROHS / FCC approval
* synchonous rectification
* High efficiency up to 85%

* Ultra-thin 30mm
* Ultra-low start up temp.(- 40℃)
* Protections:Short circuit / Overload / Over voltage / Over temperature

Applications:
* Products can be used to street lamps, lawn lamps, sunlight lamps, LED lighting
* Adornment: LED lamp, LED luminaire , LED strips, LED screens, advertisement screens
* Industrial electrical products, machinery and electrical equipment, security system, air purifier
