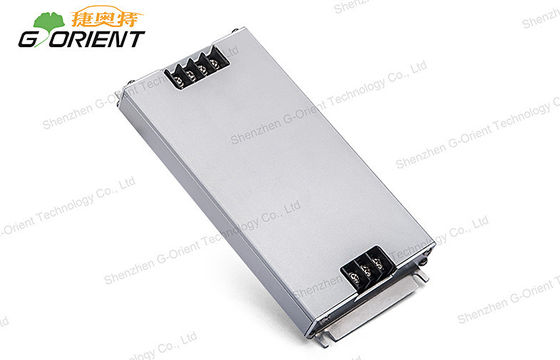

168W Single Output Car Led Power Supply 4.2V / 40A with High Efficiency 94%

168W Single Output Car Led Power Supply 4.2V / 40A with High Efficiency 94%

168W Single Output Car Led Power Supply  4.2V / 40A with High Efficiency 94%

جزئیات محصول:

Place of Origin: China
نام تجاری: G-ORIENT
گواهی: ISO9001 / CE / ROHS / FCC
Model Number: NHD200-4.2-E

پرداخت:

Minimum Order Quantity: 10pcs
قیمت: negotiable
Packaging Details: 20pcs/12Kgs / CARTONS,Carton Size:36*17*22cm
Delivery Time: 10 - 15 working days after received your payment
Payment Terms: T/T, Paypal, Western Union, L/C
Supply Ability: 50,000pcs per month
اکنون تماس بگیرید
توضیحات محصول جزئیات
Input: 9-36V DC Output: 4.2V DC / 40A
Standard: CE / ROHS / FCC Ripple & Noise: ≤100mVp-p
Output Power: 168W Operating temperature: -40℃ ~ +60℃
Size: 168*80*18mm IP Grade: IP20





168W Single Output Car Led Power Supply  4.2V / 40A with High Efficiency 94%




Applications:

This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.





Features:

* To prevent car screen flower screen, the splash screen and two horizontal line design

* Input reverse connect protection

* High efficiency 94% & small size

* Low output ripple and noise

* Aluminum metal shell,natural cooling

* Through the EMC certification

* 2 years warranty



Specifications:

Switching power supply

 NHD-200-4.2E

 OUTPUT

DC Voltage

 4.2V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 168W

Ripple & Noise(max.)

 <100mVp-p

Voltage set point accuracy

 +/- 3.0%Vo max

Over-current protection

 >120%io,hiccup

Line Regulation

 0.2%Vo max

Load Regulation

 0.2%Vo max

Short-circuit protection

 Hiccup

Hold up time

 >8mS

Overshoot and undershoot

 < +/- 5.0%

 INPUT

Voltage Range

 DC9-36V

Frequency Range

 BW=20MHz

Efficiency(Typ.)

 94%

DC Current

 <2.9A

Inrush Current(Typ.)

 100A at DC Cold start

Leakage Current

 Input-Output< 0.2mA ; Input-PG:<0.3mA

 Environment

MIBF

 >2 million hrs

Temp.Coefficient

 < 0.02%/℃

Storage Temperature range

 -55 ~ +115℃

Operaing board Temperature range

 -25 ~ +65℃

 Safety

Safety standards

 CE

Withstand Voltage

 DC40V

 Others

Dimension

 168*80*18mm (L*W*H)

Packing

 0.6kg; 20pcs/12Kgs






Competitive Advantage:

* Ultra-thin 18mm

* High efficiency up to 94%

* Low output ripple and noise

* Output over-current,short-circuit,over-load,over-voltage protection

* The two level output over voltage protection

* CE / ROHS / FCC approval





Company Advantage:

* High quality products

* Short lead time

* Professional R&D team

* Standardized production process
