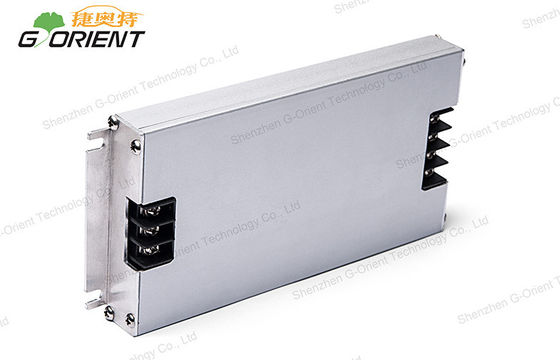

Metal Single Output Switching Power Supply for Taxi Roof LED Sign

Metal Single Output Switching Power Supply for Taxi Roof LED Sign

  • Metal Single Output Switching Power Supply for Taxi Roof LED Sign
Metal Single Output Switching Power Supply for Taxi Roof LED Sign
جزئیات محصول:
Place of Origin: China
نام تجاری: G-ORIENT
گواهی: ISO9001 / CE / ROHS / FCC
Model Number: NHD-200-5E
پرداخت:
Minimum Order Quantity: 10pcs
قیمت: negotiable
Packaging Details: 20pcs/12Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, Western Union, L/C
Supply Ability: 50,000pcs per month
مخاطب
توضیحات محصول جزئیات
Size: 168*80*18mm Input: 9-36V DC
Application: On-board screen, Taxi LED sign Case material: Metal, aluminium
Output: 5V 40A Output Powerr: 200W
High efficiency: 94% Operating temperature: -40℃ ~ +70℃
برجسته:

led power supplies,adjustable power supply

,

adjustable power supply





Metal Single Output Switching Power Supply for Taxi Roof LED Sign





Applications:

This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.





Company Advantage:

1. Your inquiry related to our products or price will be replied in 24hrs

2. OEM&ODM,any your customized lightings we can help you to design and put into product

3. Distributorship are offered for your unique design and some our current models

4. Protection of your sales area,ideas of design and all your private information

5. Top Quality+Reasonable Price+Responsible After Service=Successful & Win





Features:

* Low output ripple and noise

* To prevent car screen flower screen, the splash screen and two horizontal line design

* Aluminum metal shell,natural cooling

* Through the EMC certification

* 2 years warranty

* Input reverse connect protection

* High efficiency 94% & small size





Specifications:

Switching power supply

 NHD-200-5E

 OUTPUT

DC Voltage

 5V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 200W

Ripple & Noise(max.)

 <200mVp-p

Voltage set point accuracy

 +/- 3.0%Vo max

Over-current protection

 >120%io,hiccup

Line Regulation

 0.2%Vo max

Load Regulation

 0.2%Vo max

Short-circuit protection

 Hiccup

Hold up time

 >8mS

Overshoot and undershoot

 < +/- 5.0%

 INPUT

Voltage Range

 DC9-36V

Frequency Range

 BW=20MHz

Efficiency(Typ.)

 94%

DC Current

 <25A

Inrush Current(Typ.)

 100A at DC Cold start

Leakage Current

 Input-Output< 0.2mA ; Input-PG:<0.3mA

 Environment

MIBF

 >2 million hrs

Temp.Coefficient

 < 0.02%/℃

Storage Temperature range

 -55 ~ +115℃

Operaing board Temperature range

 -25 ~ +65℃

 Safety

Safety standards

 CE

Withstand Voltage

 DC40V

 Others

Dimension

 152*100*18mm (L*W*H)

Packing

 0.6kg; 20pcs/12Kgs

 Note









Competitive Advantage:

* CE / ROHS / FCC approval* Low output ripple and noise

* Output over-current,short-circuit,over-load,over-voltage protection

* Ultra-thin 18mm

* High efficiency up to 94%

* The two level output over voltage protection
