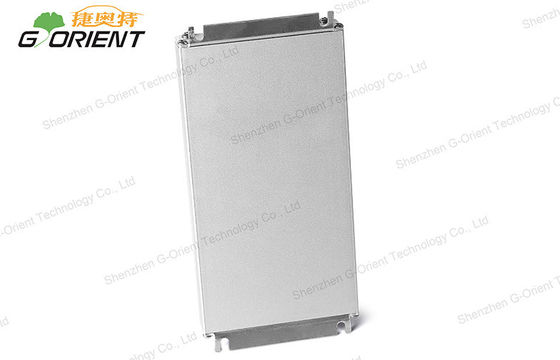

Single Output High Power Switching Power Supply Universal 200W for Car LED Display

جزئیات محصول:

Place of Origin:	China
نام تجاری:	G-ORIENT
گواهی:	ISO9001 / CE / ROHS / FCC
Model Number:	NHD200-5-E

پرداخت:

Minimum Order Quantity:	10pcs
قیمت:	negotiable
Packaging Details:	20pcs/12Kgs / CARTONS
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, Paypal, Western Union, L/C
Supply Ability:	50,000pcs per month

مخاطب

توضیحات محصول جزئیات

Size:	1688018mm	High efficiency:	94%
Application:	On-board screen, Taxi LED sign	Standard:	CE / ROHS / FCC
Output power:	200W	Input:	9-36V DC
Output:	5V DC / 40A	Operating temperature:	-30℃ ~ +60℃
برجسته:	switching regulator power supply,switched mode power supply , switched mode power supply

Single Output High Power Switching Power Supply Universal 200W for Car LED Display

Competitive Advantage:
* The two level output over voltage protection
* Output over-current,short-circuit,over-load,over-voltage protection
* Ultra-thin 18mm
* High efficiency up to 94%
* CE / ROHS / FCC approval* Low output ripple and noise

Applications:
This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.

Specifications:

Switching power supply		NHD-200-5E
OUTPUT	DC Voltage	5V
	Current Range	0~40A
	Rated Current	40A
	Rated Power	200W
	Ripple & Noise(max.)	<100mVp-p
	Voltage set point accuracy	+/- 3.0%Vo max
	Over-current protection	>120%io,hiccup
	Line Regulation	0.2%Vo max
	Load Regulation	0.2%Vo max
	Short-circuit protection	Hiccup
	Hold up time	>8mS
	Overshoot and undershoot	< +/- 5.0%
INPUT	Voltage Range	DC9-36V
	Frequency Range	BW=20MHz
	Efficiency(Typ.)	94%
	DC Current	<25A
	Inrush Current(Typ.)	100A at DC Cold start
	Leakage Current	Input-Output< 0.2mA ; Input-PG:<0.3mA
Environment	MIBF	>2 million hrs
	Temp.Coefficient	< 0.02%/℃
	Storage Temperature range	-55 ~ +115℃
	Operaing board Temperature range	-25 ~ +65℃
Safety	Safety standards	CE
Safety	Withstand Voltage	DC40V
Others	Dimension	1688018mm (LWH)
Others	Packing	0.6kg; 20pcs/12Kgs

Features:
* Input reverse connect protection
* High efficiency 94% & small size
* Low output ripple and noise
* Through the EMC certification
* Aluminum metal shell,natural cooling
* 2 years warranty
* To prevent car screen flower screen, the splash screen and two horizontal line design
