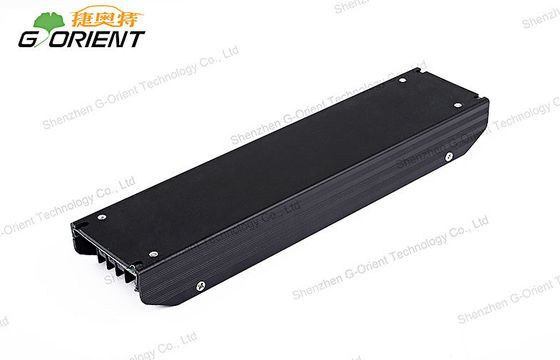

Output 4.2V 40A 168W AC / DC Switching Power Supply Natural convection Cooling

جزئیات محصول:

Place of Origin:	China
نام تجاری:	G-ORIENT
گواهی:	ISO9001 / CE / ROHS / FCC
Model Number:	NHP200-4.2-A

پرداخت:

Minimum Order Quantity:	10pcs
قیمت:	negotiable
Packaging Details:	20pcs/16Kgs / CARTONS
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, Paypal, L/C, Western Union
Supply Ability:	50,000pcs per month

مخاطب

توضیحات محصول جزئیات

High efficiency:	90%	Application:	LED TV
Output power:	168W	Output:	4.2V DC / 40A
Input:	100-240V AC	Power factor:	>0.95
Case material:	Metal, aluminium	IP Grade:	IP20
برجسته:	universal power supply,high voltage power supply , high voltage power supply

Output 4.2V 40A 168W AC / DC Switching Power Supply Natural convection Cooling

Applications:
* Electrical equipment, Instrumentation;
* Digital and electronic products;
* Advisement player
* LED display,LCD TV, LED TV
* Display screen,LED video wall
* Communications and security products.

Features:
* Synchronous rectification,high power factor>0.95
* High efficiency up to 90%
* Low output ripple and noise,high reliability
* With over-current/over-voltage/short-circuit/over-power protection
* Ultra-low start up temperature -40℃
* 2 years warranty

Specifications:

Switching power supply		NHP200-4.2-A
OUTPUT	DC Voltage	4.2V
	Current Range	0~40A
	Rated Current	40A
	Rated Power	168W
	Ripple & Noise(max.)	<250mVp-p
	Regulation	≦+/-3%
	Leakage current	≦3.5mA
INPUT	Voltage Range	100-240V AC
	Frequency Range	47-63Hz
	Efficiency(Typ.)	90%
Environment	Storage Temperature	-40 ~ +85℃
	Operaing Temperature	-40 ~ +80℃
	Relative Humidity	10%-95%
	Cooling	Natural convection
Safety	Safety standards	CE
Withstand Voltage	Input-output withstand vol.	3000Vac/10mA/1min
	Input-FG withstand vol.	1500Vac/10mA/1min
	Output-FG withstand vol.	500Vac/10mA/1min
Others	Dimension	2125829mm (LWH)
Others	Packing
Note
Note

Competitive Advantage:
* Ultra-thin 30mm
* Ultra-low start up temp.(- 30℃)
* synchonous rectification
* High efficiency up to 85%
* CE / ROHS / FCC approval
* Small size,ultra-light and easy to install
* Protections:Short circuit / Overload / Over voltage / Over temperature

Company Advantage:
* High quality products
* Short lead time
* Professional R&D team
* Standardized production process
