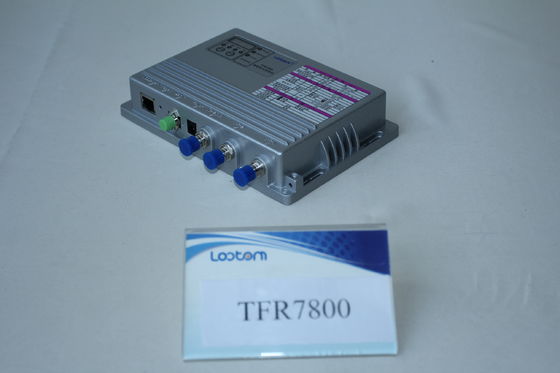

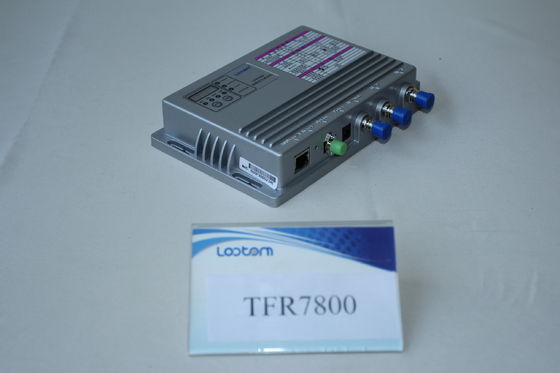

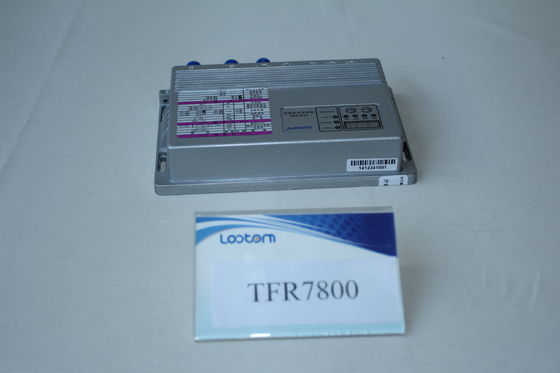

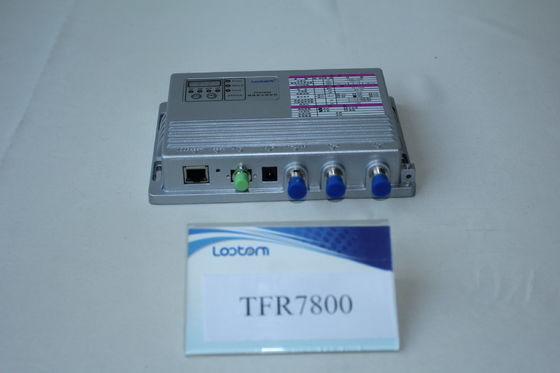

Low Power SNMP AGC FTTB Optical Receiver TFR7800

Low Power SNMP AGC FTTB Optical Receiver TFR7800

    • Low Power SNMP AGC FTTB Optical Receiver TFR7800
    • Low Power SNMP AGC FTTB Optical Receiver TFR7800
    • Low Power SNMP AGC FTTB Optical Receiver TFR7800
    • Low Power SNMP AGC FTTB Optical Receiver TFR7800
  • Low Power SNMP AGC FTTB Optical Receiver TFR7800

    جزئیات محصول:

    Place of Origin: China
    نام تجاری: LOOTOM
    گواهی: CE,ROHS
    Model Number: TFR7800

    پرداخت:

    Minimum Order Quantity: 1pcs
    قیمت: USD 50.00
    Packaging Details: carton
    Delivery Time: 5-10 days
    Payment Terms: L/C,T/T,PAYPAL
    Supply Ability: 50 Piece/Pieces per Month
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    Bandwidth: 47~1000BMHz Input Power: -9~+3dBm
    AGC Range: -8~+2dBm Output Ports: 1~2
    Output Level: 106dBuV SNMP: Optional


    One - Way Optical Receiver HFC Terminal Optical Devices , TFR7800 Building Optical Receiver


    Overview

    TFR7800 building optical receiver is indoor rainproof one-way optical receiver with two ports, can be used in the CATV network, digital network and telecom network . Especially in fiber to building, its out ports cover the CATV network with small volume and many function. Adopting high-quality high-frequency detector.RF is amplified by low power consumption, high-liner GaAs amplifier chip.

    TFR7800 building optical receiver ‘s receiving optical power range is -9 ~ +3DBM. AGC range is  -8 ~-+2 DBM, optical output level of each RF out port reaches 102 dbuv. When optical receiving power is - 6 DBM, C/N is larger than 46 db and MER is more than 35 db. Besides users can choose high out configuration. Within the AGC range of -6—+2dBm, output of single port can up to 110dBm.


    There is a external thigh-quality switch power adapter with 3C certification to convert AC220V or AC60V  to DC supplying power for the optical receiver.Displaying optical power and level. Balance and damping control are adjustable. Users can choose NM transponder meeting national NM standard. It supports remote control of balance and damping and minoring of out level.

    Features

    •  Working bandwidth:47-1000MHZ
    •  Meeting SNMP NM standard and supporting remote and local setting and management of the receiver.
    •  Perfect surge suppression circuitry, improved the  anti-lightning strike and the prevention of lightning surge shocks
    •  AGC range:-8~+2dBm or -6~+2dBm, receiving optical power range :-9~+3dBm
    •  Input stage adopt imported low-noise GaAs amplifier, output stage adopt imported  CATV high-pertableance, high reliability GaAs power multiplier module,greatly improved the C/N and non-linear distortion characteristics while significantly reducing the power consumption
    •  Rigorous reliability test,MTBF >100,000 hours
    •  Photo detector:high-quality device which responsiveness is greater than 0.9A/W
    •  Supporting a real-time display of OP,RF,ATT,EQ and working status and setting of ATT and EQ.
    •  There is a external thigh-quality switch power adapter with 3C certification.

     Low Power SNMP AGC FTTB Optical Receiver TFR7800
    Diagram





    Technical parameters

    Optical

    Optical Wavelength

    nm

    1310~1550



    Optical Connector Type



    FC/APC or SC/APC



    Received Optical Power Range

    dBm

    -9~+3



    Optical AGC Control Range

    dBm

    -8~+2

    High output:-6—+2

    RF

    Frequency Range

    MHz

    47~1000



    Flatness

    dB

    ±0.75



    RF Ports



    1~2

    Branch/Distribution

    Optional

    Nominal Output Level(received optical power is +1~-6dBm)

    dBuV

    102

    dual output port

    Test port

    dB

    -20±1



    RF Output Impedance

    Ω

    75

    1dB step

     Gain Adjustment Range

    dB

    0~12

    3dB step

    Slope Adjustment Range *

    dB

    0~12

    3dB step

    Output Return Loss

    dB

    ≥16(47-550MHz)
    ≥14(>550MHz)



    equivalent input noise current

    PA /Low Power SNMP AGC FTTB Optical Receiver TFR7800

    ≤8



    Link Index

    C/N

    dB

    >47

    Optical receive

    power -3dBm,

    Single-port

    level 104dBuV

    flat output;

    CTB

    dBc

    >65

    CSO

    dBc

    >66

    General

    Dimension

    mm

    185×118×36



    Input Voltage

    Vac

    160-220



    Output voltage

    V

    12



    Power Consumption

    VA

    <7



    Operating Temperature

    -25~+65



    Storage Temperature

    -40~+80

    Non-condensation

    Weight

    Kg

    0.5
