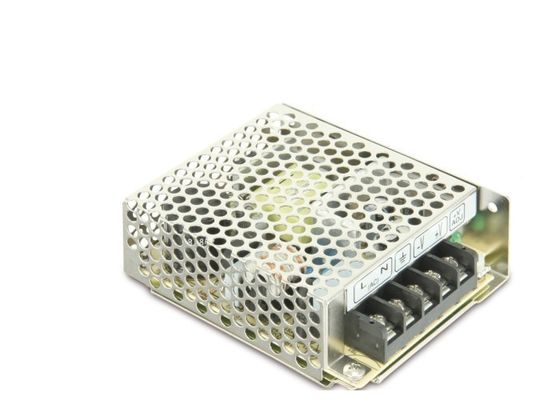

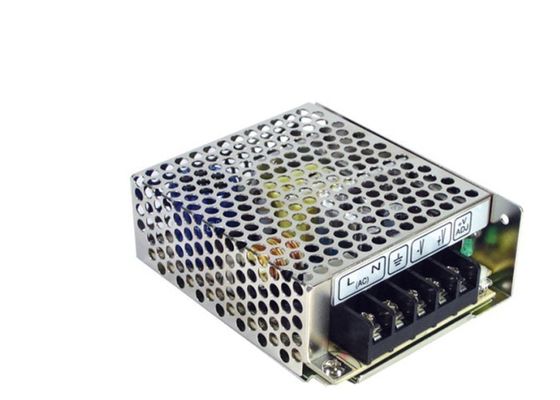

35w AC DC LED Power Supply LED Driver 12V RS-35 Constant Voltage
G3 Series RS-35 Enclosed Switching Power Supply Features:
1. Universal AC input / Full range
2. Protections: Short circuit / Over load / Over voltage
3. Cooling by free air convection
4. LED indicator for power on
5. 100% full load burn-in test
6. No load power consumption <0.5W
7. All using 105 celsius long life electrolytic capacitors
8. Withstand 300VAC surge input for 5 second
9. High operating temperature up to 70
10. Withstand 5G vibration test
11. High efficiency, long life and high reliability
12. 3 years warranty
Meanwell G3 Series AC Switching Power Adapter:
RS-15 / RS-25 / RS-35 / RS-50 / RS-75 / RS-100 / RS-150
RD-35 / RD-50 / RD-65 / RD-85 / RD-125
RID-50 / RID-65 / RID-85 / RID-125, RT-50 / RT-65 / RT-85 / RT-125
RQ-50 / RQ-65 / RQ-85 / RQ-125
Quick Details:
| 35W - Single Output |
| Model No. |
Output |
Tol. |
R&N |
Effi. |
| RS-35-3.3 |
3.3V, 0~7.0A |
±3% |
80mV |
76.5% |
| RS-35-5 |
5V, 0~7.0A |
±2% |
80mV |
80.5% |
| RS-35-12 |
12V, 0~3.0A |
±1% |
120mV |
84.5% |
| RS-35-15 |
15V, 0~2.4A |
±1% |
120mV |
86.0% |
| RS-35-24 |
24V, 0~1.5A |
±1% |
200mV |
88.0% |
| RS-35-48 |
48V, 0~0.8A |
±1% |
200mV |
88.5% |
General Specifications:
| Model No. |
RS-35
RD-35 |
| AC input voltage range |
85~264VAC, 120~373VDC |
| AC inrush current (max.) |
36A at 230VAC |
| DC adjustment range |
±10% by potentiometer for single output;
CH1 -5%~+10% by potentiometer for multiple output
|
| Overload protection |
110%~150% hiccup mode, auto-recovery (150% ~190% for RID-125-1205/2405) |
| Over voltage protection |
115%~135% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage |
I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute |
| Working temperature |
-25~+70°C (refer to the derating curve for different models) |
| Vibration |
10~500Hz, 5G 10min. /1 cycle, period for 60 min.
each along X, Y, Z axes
|
| Safety standards |
UL60950-1, TUV EN60950-1 approved |
| EMC standards |
EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,
EN61000-6-2 (EN50082-2) (35~150W)
|
| Connection |
Terminal block for input and output |
| Dimension (LxWxH)(mm) |
99x 82x 36 |
| Case No. |
932A |
| Packing |
45pcs /14.0kg |
NOTE:
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 celsius of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12'' twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, you can refer to "EMC testing of component power supplies" or contact our sales.
