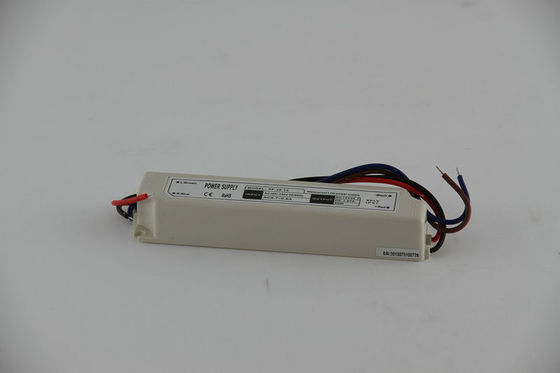

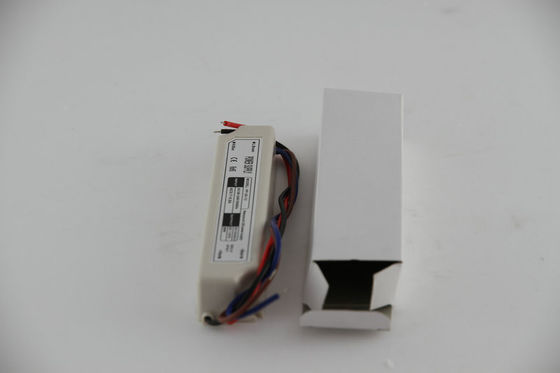

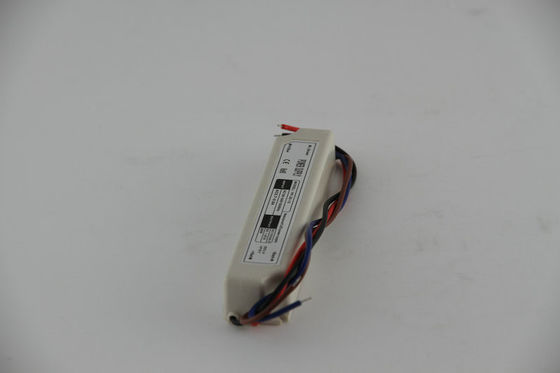

High Brightness 12V Constant Voltage LED Driver 20W Waterproof
Quick detail:
Power: 20W
Input: AC110-264V
Output: DC 12V 24V
Size: 139*30*22
Certificate: CE&ROHS
Warranty: 2 years
Description:
1. Protections :Short circuit/Overload/Over temperature
2. Cooling by free air convection
3. IP67 design for indoor or outdoor installations
4. 100% full load burn-in test
5. Suitable for LED lighting
6. Products through CE& ROHS certification
Descriptions:
|
Parameter
|

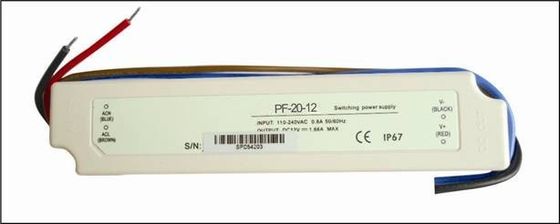

Model: PF-20
|
|
DC output voltage
|
12V±5%
|
24V±5%
|
|
Rated output current
|
1.66A
|
0.83A
|
|
Output current range
|
0-1.66A
|
0-0.83A
|
|
Ripple and Noise
|
120mVp-p
|
|
|
DC output power
|
20W
|
202
|
|
Efficiency
|
85%
|
85%
|
|
Input voltage range
|
110-240V AC
|
|
Short-circuit protection
|
Damage free short-circuit protection 3 times or more with automatic restoration
|
|
Overload protection
|
105-150% hiccup with automatic restoration
|
|
Temp.coefficient
|
±0.03%℃ ( 0-40℃ )
|
|
Voltage tolerance
|
Input-output range: 1.5KvAC
|
|
Working environmental temp.
|
-10℃~+40℃
|
|
Waterproof grade
|
IP67
|
|
Input frequency range
|
47Hz~63Hz
|
|
Storage temperature
|
-20℃~+85℃
|
|
Dimension
|
139*30*22mm
|
|
weight
|
0.16 kg
|
Features:
1. Constant voltage design
2. Universal AC input/Full range
3. Withstand 300VAC surge input for 5 seconds
4. Epoxy encapsulated with IP67 level
5. Protections:Short circuit/Overload/Over voltage
6. Cooling by free air convection
7. Small and compact size
8. Fully isolated plastic case
9. Suitable for LED lighting and moving sign applications
10. 100% full load burn-in test
11. Low cost,high reliability
12. 2 years warranty
300 VAC 3A 36W Constant Voltage Waterproof LED Driver Full Range For CCTV Camera
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
Quality assurance:
Delivery:
