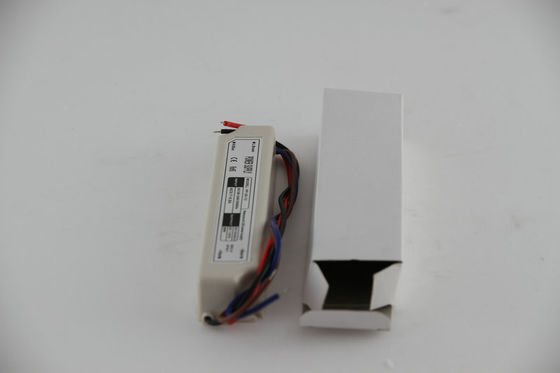

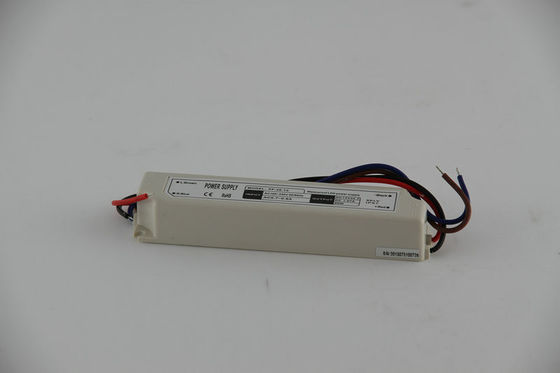

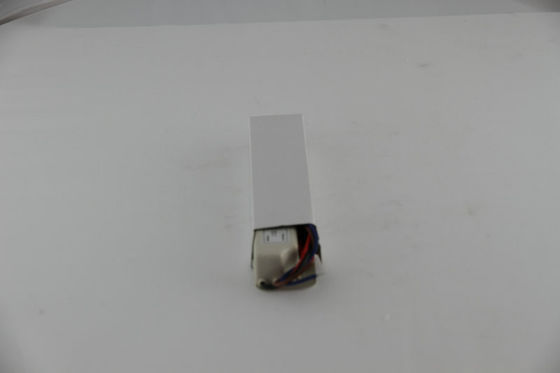

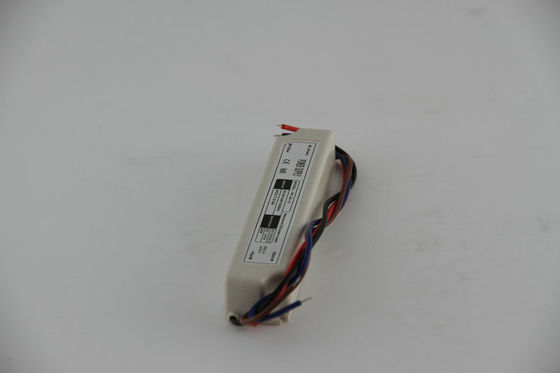

Single Output 20W Constant Voltage LED Driver Waterproof ,24V 12V LED Driver

Single Output 20W Constant Voltage LED Driver Waterproof ,24V 12V LED Driver

  • Single Output 20W Constant Voltage LED Driver Waterproof ,24V 12V LED Driver
  • Single Output 20W Constant Voltage LED Driver Waterproof ,24V 12V LED Driver
  • Single Output 20W Constant Voltage LED Driver Waterproof ,24V 12V LED Driver
  • Single Output 20W Constant Voltage LED Driver Waterproof ,24V 12V LED Driver
  • Single Output 20W Constant Voltage LED Driver Waterproof ,24V 12V LED Driver
Single Output 20W Constant Voltage LED Driver Waterproof ,24V 12V LED Driver
جزئیات محصول:
Place of Origin: China
نام تجاری: DongDaHua
گواهی: CE,RoHS

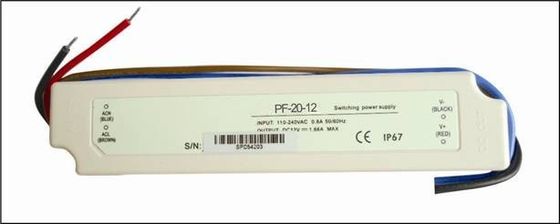

Model Number: PF-20-12
پرداخت:
Minimum Order Quantity: 10
قیمت: /
Packaging Details: as for your requirement
Delivery Time: as per your order quantity
Payment Terms: TT,paypal
Supply Ability: 4000pcs/Day
مخاطب
توضیحات محصول جزئیات
Product Name: Constant Voltage LED Driver DC output power: 20W
Input voltage range: 110-240V AC Waterproof grade: IP67
Input frequency range: 47Hz~63Hz DC output voltage: 12V 24V
برجسته:

waterproof led driver, constant voltage led drivers

,

constant voltage led drivers

High Brightness 12V Constant Voltage LED Driver 20W Waterproof



Quick detail:

Power: 20W

Input: AC110-264V

Output: DC 12V 24V

Size:  107*50*25

Certificate: CE&ROHS

Warranty: 2 years



Description:

1. Protections :Short circuit/Overload/Over temperature

2. Cooling by free air convection

3. IP67 design for indoor or outdoor installations

4. 100% full load burn-in test

5. Suitable for LED lighting

6. Products through CE& ROHS certification

7. Two years warranty





Descriptions:





Parameter

Model: PF-20

DC output voltage

12V±5%

24V±5%

Rated output current

1.66A

0.83A

Output current range

0-1.66A

0-0.83A

Ripple and Noise

120mVp-p



DC output power

20W

202

Efficiency

85%

85%

Input voltage range

110-240V AC

Short-circuit protection

Damage free short-circuit protection 3 times or more with automatic restoration

Overload protection

105-150% hiccup with automatic restoration

Temp.coefficient

±0.03%℃ ( 0-40℃ )

Voltage tolerance

Input-output range: 1.5KvAC

Working environmental temp.

-10℃~+40℃

Waterproof grade

IP67

Input frequency range

47Hz~63Hz

Storage temperature

-20℃~+85℃

Dimension

139*30*22mm

weight

0.16 kg

Features:

* constant voltage design
* Universal AC input/Full range
* Withstand 300VAC surge input for 5 seconds
* Protections:Short circuit/Overload/Over voltage
* Cooling by free air convection
* Small and compact size
* Fully encapsulated with IP67 level(Note.7)
* Fully isolated plastic case
* Suitable for LED lighting and moving sign applications
* 100% full load burn-in test
* Low cost,high reliability
* 2 years warranty



Brightness 12V 24V 20W Constant Voltage LED Driver /  Waterproof 12v LED Driver

Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

Quality assurance:

Single Output 20W Constant Voltage LED Driver Waterproof ,24V 12V LED Driver 0




Delivery:


Single Output 20W Constant Voltage LED Driver Waterproof ,24V 12V LED Driver 1
