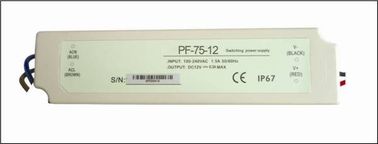

Mini 75W 60Hz Constant Voltage LED Driver 240V AC , 300VAC High Voltage LED Driver

جزئیات محصول:

Place of Origin:	China
نام تجاری:	DongDaHua
گواهی:	CE,RoHS
Model Number:	PF-75-12

پرداخت:

Minimum Order Quantity:	10
قیمت:	/
Packaging Details:	as for your requirement
Delivery Time:	as per your order quantity
Payment Terms:	TT,paypal
Supply Ability:	4000pcs/Day

مخاطب

توضیحات محصول جزئیات

Product Name:	Constant Voltage LED Driver	DC output power:	75W
DC output voltage:	12V 24V	Input voltage range:	110-240V AC
Waterproof grade:	IP67	Input frequency range:	47Hz~63Hz
برجسته:	12 volt led driver, waterproof led driver , waterproof led driver

Small Compact Constant Voltage LED Driver 75W Suitable For LED Lighting

Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

Mini 75W 60Hz Constant Voltage High Voltage LED Driver 240V AC , Automatic Restoration

Features:

* constant voltage design
* Universal AC input/Full range
* Withstand 300VAC surge input for 5 seconds
* Epoxy encapsulated with IP67 level
* Protections:Short circuit/Overload/Over voltage
* Cooling by free air convection
* Small and compact size
* Fully isolated plastic case
* Suitable for LED lighting and moving sign applications
* 100% full load burn-in test
* Low cost,high reliability
* 2 years warranty

Mini 75W 60Hz Constant Voltage LED Driver 240V AC , 300VAC High Voltage LED Driver 0

Descriptions:

Parameter	Model: PF-75
DC output voltage	12V±5%	24V±5%
Rated output current	6.25A	3.13A
Output current range	0-6.25A	0-3.13A
Ripple and Noise	120mVp-p
DC output power	75W	75W
Efficiency	85%	85%
Input voltage range	110-240V AC
Short-circuit protection	Damage free short-circuit protection 3 times or more with automatic restoration
Overload protection	105-150% hiccup with automatic restoration
Temp.coefficient	±0.03%℃ ( 0-40℃ )
Voltage tolerance	Input-output range: 1.5KvAC
Working environmental temp.	-10℃~+40℃
Waterproof grade	IP67
Input frequency range	47Hz~63Hz
Storage temperature	-20℃~+85℃
Dimension	1784432mm
weight	0.43 kg
