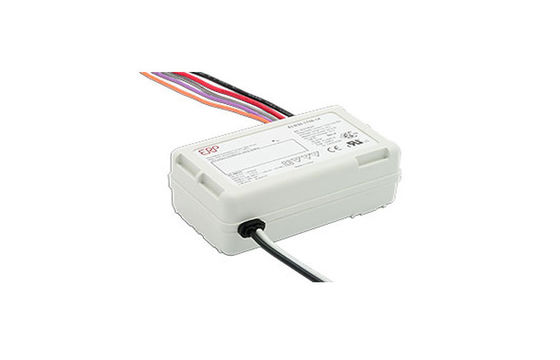

Constant Current LED Drivers LED Light Accessories with 0-10 V Dimming

Constant Current LED Drivers LED Light Accessories with 0-10 V Dimming

Constant Current LED Drivers LED Light Accessories with 0-10 V Dimming

جزئیات محصول:

Place of Origin: Guangdong,China
نام تجاری: ERP
گواهی: CE, ROHS
Model Number: ERP020/030/040 Series

پرداخت:

Minimum Order Quantity: 100PCS
قیمت: Negotiable
Packaging Details: Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs per month
اکنون تماس بگیرید
توضیحات محصول جزئیات
Power: 20W/30W/40W Nominal Input: 120/230/277 Vac
Power Factor: ≥ 0.9 Output voltage: 7.5 V to 112 V
Output current: 350 mA to 1.75 A Size: 70 x 40 x 27 mm

Constant-Current LED Drivers with 0-10 V Dimming





Features

  • Highest power density in the market
  • Very high efficiency: ≥ 90%
  • Wide 120/230/277 Vac nominal input
  • Active power factor correction (PF)≥0.9
  • 0 – 10 V secondary low voltage dimming
  • 10% to 100% dimmable output
  • Output current: 350 mA to 1.75 A (see List of Models for details) with ±5% accuracy of set point
  • Output voltage: 7.5 V to 112 V (see List of Models for details)
  • Short circuit, over-current, over-voltage, and over-temperature protection with auto-recovery
  • Conducted and radiated EMI: FCC part 15 class B and EN55015 class B compliant
  • Enables ENERGY STAR® luminaire compliance
  • Very small rectangular plastic case: 70 x 40 x 27 mm (2.76 x 1.40 x 1.06 in)
  • IP64-rated case with silicone-encapsulation
  • 90°C maximum case temperature
  • 50,000 hours lifetime at 70°C case temperature
  • Class II power supply
  • Worldwide safety approvals





Applications

  • Commercial lighting & residential lighting
  • Architectural lighting
  • Tunnels and street lighting
  • Wide-area downlights





120/230/277 Vac Nominal Input Voltage

ERP Part Number
Nominal Input Voltage Range (Vac)
Iout Set Point +/-5% (mA)
Max Output Power (W)
Output Voltage Range (Vdc)
10 to 20 W
ERP020W-0350-28 120 - 277 350 9.8 21 - 28
ERP020W-0350-42 120 - 277 350 14.7 31.5 - 42
ERP020W-0350-54.5 120 - 277 350 19.075 41 - 54.5
ERP020W-0440-23.5 120 - 277 440 10.34 17.5 - 23.5
ERP020W-0440-34 120 - 277 440 14.96 26 - 34
ERP020W-0450-42 120 - 277 450 18.9 31.5 - 42
ERP020W-0700-23.5 120 - 277 700 16.45 17.5 - 23.5
ERP020W-0720-24.5 120 - 277 720 16.92 18 - 24.5
21 to 30 W
ERP030W-0500-42 120 - 277 500 21 31.5 - 42
ERP030W-0550-42 120 - 277 550 23.1 31.5 - 42
ERP030W-0600-42 120 - 277 600 25.2 31.5 - 42
ERP030W-0700-32 120 - 277 700 22.4 22.5 - 32
ERP030W-0700-35 120 - 277 700 24.5 26 - 35
ERP030W-0700-38.5 120 - 277 700 26.95 29 - 38.5
ERP030W-0700-42 120 - 277 700 29.4 31.5 - 42
ERP030W-0900-27 120 - 277 900 24.3 20 - 27
ERP030W-1400-21 120 - 277 1400 29.4 16 - 21
31 to 40 W
ERP040W-0700-45.5 120 - 277 700 31.9 34 - 45.5
ERP040W-0700-54.5 120 - 277 700 38.2 41 - 54.5
ERP040W-0800-42 120 - 277 800 33.6 31.5 - 42
ERP040W-0850-42 120 - 277 850 35.7 31.5 - 42
ERP040W-0850-45.5 120 - 277 850 38.7 34 - 45.5
ERP040W-0900-42 120 - 277 900 37.8 31.5 - 42
ERP040W-1000-31.5 120 - 277 1000 31.5 23.5 - 31.5
ERP040W-1050-38 120 - 277 1050 39.9 28.5 - 38
ERP040W-1150-28 120 - 277 1150 32.2 21 - 28
