gaoxin بخش پارک صنعتی، GUANGMING جدید منطقه، شهر شنژن، استان گوانگدونگ، چین | Angelwang66@126.com |
Place of Origin: | China |
نام تجاری: | Meanwell |
گواهی: | CE,ROHS, TUV, UL |
Model Number: | SE-450 Single Output Switching Power Supply |
Minimum Order Quantity: | Negotiable |
---|---|
قیمت: | Negotiable |
Packaging Details: | Export Standard Packaging |
Delivery Time: | 5-7 work days after receiving deposit |
Payment Terms: | Ex works |
Supply Ability: | 30000pcs/month |
DIMENSION: | 225*124*50mm (L*W*H) | Protections: | Short circuit / Overload / Over voltage / Over temperature |
---|---|---|---|
PACKING: | 1.25Kg;12PCS/16Kg/1CUFT | Over voltage protection: | 115%~145% |
EMC EMISSION: | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 | DC Voltage: | 3.3V, 5V, 12V, 15V, 24V, 36V, 48V |
Overload protection: | 105%~150% Shut down o/p voltage, repower on to recover | Warranty: | 2 Years |
برجسته: | high power led power supply,LED Light Power Supply,LED Light Power Supply |

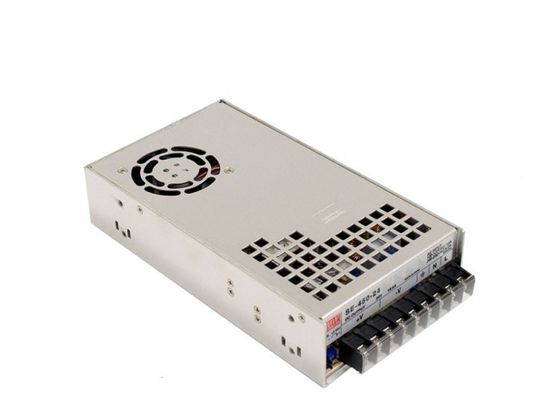

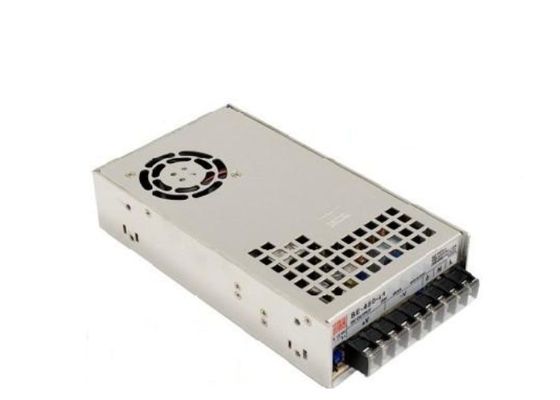

Meanwell SE-450 AC DC LED Power Supply 12V 24V Constant Voltage LED Driver
Enclosed SE Series 100w-450w Miniature Features:
1. AC input selectable by switch
2. Withstand 300VAC surge input for 5 seconds (SE-200/350)
3. Protections: Short circuit / Overload / Over voltage / Over temperature (except for SE-100)
4. Forced air cooling by built-in DC fan (SE-350/450)
5. Built-in fan ON/OFF control (SE-350)
6. Built-in constant current limiting circuit (SE-200/350)
7. Withstand 5G vibration test (SE-200/350)
8. Built-in remote sense function (SE-450)
9. 100% full load burn-in test
10. LED indicator for power on
11. 2 years warranty
SE Series SE-350 Single Output Switching Power Supply Features:
1. AC input active surge current limiting
2. AC input range selected by switch
3. Protections: Short circuit / Overload / Over voltage / Over temperature.
4. Forced air cooling by built-in DC ball bearing fan
5. Built-in remote sense function
6. LED indicator for power on
7. UL approved
9. 2 years warranty
Enclosed Switching Power Supplies
SE Series:
Single Output Switching Power Supply: SE-100, SE-200, SE-350, SE-450, SE-600, SE-1000, SE-1500
Quick Details of 450w Single Output LED Switching Power Supply:
450W-Single Output | ||||
Model No. | Output | Tol. | R&N | Effi. |
SE-450-3.3 | 3.3V, 0~75A | ±3% | 200mV | 74% |
SE-450-5 | 5V, 0~75A | ±3% | 200mV | 78% |
SE-450-12 | 12V, 0~37.5A | ±1% | 200mV | 83% |
SE-450-15 | 15V, 0~30A | ±1% | 200mV | 84% |
SE-450-24 | 24V, 0~18.8A | ±1.5% | 200mV | 86% |
SE-450-36 | 36V, 0~12.5A | ±1% | 200mV | 86% |
SE-450-48 | 48V, 0~9.4A | ±1% | 200mV | 88% |
SE Series 100w to 450w Specfications:
Model No. | SE-100 | SE-200 | SE-350 | SE-450 | |
AC input voltage range |
115/230VAC by switch | ||||
AC inrush current (max.) |
Cold start, 36A at 230VAC |
Cold start, 55A at 230VAC |
Cold start, 60A at 230VAC |
Cold start, 55A at 230VAC |
|
DC adjustment range |
-5%~+10% rated output voltage |
±10% rated output voltage |
|||
Overload protection |
Range | 110%~150% | 105%~150% | 105%~135% | 105%~150% |
Type | Hiccup mode, auto-recovery |
Constant current limiting, auto-recovery |
Shut down o/p voltage, repower on to recover |
||
Over voltage protection |
115%~135% | 115%~145% | |||
Withstand voltage |
I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P-FG: 0.5kVAC | ||||
Working temperature |
-20~+60°C | -20~+60°C | -20~+60°C |
-10~+60°C (refer to output derating curve) |
|
Safety standards |
UL60950-1, GB4943(SE-100 only) approved | ||||
EMC standards |
EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 for SE-100 only |
||||
Connection |
7P/9.5mm pitch terminal block 9P/9.5mm pitch terminal block with cover 9P/11mm pitch terminal block with cover |
||||
Dimension (LxWxH)(mm) |
159x 97x 38 | 215x 115x 50 | 225x 124x 50 | ||
Case No. | 901 | 912E | 912C | 986A | |
Packing | 30pcs/17.5kg | 12pcs/12kg | 12pcs/13.5kg | 12pcs/16kg |
NOTE:
1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
SE-450 Series Datasheet:
SE Series SE-450 Models Available:
NES-450-3.3
NES-450-5
NES-450-12
NES-450-15
NES-450-24
NES-450-36
NES-450-48
