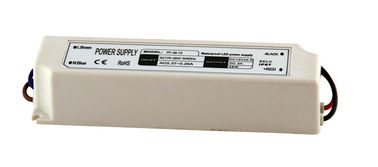

Single Output LCD Display Constant Voltage LED Driver 36W With Automatic Restoration

جزئیات محصول:

Place of Origin:	China
نام تجاری:	DongDaHua
گواهی:	CE,RoHS
Model Number:	PF-36-12

پرداخت:

Minimum Order Quantity:	10
قیمت:	/
Packaging Details:	as for your requirement
Delivery Time:	as per your order quantity
Payment Terms:	TT,paypal
Supply Ability:	4000pcs/Day

مخاطب

توضیحات محصول جزئیات

برجسته:

12 volt led driver, constant voltage led drivers

constant voltage led drivers

Single Output LCD Display Constant Voltage LED Driver 36W With Automatic Restoration

Quick detail:

Power: 20W
Input: AC170-264V
Output: DC 12V
Size: 139*30*20(mm)
Certificate: CE&ROHS
Warranty: 2 years

Description:

1. Protections :Short circuit/Overload/Over temperature

2. Cooling by free air convection

3. IP67 design for indoor or outdoor installations

4. 100% full load burn-in test

5. Suitable for LED lighting

6. Products through CE& ROHS certification

7. Two years warranty

Single Output LCD Display Constant Voltage LED Driver 36W 3A For Moving Sign

Descriptions:

Parameter	Model: PF-36
DC output voltage	12V±5%	24V±5%
Rated output current	3A	1.5A
Output current range	0-3A	0-1.5A
Ripple and Noise	120mVp-p
DC output power	36W	36W
Efficiency	85%	85%
Input voltage range	110-240V AC
Short-circuit protection	Damage free short-circuit protection 3 times or more with automatic restoration
Overload protection	105-150% hiccup with automatic restoration
Temp.coefficient	±0.03%℃ ( 0-40℃ )
Voltage tolerance	Input-output range: 1.5KvAC
Working environmental temp.	-10℃~+40℃
Waterproof grade	IP67
Input frequency range	47Hz~63Hz
Storage temperature	-20℃~+85℃
Dimension	1514230mm
weight	0.28 kg

Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

Quality assurance:

Single Output LCD Display Constant Voltage LED Driver 36W With Automatic Restoration 0
