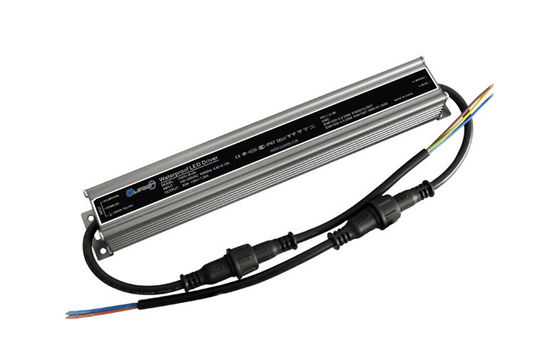

Waterproof Ip67 Constant Voltage LED Driver Circuit 40w DC 15V

Waterproof Ip67 Constant Voltage LED Driver Circuit 40w DC 15V

Waterproof Ip67 Constant Voltage LED Driver Circuit 40w DC 15V

جزئیات محصول:

Place of Origin: Guangdong China (Mainland)
نام تجاری: QUAWIN / OEM
گواهی: CE,ROHS

پرداخت:

Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: Netural labels,Antistatic bag /white box and standard export carton/customized Netrual packing/Cartoon box with less than 10KGS
Delivery Time: samples within 5 days,15 days for bulk orders
Payment Terms: L/C, D/A,D /P, T/T, Western Union, MoneyGram, Escrow, Paypal
Supply Ability: 500000 Piece/Pieces per Month
اکنون تماس بگیرید
توضیحات محصول جزئیات
Rated Power: 40W Rated Voltage: DC 15V
Application: Led strips, led down lights IP Rating: IP67
name: Waterproof Led Driver گواهی: UL, ROHS, CE





Waterproof Ip67 Constant Voltage LED Driver Circuit 40w DC 15V



Quick Detail:



1. High efficiency 89%

2. Low cost, high reliability

3. Full range 90~264VAC

4. Protections:

   . Short-circuit

   . Over-load

   . Over-voltage

   . Over-temperature

5. Working temperature : -40℃ ~ + 70℃

6. IP67 design for indoor and outdoor applications

7. 2~3 times burn-in tests (+50℃/-40℃ at full load with over 14 hours)





Application



Led strips, led landscape lights, led down lights, led electronics display screen……etc





Specification Sheet

Model

QW150-026-AW (Note 1)



Output

Rated Voltage

15VDC

Ouput Current Range

0 ~ 2.6A

Rated Power

40W

Ripple and Noise (Max)(Note 2)

150mVp-p

Voltage Tolerance

±3.0%

Line Regulation

±1%

Load Regulation

±1.0%

Set-up, Rise Time

1500ms 80ms/230VAC, 2000ms 80ms/110VAC

Hold-up Time

50ms/230VAC at full load, 25ms/110VAC at full load





Input

Voltage Range

90~264VAC

Frequency Range Efficiency(Note 3)

47~63Hz

86.0%

AC Current

0.50A ~ 0.17A

Inrush Current

Cold Start at 45A/230VAC, Input at Ta: 25℃ cold start.

Leakage Current

﹤0.5mA at 230VAC, 60Hz Input





Protection

Current protection

±1% (current limiting type) Constant current limit, recovers after faulty problem
is removed

Over-Voltage

110% ~ 130%  (Shut down O/P voltage, repower on to recover)

Over-load

130% ~ 150%  (Shut down O/P voltage, repower on to recover)

Short Circuit

Hiccup mode, recovers automatically after faulty problem is removed

Lightning Protection
(Alternative)

Gas discharge tube automatically open to discharge, repower on to recover

Over-temperature

85℃±10℃ (Shut down O/P voltage, re-power on to recover)





Environment

Working Environment(Note 4)

-40℃ ~ +70℃

Working Humidity

20~90% RH non-condensing

Storage Environment &
Humidity

-45℃~+80℃

TEMP. Coefficient

±0.05%℃ (0~50℃)

Vibration

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes





Safety & EMC

Safety Standards

EN-61347-1, EN61347-2-13, IP67, ROHS Tests, Design refer to UL8750

Withstand Voltage

I/P-O/P: 3KVAC, IP-FG:1.5KVAC, OP-FG: 500VAC

Isolation Resistance

I/P-O/P IP-FG OP-FG: 100M Ohms/500VDC / 25℃ / 70% RH

EMC Emission

Compliance to EN55015: 2007, EN61547:1995+A1:2000; EN61000-3-2: 2006;
EN61000-3-3: 2008

EMC Immunity

Compliance to EN55015 EN61547 EN61000-4-2,3,4,5,6,8,11





Others

Life Span(Note 5)

≥50000Hrs (25~30℃)

No Load power consumption

≤1.0W

MTBF(Note 6)

250K hrs min, MIL-HDBK-217F (25℃ )

Dimension(Note 7)

248*36*29 mm (L*W*H)

Packing    (Note 8)

40pcs/carton

Weight

0.4Kg/pcs / 40pcs/CTN









Notes

All parameter are measured at normal temperature (+25 ~ +28℃)

1.  The rated voltage can be customized, such as 18V/27V… can be customized

2.  Ripple & Noise are measured at 20KHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf &
47uf parallel capacitor (at full load)

3. The efficiency measured at Max output voltage, and 230VAC with full load, if with 110VAC the efficiency
will be lowered 1% ~ 2%; Working 1~2 hours,efficiency will be higher 0.5% ~ 1% than the initial stage

4.  This series can work -45 ~ -50℃ (at full load), if need related parameter contact us.

5.  This measured at 120VAC, 80% ~85% load with environmental temperature about +25℃~+30℃, the outer housing temperature with +55℃ or so.

6.  This measured at 120VAC, 80% ~85% load with environmental temperature about +25℃~+30℃, the outer housing temperature with +55℃ or so.

7.  More details see the following mechanical draft.

8.  The 18pcs packing method is not suitable for led drivers with waterproof connector





Mechanical Specification



Waterproof Ip67 Constant Voltage LED Driver Circuit 40w DC 15V





Block Diagram



Waterproof Ip67 Constant Voltage LED Driver Circuit 40w DC 15V

Derating Curve                                                                                                                           Static Characteristics



Waterproof Ip67 Constant Voltage LED Driver Circuit 40w DC 15V





Efficiency & Load of (24V) (110VAC / 230VAC)



Waterproof Ip67 Constant Voltage LED Driver Circuit 40w DC 15V
