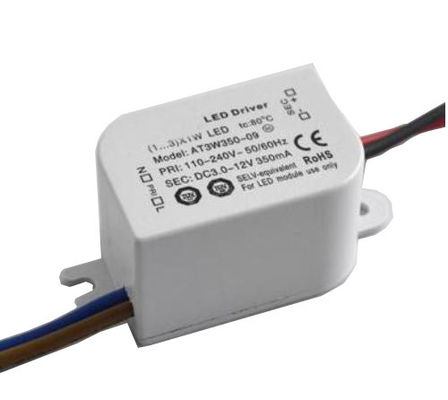

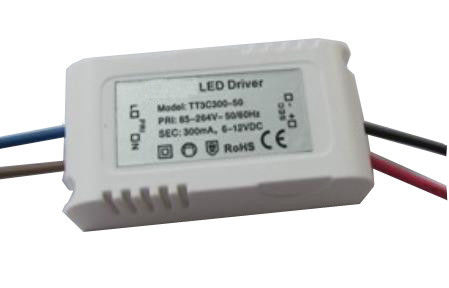

3W / 5W Low Power Constant Voltage Led Driver 12V EN 61347-1 420mA
Short Features :
> Output type : constant voltage
> input voltage range : 100~240VAC
> output : 12V 250mA 3W / 12V 420mA max 5W
> Ripple and Noise : 100mV maximum
> Effiency : 85% minimum
> PF : >0.95
> IP rate : IP65
> Net Weight : 120g
> Dimension : 40(H)*27(W)*22(H)mm
> Certificate : CE , ROHS , C-tick , FCC , UL certificates.
> Safety protection : over load, over voltage, short ciruict, open load protection.
Specifications
|
Input Rated Voltage :
|
100Vac~240Vac
|
|
Input Frequency Range:
|
47Hz~63Hz
|
|
Input Inrush Current :
|
1.8A max
|
|
Efficiency :
|
85%(MIN)at Rated Voltage
|
|
Output:
|
12V 250mA 3W / 12V 420mA max
|
|
Output power :
|
3W / 5W
|
|
Ripple and Noise :
|
<150Mv at full road with 20MHz bandwidth
|
|
Turn On Delay Time:
|
<3S (AC:110V and full load)
|
|
Safety protection :
|
over voltage and current protection.
|
|
Leakage Current:
|
<5mA
|
|
Output typer:
|
Constant voltage
|
|
Operating Temperature:
|
0°C----+60°C
|
|
Storage Temperature:
|
-20°C----+85°C
|
|
Certificate:
|
CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK
|
|
Safety Standard :
|
EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006
|
|
Application:
|
For led light, led strip, led down light etc….
|
MODEL LIST :
|
CONSTANT VOLTAGE LED DRIVER
|
|
Model
|
Input Voltage
|
Output Power
|
Output Voltage
|
Output Current
|
Power Factor
|
Dimension
(mm)
|
|
SW-AT3W250-12
|
100-240V
|
3W
|
12VDC
|
250mA
|
0.95
|
40*28*22
|
|
SW-AT5W400-12
|
5W
|
12VDC
|
420mA
|
|
SW-AT6U12-41
|
100-240V
|
6W
|
12VDC
|
500mA
|
0.95
|
48*28*22
|
|
SW-AT6U24-41
|
24VDC
|
240mA
|
|
SW-AT9U12-41
|
100-240V
|
9W
|
12VDC
|
750mA
|
0.95
|
48*28*22
|
|
SW-AT9U24-41
|
12VDC
|
375mA
|
|
SW-AT12U12-41
|
100-240V
|
12W
|
12VDC
|
1.0 A
|
0.95
|
48*28*22
|
|
SW-AT12U24-41
|
24VDC
|
500mA
|
|
SW-AT15U12-02
|
100-240V
|
15W
|
12VDC
|
1.25A
|
0.95
|
115*45*28
|
|
SW-AT15U24-02
|
12VDC
|
630mA
|
|
SW-AT18U12-02
|
100-240V
|
18W
|
12VDC
|
1.0 A
|
0.95
|
115*45*28
|
|
SW-AT18U24-02
|
24VDC
|
500mA
|
|
SW-AT21U12-01
|
100-240V
|
21W
|
12VDC
|
1.75A
|
0.95
|
140*45*28
|
|
SW-AT21U24-01
|
12VDC
|
0.87A
|
|
SW-AT24U12-02
|
100-240V
|
24W
|
12VDC
|
2.0 A
|
0.95
|
140*45*28
|
|
SW-AT24U24-02
|
24VDC
|
1.0 A
|
|
SW-AT27U12-02
|
100-240V
|
27W
|
12VDC
|
2.25A
|
0.95
|
140*45*28
|
|
SW-AT27U24-02
|
12VDC
|
1.12A
|
|
SW-AT30U12-02
|
100-240V
|
30W
|
12VDC
|
2.5 A
|
0.95
|
140*45*28
|
|
SW-AT30U24-02
|
24VDC
|
1.25 A
|
|
SW-AT33U12-02
|
100-240V
|
33W
|
12VDC
|
2.75A
|
0.95
|
140*45*28
|
|
SW-AT33U24-02
|
12VDC
|
1.4A
|
Applications :
For led light, led strip, led down light etc….
INSTRUCTION :
-For indoor application
-The mains plug is used as the disconnect device, the disconnect device shall be readily operable.
-The socket-outlet shall be installed near the equipment and shall be easily accessible.
-No naked flame source, such as lighted candles, should be placed on the apparatus.
-Maximum operating ambient for the equipment is 40℃.
-The apparatus should not be used in a confined space such as a bookcase.
-This appliance is not intended for use by persons (including children) with reduced physical,
sensory, or mental capacities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their Safety.
-Children should be supervised to ensure that they do not play with the appliance.
