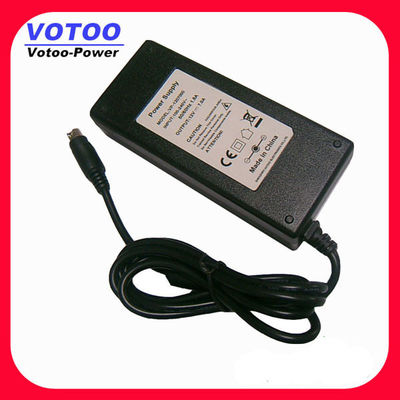

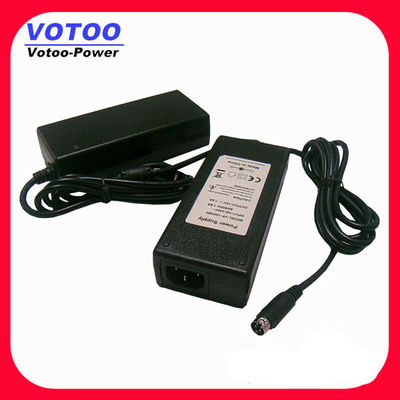

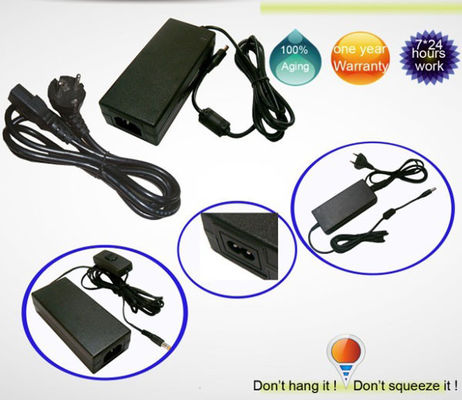

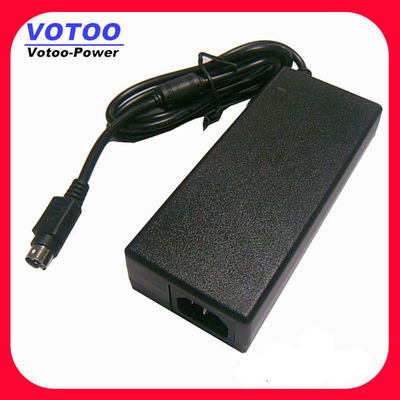

7A IP20 Plastic Slim Switching 12V Power Adapter For Laptop , Notebook Power Adapters
Quick Detail:
Description:
Features:
o Universal Input 100~240VAC 50/60Hz
o Small volume, light weight, high efficiency.
o Cooling by free air convection.
o 100% Full load burn-in test.
o One year warranty.
o Output Voltage: 12V
o Output Current: 7A
o Power: 84Watt
o Ripple & Noise: 1% of Output Voltage
o Leakage Current: 0.25mA
o No load power Consumption
o Working Temperature:0-40°C Max
o Efficiency:86%Min
Protections
1)over voltage protection: 120%min
2)over current protection: 120%min
3)over protection
4Short-circuit protection: automatic recovery
5Load regulation: ±5%
Environmental requirement
1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum)
5Insulation resistance: DC 500V 100MΩ (minimum)
Weight: 380g
Dimensions: 140*60.5*34.5mm
1. AC input power suitable for the world2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
6. Installed with EMI filter ,minimum wave
Specification:
OUTPUT |
DC VOLTAGE |
12V |
OUTPUT POWER |
84W |
|
CURRENT RANGE |
7A |
|
INPUT |
VOLTAGE RANGE |
110VAC -264V AC |
FREQUENCY RANGE |
50-60Hz |
|
EFFICIENCY(Typ.) |
86% |
|
ENVIRONMENT |
WORKING TEMP. |
-0°C ~ +40°C (Refer to output load derating curve) |
STORAGE TEMP.,HUMIDITY |
-10°C ~ +70°C 10~95% RH |
|
COOLING METHOD |
BY FREE AIR CONVECTION |
How to Install?
Applications:
1. CCTV security, door access, digital camera, etc.
2. POS machine, mini printing machine, etc.
3. Electronic scale, flowerpot etc.
4. LED strip, LED lighting etc.
