12VDC 300W CCTV Power Supplies 50Hz / 60Hz For IP Cameras , EN55011 Class B

12VDC 300W CCTV Power Supplies 50Hz / 60Hz For IP Cameras , EN55011 Class B

    • 12VDC 300W CCTV Power Supplies 50Hz / 60Hz For IP Cameras , EN55011 Class B
    • 12VDC 300W CCTV Power Supplies 50Hz / 60Hz For IP Cameras , EN55011 Class B
    • 12VDC 300W CCTV Power Supplies 50Hz / 60Hz For IP Cameras , EN55011 Class B
    • 12VDC 300W CCTV Power Supplies 50Hz / 60Hz For IP Cameras , EN55011 Class B
  • 12VDC 300W CCTV Power Supplies 50Hz / 60Hz For IP Cameras , EN55011 Class B

    جزئیات محصول:

    Place of Origin: Shenzhen,China
    نام تجاری: RAYTOP
    گواهی: CE, RoHS, FCC
    Model Number: ETB122518

    پرداخت:

    Minimum Order Quantity: 500 Pcs
    قیمت: Negotiable

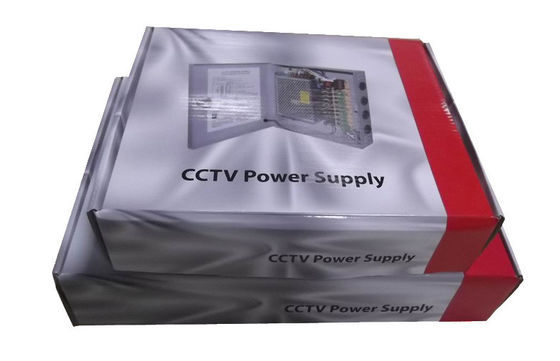

    Packaging Details: Inside white box/color box, outside master carton
    Delivery Time: 15-20 work days.
    Payment Terms: T/T, L/C
    Supply Ability: 200,000 Pcs monthly.
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    Application: CCTV Cameras, IP Cameras Approval: CE, UL
    EMI: EN55011 Class B, EN55022 Class B Feature: High Voltage, 18 Channel, LED
    Frequency: 50Hz / 60Hz Input: AC100-240V
    Output: 12VDC Product Name: CCTV Power Supplies
    Protection: Short Circuit, Over Voltage, Over Current



    12VDC 300W CCTV Power Supplies 50Hz / 60Hz For IP Cameras , EN55011 Class B





    Quick Detail:

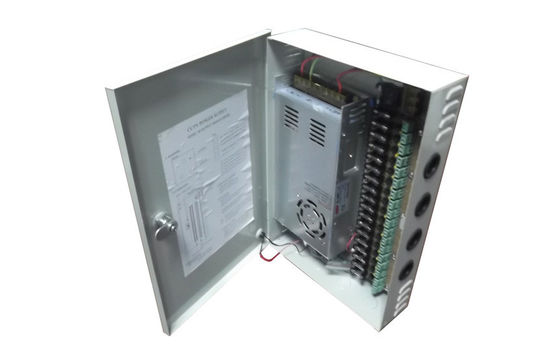

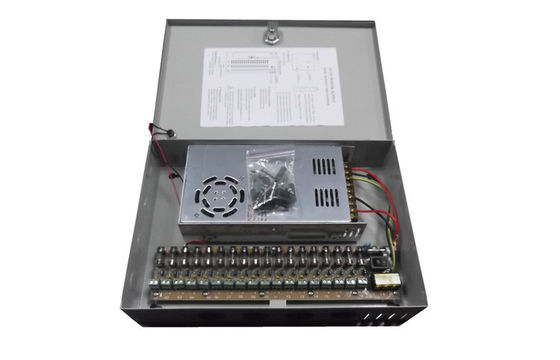

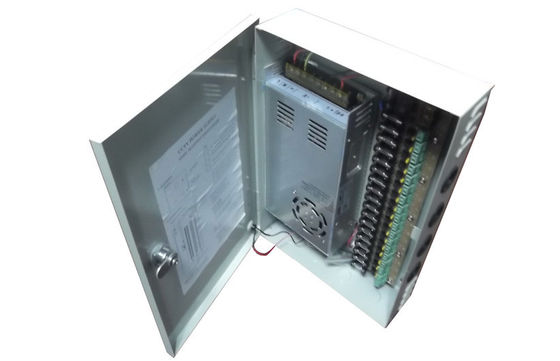

    This is metal cabinet power supply distribution box which is designed for CCTV cameras. The power supply supports AC inputs from 100V to 240V, it works in Japan to the outback of Australia without any adjustment. it comes with DC outputs 12V 25Amp. This is 18 channel power supply box, support connecting up to 18 traditional CCTV cameras.

    This is switching power supply, which regulates the energy level and ensures continuous working of the system without recharging or refueling. The 18 channel power supply box supports short circuit, over current, over temperature and over voltage protection. It's un-interrupted power system for your video surveillance cameras.

    This power supply box mainly used in video surveillance system, industry, machine equipment, LED display, telecommunication...etc





    Description:



    12VDC 25A 18CH for 18 out premium CCTV power supply unit.

    The CCTV power supply is primarily designed for WUF-GV, PTZ and camera of CCTV system. It’s also used for access, building/house control, intrude alarm and other light-current. It is for desktop or wall-mounted installation.





    Applications:



    Boxed CCTV power supply can be widely used for indoor security cameras such as IP Cameras, Wireless CCTV Cameras, DVR, Hidden Cameras etc.





    Specifications:



    Max output power

    300W

    Input

    Input Voltage

    AC100-240V

    Input Voltage Frequency

    50/60Hz

    Input Current

    Max.2.0A

    Efficiency

    >85%

    Inrush Current

    Cold Start Curren 40A/240Vac

    Leakage Current

    <1.4mA/240VAC

    Output

    Output Voltage

    DC12V

    Total Output Current

    20A(1100mA/CH, 18 Channels for 18 sets security camera)

    Output Ripple

    Noise(Vp-p)

    80mVp-p@25℃/

    Rated input voltage & Rated output load

    Fuse Type

    Glass fuse

    Fuse Rating

    2.0 Amps/250VAC

    Start time, rise time, hold on

    1000ms,30ms,50ms/240VAC.

    Protection

    Short Circuit Protection

    When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically.

    High Voltage Protection

    When over voltage occurs, it will switch to self-protection status to

    protect the load.

    Over Current Protection

    When over current occurs,

    the corresponding

    channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal.

    Circumstances

    Working Temperature

    0℃-+50℃

    Storage Temperature

    -20℃-+80℃

    RH

    20%-90%

    Heat Release

    Natural heat dissipation

    Dielectric strength

    Input to output

    1500Vac/60S  leakage current≤1.5mA

    Input to FG

    1500Vac/60S  leakage current≤2.0mA

    FG to output

    500Vac/60S   leakage current≤1.5mA

    Insulating Strength

    Input to output

    ≥20MΩ/500VDC@25℃

    RG

    ≤0.011Ω@DC8V/25A/25℃

    Safety EMC

    Safety Standards

    UI60950 EN60950

    EMI

    EN55011 class B

    EN55022 class B

    EMS Immunity

    EN55024 EN61000-6-2

    Harmonic Current

    EN61000-3-2





    Competitive Advantage:



    -100 ~ 240VAC Worldwide Input Voltage range;

    -Compact design, light weight and high efficiency;

    -Short Circuit Protection, Over Current Protection, Over Load Protection;

    -Customer design model;

    -Factory direct price w/o middle man;

    -0.3% backup of order quantity free of charge.
